LD Systems MS 828 Line Mixer / Splitter

€229,00
Incl. IVA

Shipping € 10

LD Systems MS 828 Line Mixer / Splitter está pedido al proveedor y será enviado tan pronto como llegue a nuestro almacén.

Descripción

  • 19" line mixer with 1 stereo input and 6 line signal outputs.
  • Via a switch you can choose whether the unit should be used as a signal splitter or mixer.
  • Can be used as 6 channel signal booster, 2 in 8 out splitter or 8 in 2 out mixer.
  • Electronic balanced inputs and outputs.
  • Power cord included.


LD Systems MS 828 Line Mixer / Splitter

The LD Systems LDMS828 is a mixer, splitter, and booster amplifier in 19? rack format for flexible live and studio applications.

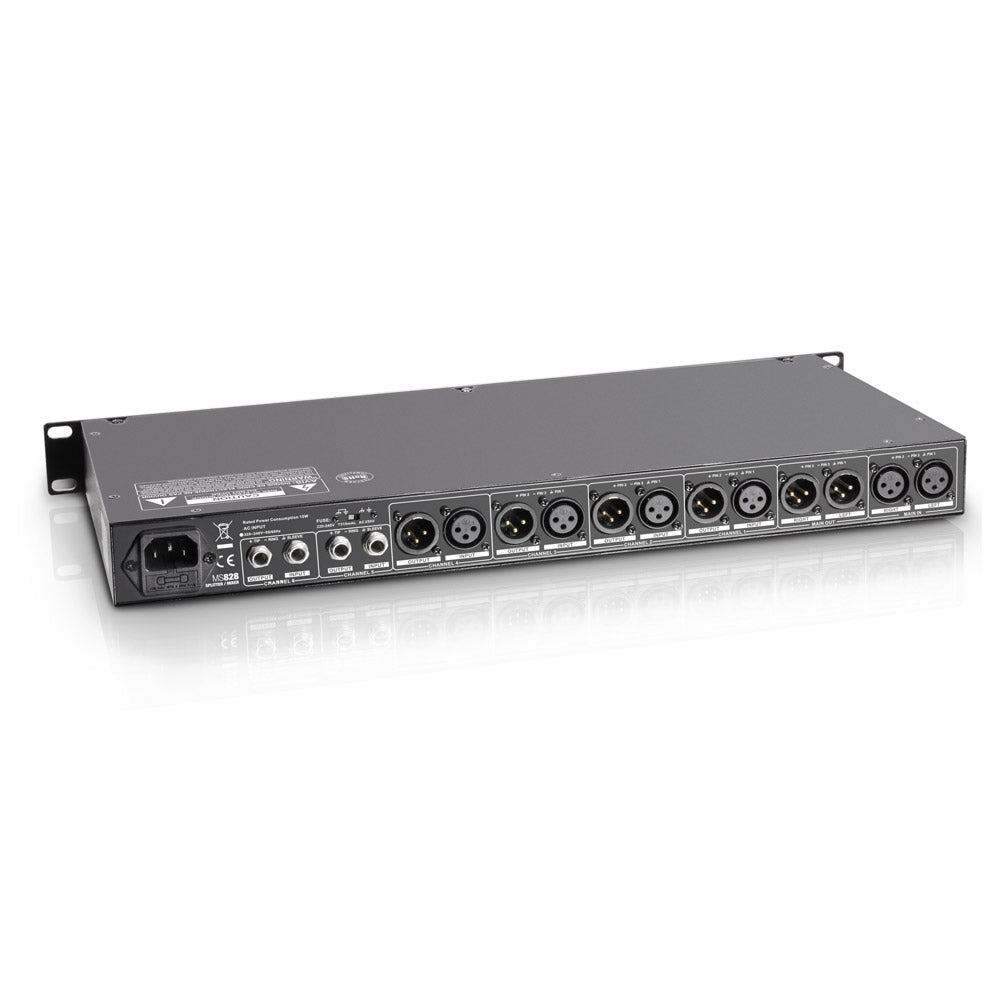

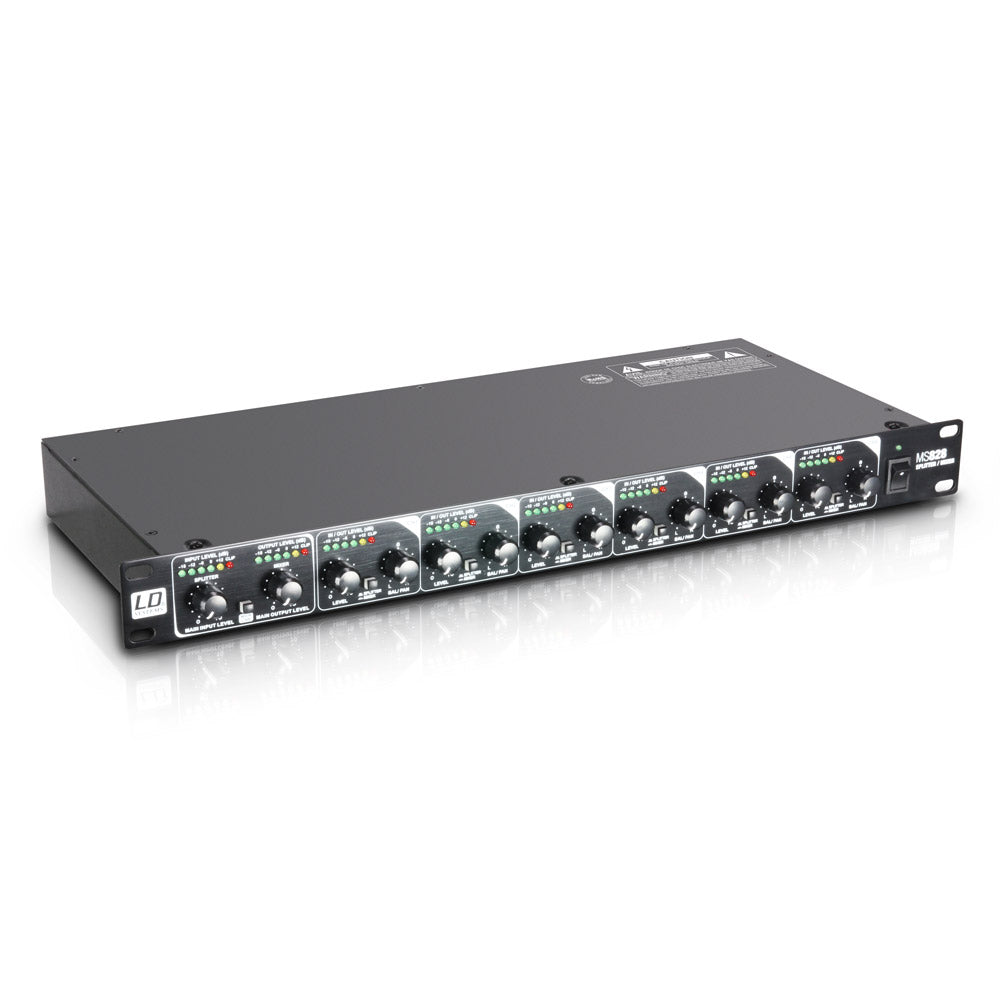

The LDMS828 has one stereo and six mono channels with individual LED level meters; all inputs and outputs are electronically balanced. Two mono channels are equipped with stereo TRS sockets, the other connectors are XLR sockets. The stereo channel has individual volume controls for input and output and a link button for looping through the signal; each mono channel has volume and panorama controls as well as a button that toggles between the splitter and mixer functions.

TheLDMS828 by LD Systems is impressive not only because of its practical features, but also because of its technical specifications. The broad frequency response of 5 - 40,000 Hz, a dynamic range of 85 dB, and the extremely low total harmonic distortion of 0.0008% guarantee maximum signal fidelity. The nominal working level of -10 dBV to +4 dBU makes the mixer/splitter suitable for connection to both professional and consumer equipment.

Also known as: MS828, MS-828

Especificaciones

  • Weight (kg)
    3

More specifications

Product number: LDMS828
Product type: Splitter/Mixer
Type: Live, Installation
Channels: 8
Mono input channels, line: 6
Mono line input connectors: 2 x 6.3 mm TS
Mono line input type: electronically balanced
Stereo Line Input Channels: 1
Stereo Line Input Connectors: 2 x XLR
Stereo Line Input Type: electronically balanced
Input impedance: (unbalanced) 25000Ohm(s), (balanced) 50000Ohm(s)
Max. input level: + 21
Nominal working level: -10 dBV - +4 dBu
Mono output channels: 6
Mono output connectors: 2 x 6.3 mm TS
Mono output type: electronically balanced
Stereo output channels: 1
Stereo output connectors: 1 x XLR
Stereo output type: electronically balanced
Output impedance: (unbalanced) 30Ohm(s), (balanced) 60Ohm(s)
Max. output level: +22
Frequency response: 5 - 40000Hz
THD: 0,0008 %
S/N Ratio: 85dB
Controls: Main Input Level, Level Channel 1-6, Main Link, Main Output Level, Power, Splitter/Mixer Channel 1-6
Display: Output Level Indicator (6-segment), In/Out Level Channel 1-6 (6 -segment), Power, Input Level LED Indicator (6-segment)
Operating voltage: 220 V AC - 240 V AC, 50-60 Hz
Mains connector: IEC power connector
Power consumption: 15W
Fuse: T 315 mAL, AC 250V
Width: 483mm
Height: 44,5mm
Depth: 216mm
Weight: 3kg
Accessories (included): Power cord

Brand: LD Systems
SKU: LDS-LDMS828
Barcode: 4049521154973
