Yamaha MG10 mixer
€222,00
Precio por unidad
/
No disponible
Descripción
Descripción
- 10-channel mixer with phantom power
- D-PRE mic preamps with operational amplifiers
- 1-button compressors
- 3-band EQ and high pass filters
- Wide range of input and output options

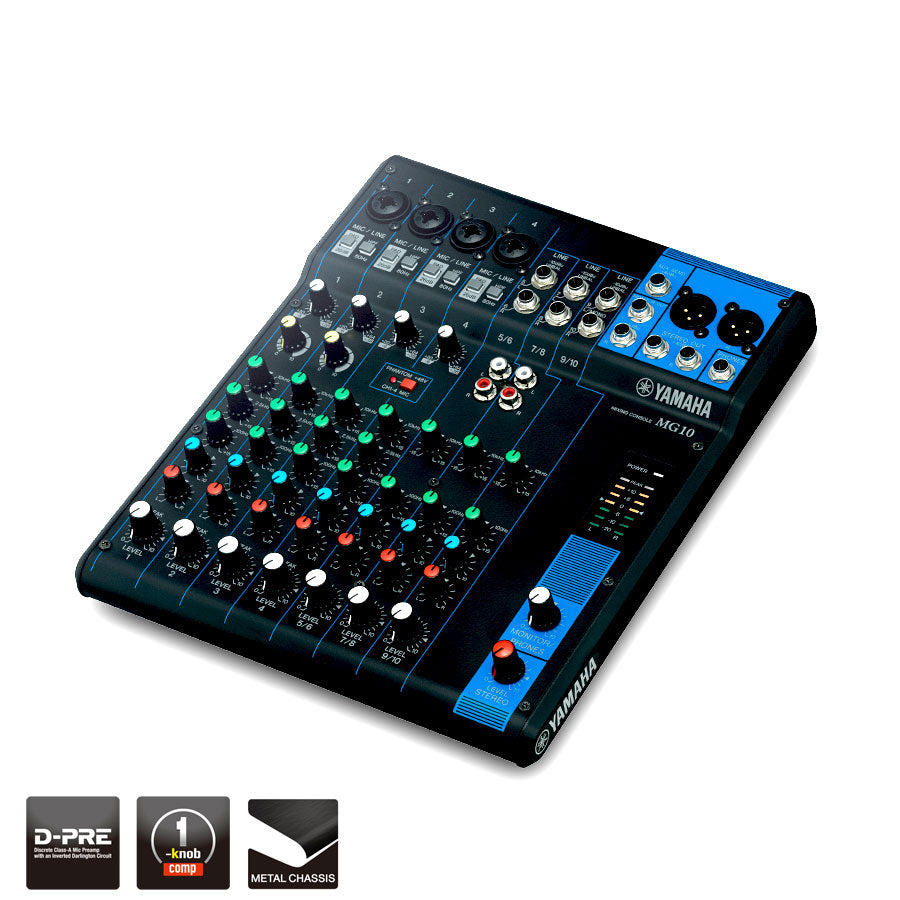

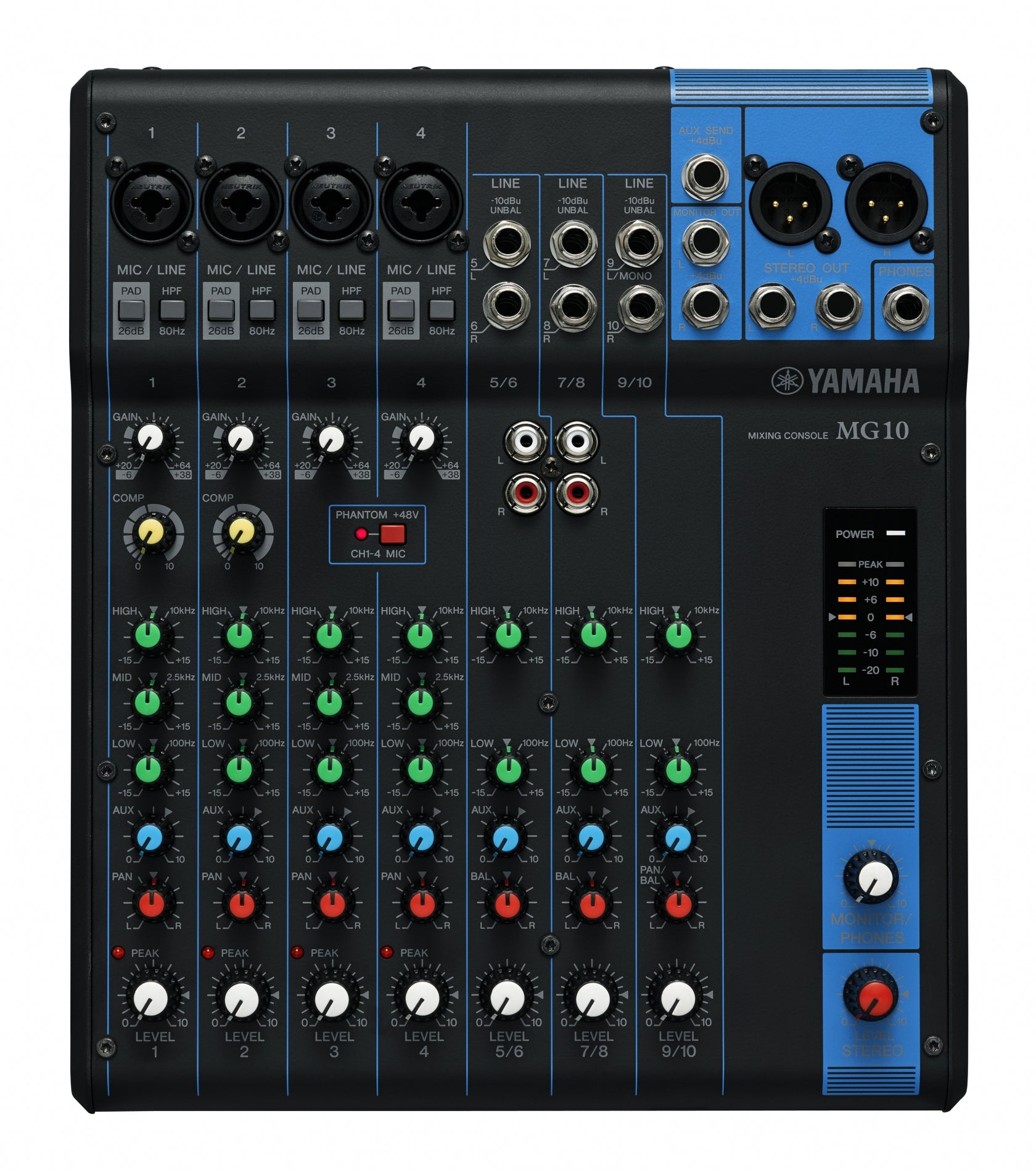

Yamaha MG10 Live Mixer
Yamaha The MG10 is a 10-channel live mixer with 48 V phantom power, 4 mic/line inputs, plus 3-band EQ and high pass filters. The MG10 has up to 4 AUX sends, so you can send audio to other effects machines, external recorders or monitor musicians etc.
D-PRE mic preamps
Yamaha The MG10 is equipped with D-PRE mic preamps that provide optimal power and lower impedance. With D-PRE, you get a wider frequency response, allowing the mixer to handle a wider range of sound sources.
1-button compressors
With a wide range of 1-button compressors, the Yamaha MG10 lets you alter the dynamics of audio signals from guitars, drums, basses and more to sound exactly the way you want.
Especificaciones
Especificaciones
-
Weight (kg)
More specifications
More specifications
Specifications | |
Outline | |
| I/O Phantom Power | +48 V |
| Input Channels Mono [MIC/LINE] | 4 |
| Input Channels Stereo [LINE] | 3 |
| Output Channels Stereo Out | 2 |
| Output Channels Monitor Out | 1 |
| Output Channels Phones | 1 |
| Output Channels AUX send | 1 |
| Bus | Stereo: 1, AUX[FX]: 1 |
Input Channel Function | |
| PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono) |
| COMP | 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter | 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] |
General specifications | |
| Total harmonic distortion | 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response | +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) |
| Crosstalk | -83 dB |
| Power requirements | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha |
| Power consumption | 22.9 W |
| Width | 244 mm (9.6") |
| Hight | 71 mm (2.8") |
| Depth | 294 mm (11.6") |
| Net weight | 1.9 kg (4.19 lbs.) |
| Accessories | Included Accessory: AC Adaptor, Owner's Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A |
| Others | Operating Temperature: 0 to +40C |
Brand: Yamaha
SKU: YAM-MG10
