LD Systems DDQ 15 Active PA Speaker
Descripción
Descripción
- Class D active loudspeaker
- Volume, EQ, delay, high pass filter, limiter etc.
- Neodymium subwoofer and BMS driver
- 136 dB SPL
- Can be used for various purposes

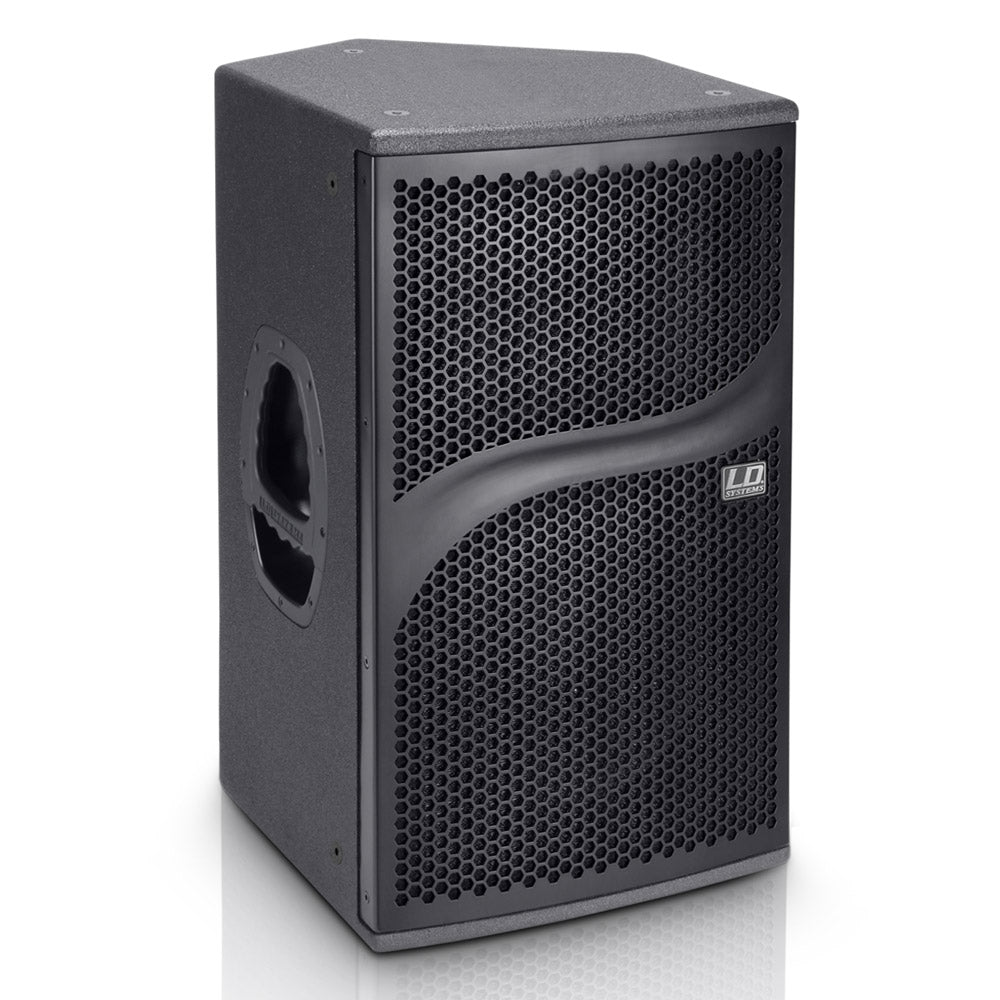

LD Systems DDQ 15 Speaker
LD Systems DDQ 15 is a Class D active speaker with side handles and 15 mm cabinet made of plywood. The loudspeaker can be used as a floor monitor or as an upright speaker and is suitable for front of house, delay lines, PA systems or other types of sound installations.
Sharc DSP and limiter
LD Systems The DDQ 15 comes with 24-bit/48 kHz Sharc DSP that features volume control, delay, EQ, high pass filter, crossover, phase alignment and protection features that ensure solid durability. The speaker also has 1 ms limiter that makes sure the sound doesn't get distorted.
Sublime sound quality
With a 15 FaitalPRO neodymium subwoofer and a BMS compression driver, you get a speaker with switch-mode power delivery, total harmonic distortion and extremely low noise. LD Systems The DDQ 15 produces sound in the frequency range 38 Hz to 20 kHz with a sound dispersion of 80 x 50 degrees and a maximum sound level of 136 dB.
Especificaciones
Especificaciones
-
Weight (kg)
More specifications
More specifications
Specifications | |
| Product type: | PA loudspeaker |
| Type: | active |
| Design: | DSP controlled |
| Low/mid driver dimensions: | 15" |
| Low/mid driver dimensions (mm): | 381mm |
| Low/mid driver magnet: | Neodymium |
| Low/mid driver brand: | Faital Pro |
| Low/mid driver voice coil: | 3" |
| Low/mid driver voice coil: | 75mm |
| Tweeter dimensions: | 1,4" |
| Tweeter dimensions (mm): | 35.6mm |
| Tweeter magnet: | ceramic |
| Tweeter brand: | BMS |
| Tweeter voice coil: | 1,75" |
| Tweeter voice coil (mm): | 44.4mm |
| Amplifier: | 2 x Class D, Hypex Ucd700 |
| Dispersion (H x V): | 80 x 50° |
| RMS: | 1400 (2 x 700)W |
| Frequency response: | 38 - 20000Hz |
| Crossover frequency: | 1300Hz |
| Max. SPL (continuous): | 124dB |
| Max. SPL (peak): | 136dB |
| Integrated media player: | no |
| Protection circuits: | RMS speaker limiter, RMS power supply limiter, over voltage, DSP-based "look ahead" limiter, over-current |

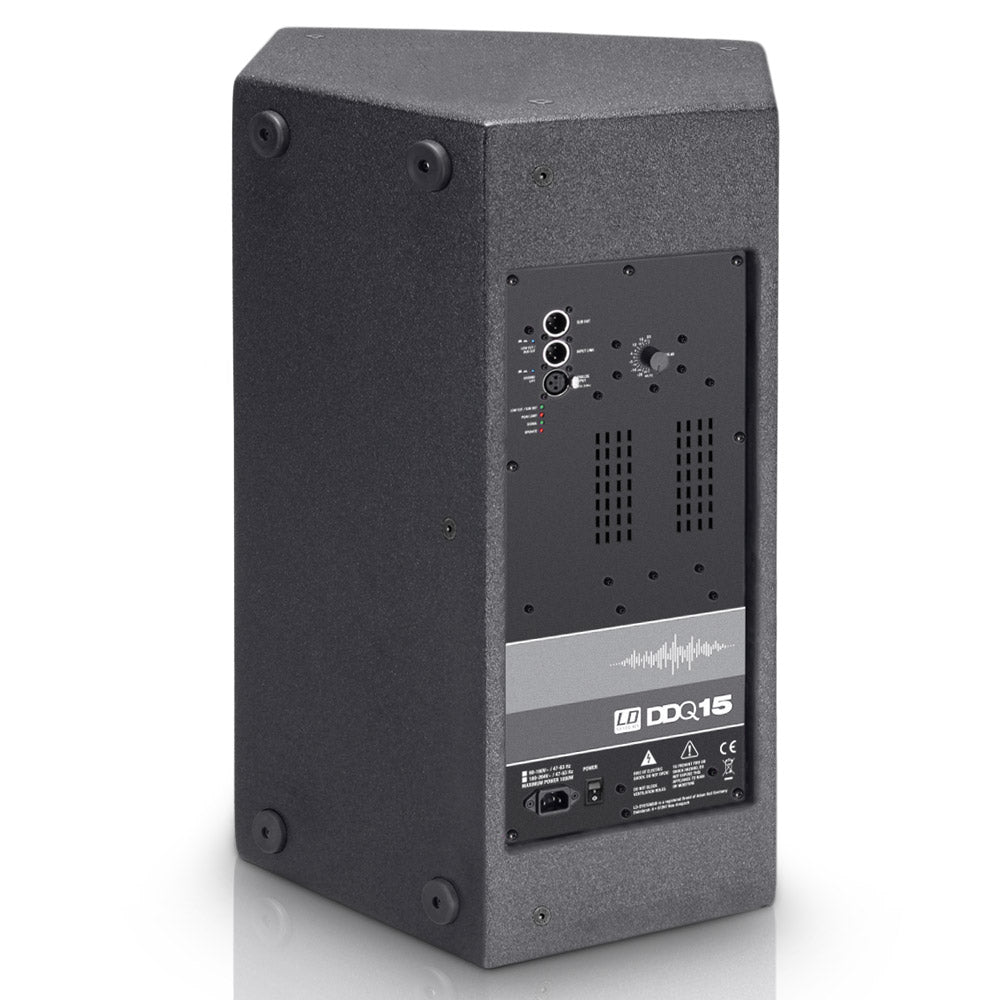

| Controls: | Gain, ground lift, X-Over Sub, mains switch (on/off) |
| Display: | X-Over Sub, Peak Limit, signal, Operate |
| Line inputs: | 1 |
| Line input connectors: | XLR |
| Line outputs: | 1 |
| Line output connectors: | XLR |
| Operating voltage: | Switching Power Supply, 180 - 264 V AC, 47 - 63 Hz |
| Cabinet material: | 15 mm Birch Plywood, 18 mm Birch Plywood |
| Cabinet surface: | Polyurethane |
| Cabinet construction: | vented |
| Monitor angle: | 50° |
| Width: | 420mm |
| Height: | 736mm |
| Depth: | 488mm |
| Weight: | 32kg |

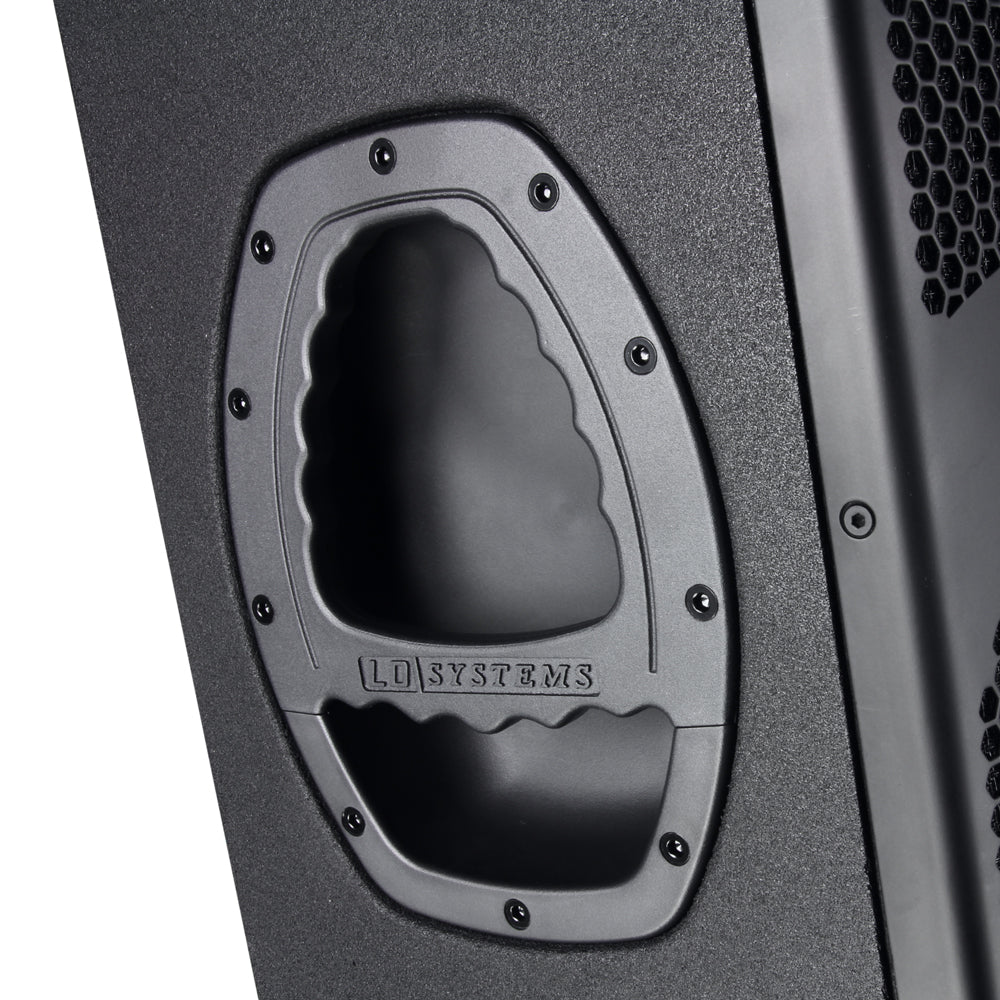

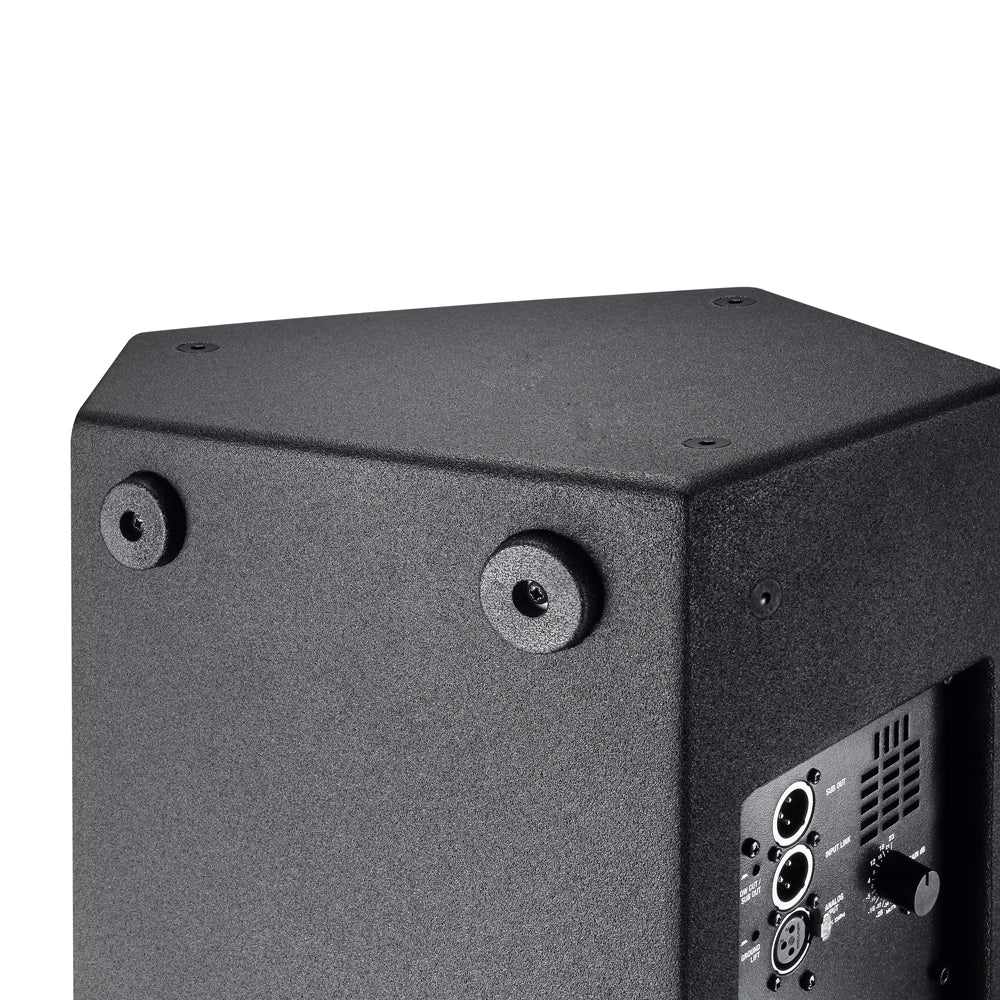

| Features: | 13 x M10 flying points, LD Systems "Evolutive" handles, switchable high-pass filter |
