Yamaha CBR15
€512,00
Precio por unidad
/
No disponible
Descripción
Descripción
- 15" 2-way speaker with bass reflex cabinet
- Maks. sound pressure level of 126 dB
- HF protection
- Compression unit on 2,5"
- 1000 W peak

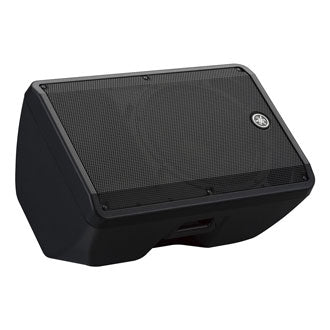

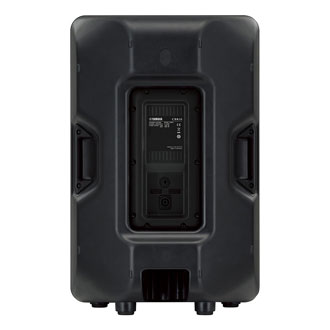

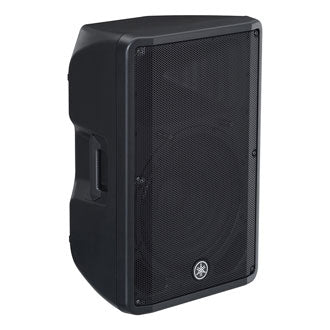

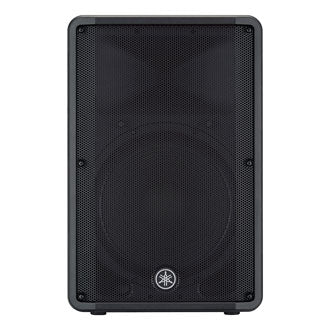

Yamaha CBR15 Passive Speaker
Yamaha The CBR15 is the largest speaker in the CBR series, which also makes it the most powerful in terms of compression unit, sound pressure level and frequency range. Yamaha The CBR15 is a 15? 2-way passive speaker with bass reflex cabinet and power capacity of 1000 W peak.
High sound pressure level
Yamaha The CBR15 produces optimum sound in the frequency range 46 Hz - 20 kHz with a maximum sound pressure level of 126 dB. Using its high compression unit of 2.5? you get high-definition sound with minimal distortion.
RF protection
With built-in RF protection, the Yamaha CBR15 is protected against overheating of the tweeter unit. Combined with a responsive bass unit, you'll always get clear sound with this speaker.
Especificaciones
Especificaciones
-
Weight (kg)
More specifications
More specifications
Specifications
| Speaker type: | 2-way speaker, bass reflex cabinet |
| Frequency range (-10dB): | 46 Hz - 20 kHz |
| Nominal coverage: | H: 90° V: 60° |
| Components: | LF: Diameter: 15" unit, voice coil:2.5", magnet:ferrite HF: Diaphragm:1.4", type: 1" throat compression unit, magnet:ferrite |
| Crossover: | 2.0 kHz |
| Power rating: | NOISE: 250W PGM: 500W PEAK: 1000W |
| Nominal impedance: | 8 |
| SPL: | Sensitivity (1W; 1m on axis): 96dB SPL Peak (Calculated): 126 dB SPL |
| I/O connectors: | 1/4" jack x 1, speakON NL4MP x 1 |
| Cabinet material: | Plastic |
| Finish: | Black |
| Handle: | Side x 2 |
| Flying and mounting hardware: | Underside x 2, Backside x 1 (fits M8 x 15 mm eyebolts) |
| Pole socket: | 35 mm underside x 1 |
| Dimensions: | W: 455mm (17.9") H: 700mm (27.6") D: 378mm (14.9") |
| Net weight: | 17.7 kg (39.0 lbs) |
| Accessories: | Speaker bracket (optional): BBS251, BCS251, BWS251-300, BWS251-400 |
Brand: Yamaha
SKU: YAM-CBR15
