Neutrik NA1394-6-W
€4,00
€11,00
Precio por unidad
/
No disponible
Descripción
Descripción
- Neutrik Chassis connector
- Made of metal
- Firewire 6 connectors on front and rear

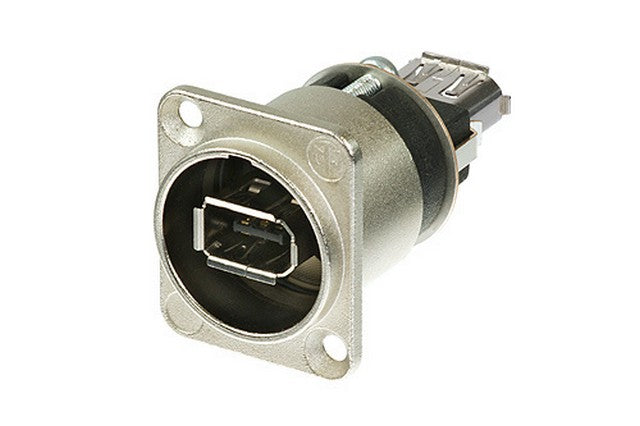

Neutrik NA1394-6-W
Firewire 6 with IEEE 1394 6 pole receptacles on both ends, Nickel D-housing
Due to the rising digitisation the interface problems between audio/video networks, IT equipment (e.g. Mac) and mLAN connections increase.
Neutrik 's Firewire feedthrough type 1394a, mounted in the standardized D-shape housing, solves this problem.
Features & Benefits
- Ideal for audio networking and integration of digital equipment into audio systems
- Firewire feedthrough with 6 pole IEEE 1394 receptacle at both ends
- Universally accepted standard D-shape housing
- Removable screen to chassis grounding:
Especificaciones
Especificaciones
-
Weight (kg)
Más especificaciones
Más especificaciones
Specifications | |
| Connection Type | Firewire |
| Gender | female |
Mechanical | |
| Mounting direction | front |
| Chassis shape | D |
Material | |
| Contact plating | Au |
| Contacts | Brass (CuZn39Pb3) |
| Insert | PBTP 15 % GR |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
Environmental | |
| Flammability | UL 94 V-0 |
| Standard compliance | IEEE 1394 |
| Temperature range | -25 °C to +85 °C |
Brand: Neutrik
SKU: NEU-NA1394-6-W
