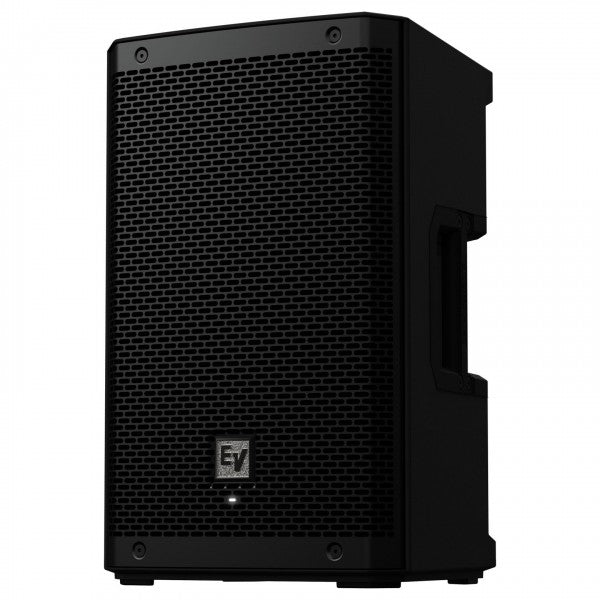

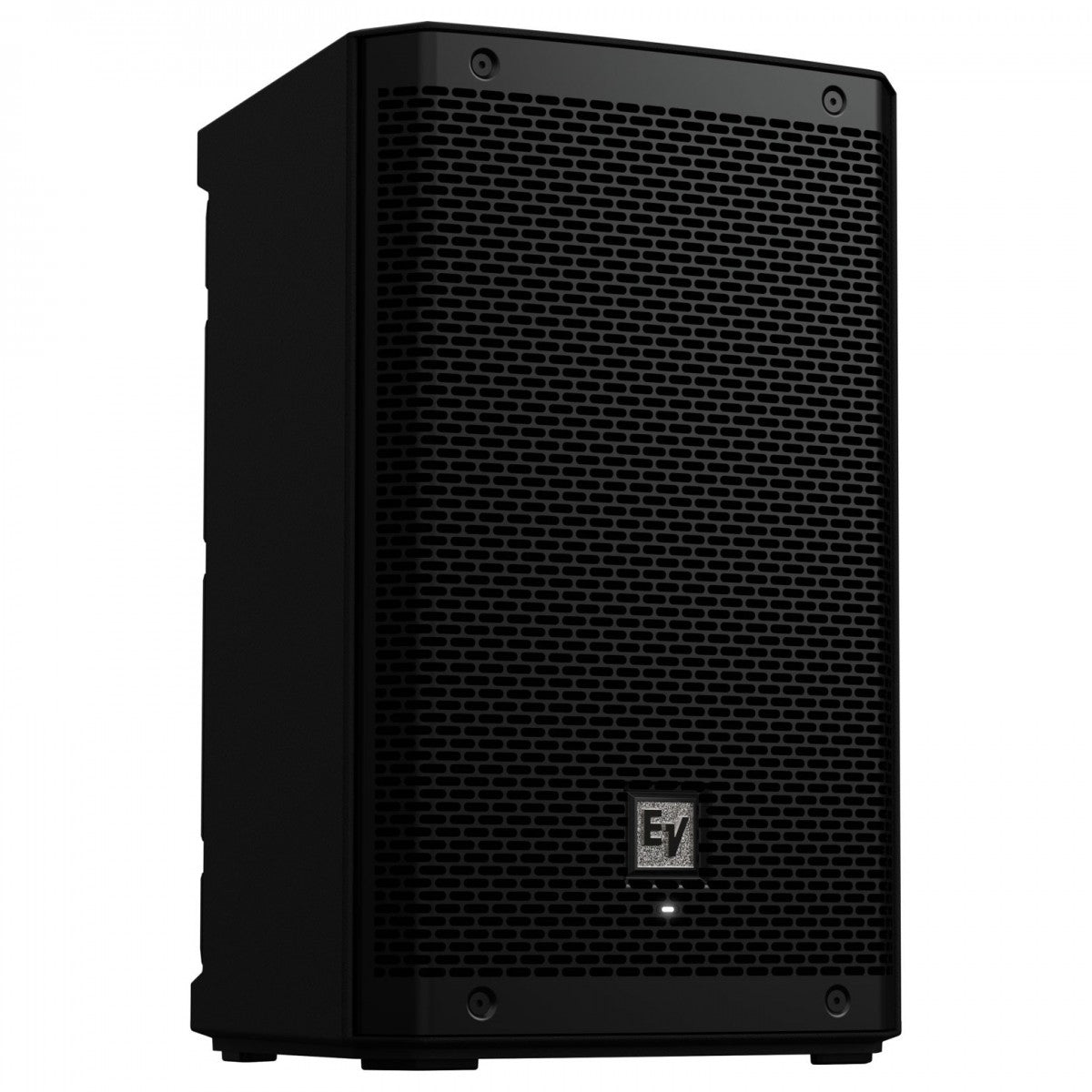

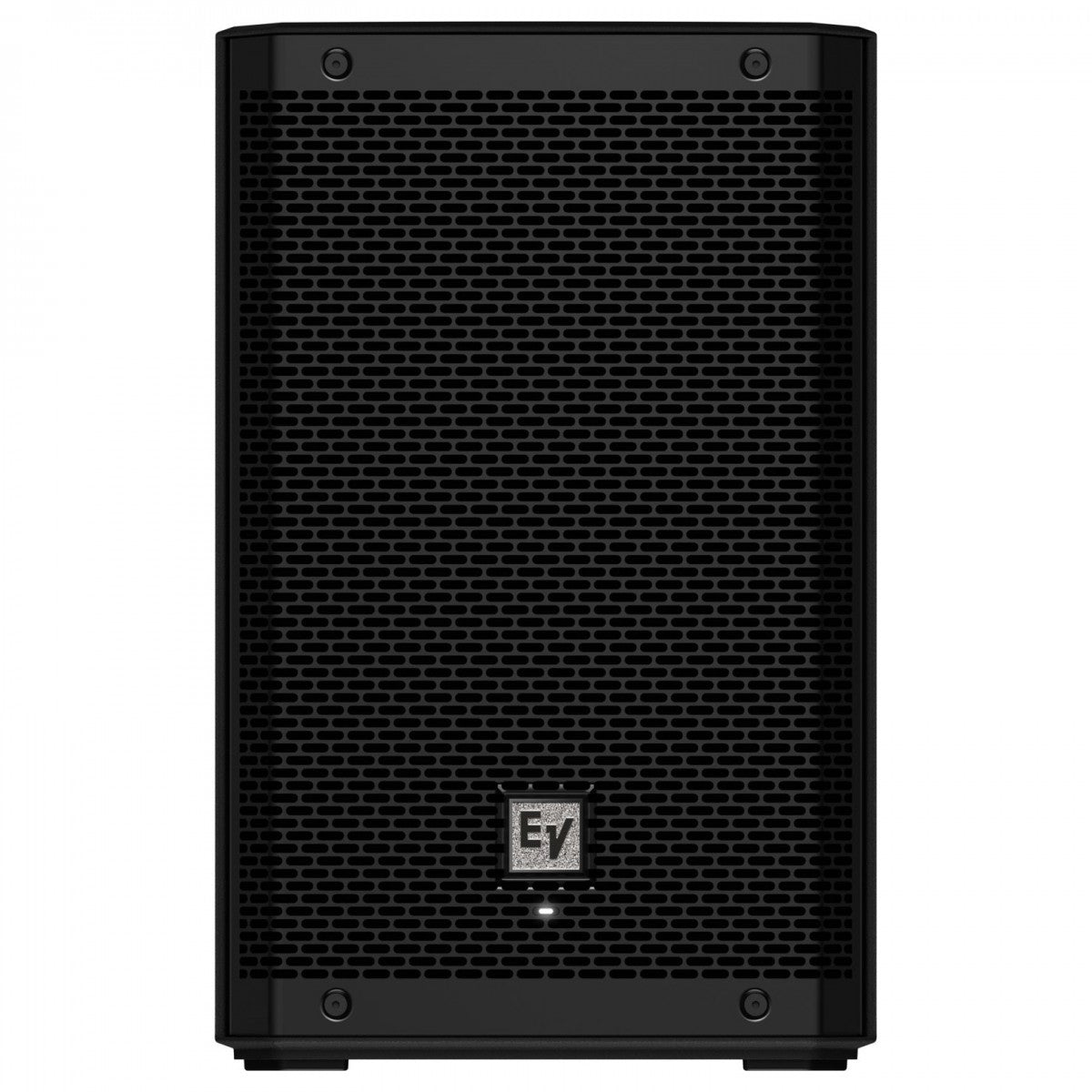

Electro-Voice ZLX8P-G2 Active PA Speaker

• Active 8" PA speaker with high performance and features in its class
• 8" woofer - incredible acoustic output and extended frequency range
• Electro-Voice-Patented SST (Signal Synchronized Transducers) baffle design
• Built-in digital mixer
• Wireless stereo streaming and linking capability on Bluetooth
• Easy control via the Electro-Voice QuickSmart Mobile app
• Electro-Voice-Specific subwoofer presets

Electro-Voice ZLX8P-G2 Active PA Speaker

• Active 8" PA speaker is part of the next generation ZLX-G2 professional audio speaker series.
• This speaker builds on the success of its predecessor and raises the bar for performance and features in its class.
• Featuring an 8-inch woofer, the ZLX-8P G2 delivers incredible acoustic output and an extended frequency range.
• The Electro-Voice patented Signal Synchronized Transducers (SST) baffle design ensures improved bass response, compact size and even coverage across all frequencies.

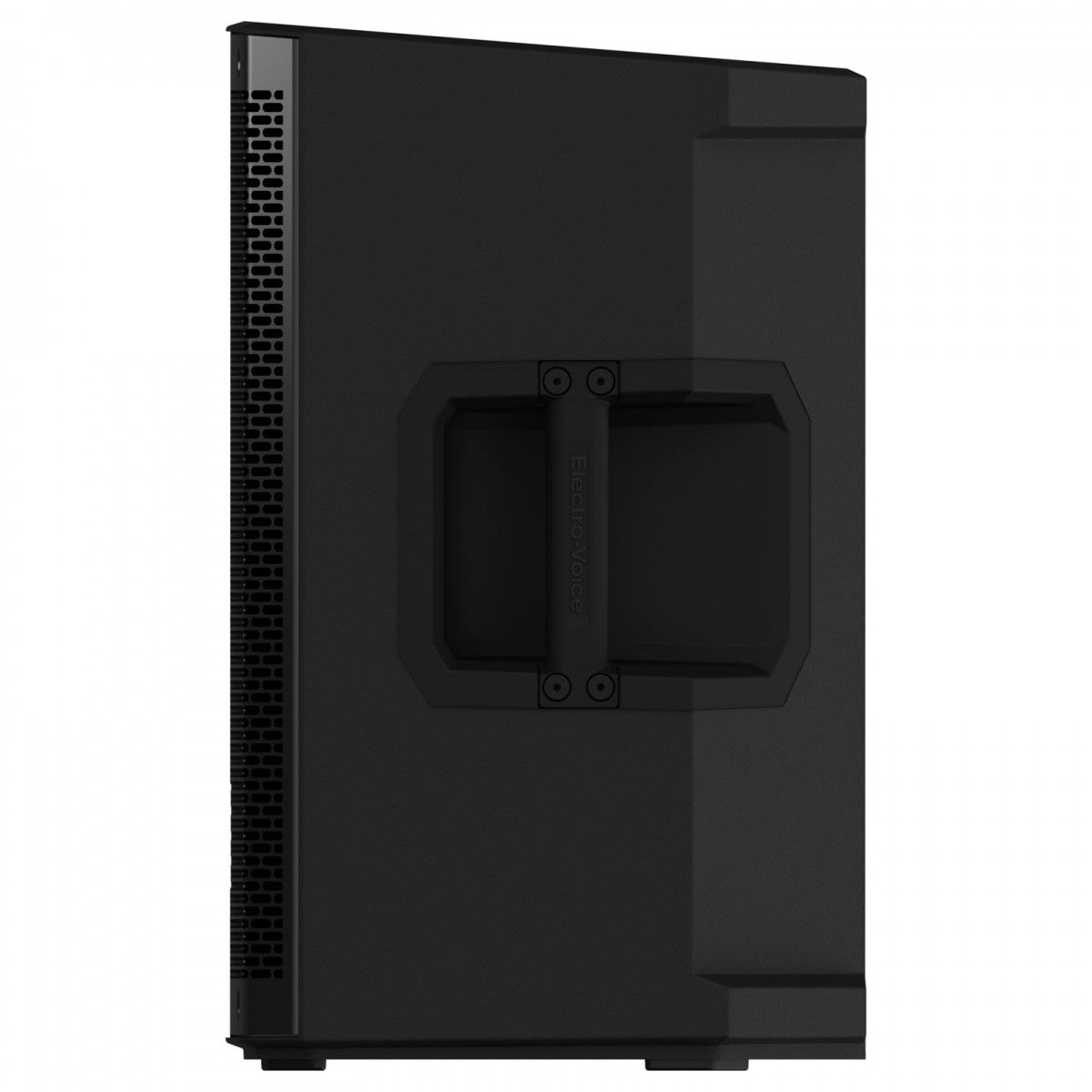

• Designed for durability and portability, the ZLX-8P G2 features a robust and ergonomic housing.
• With its built-in digital mixer powered by Dynacord, this speaker offers a range of features including FX, EQ, automatic feedback suppression and ducking.

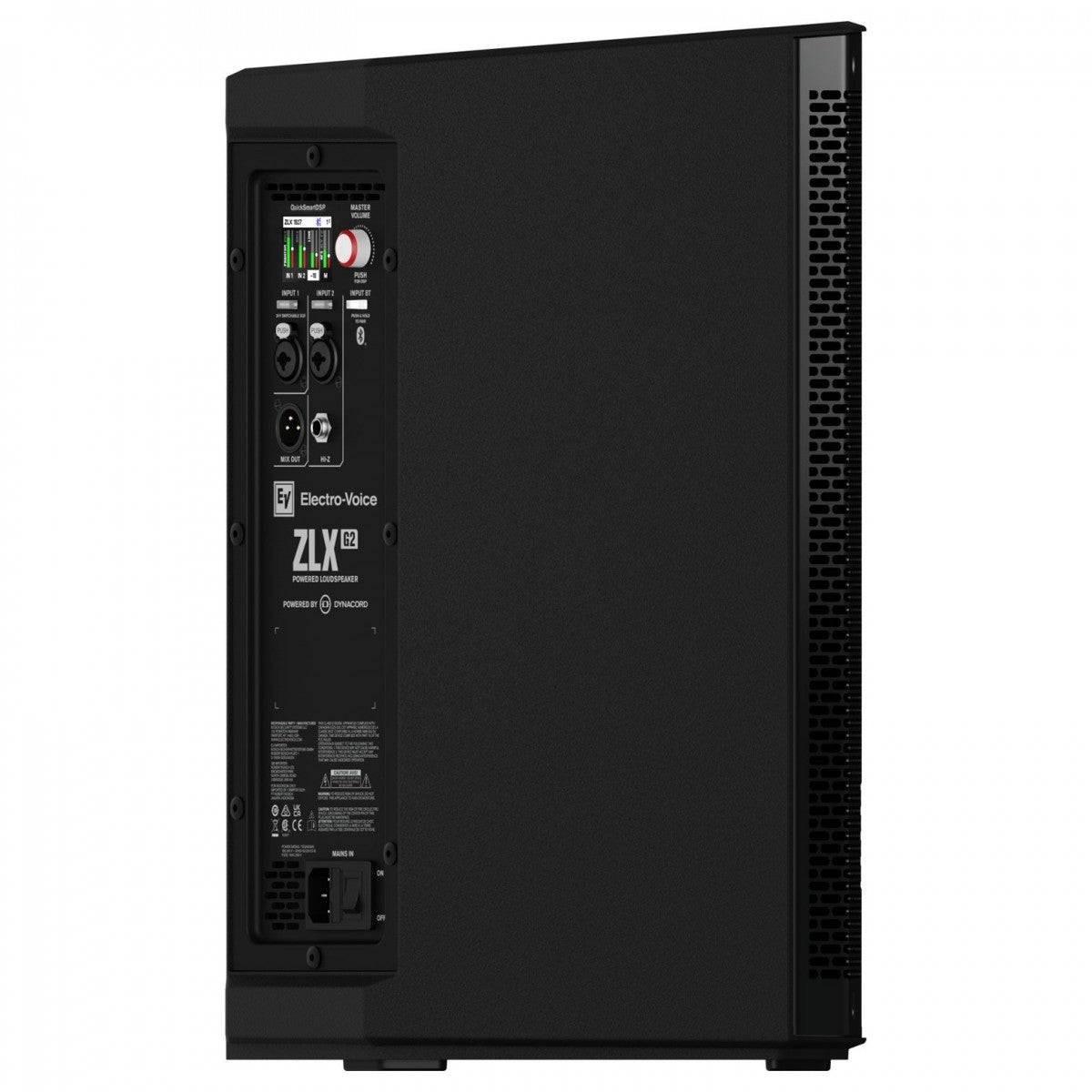

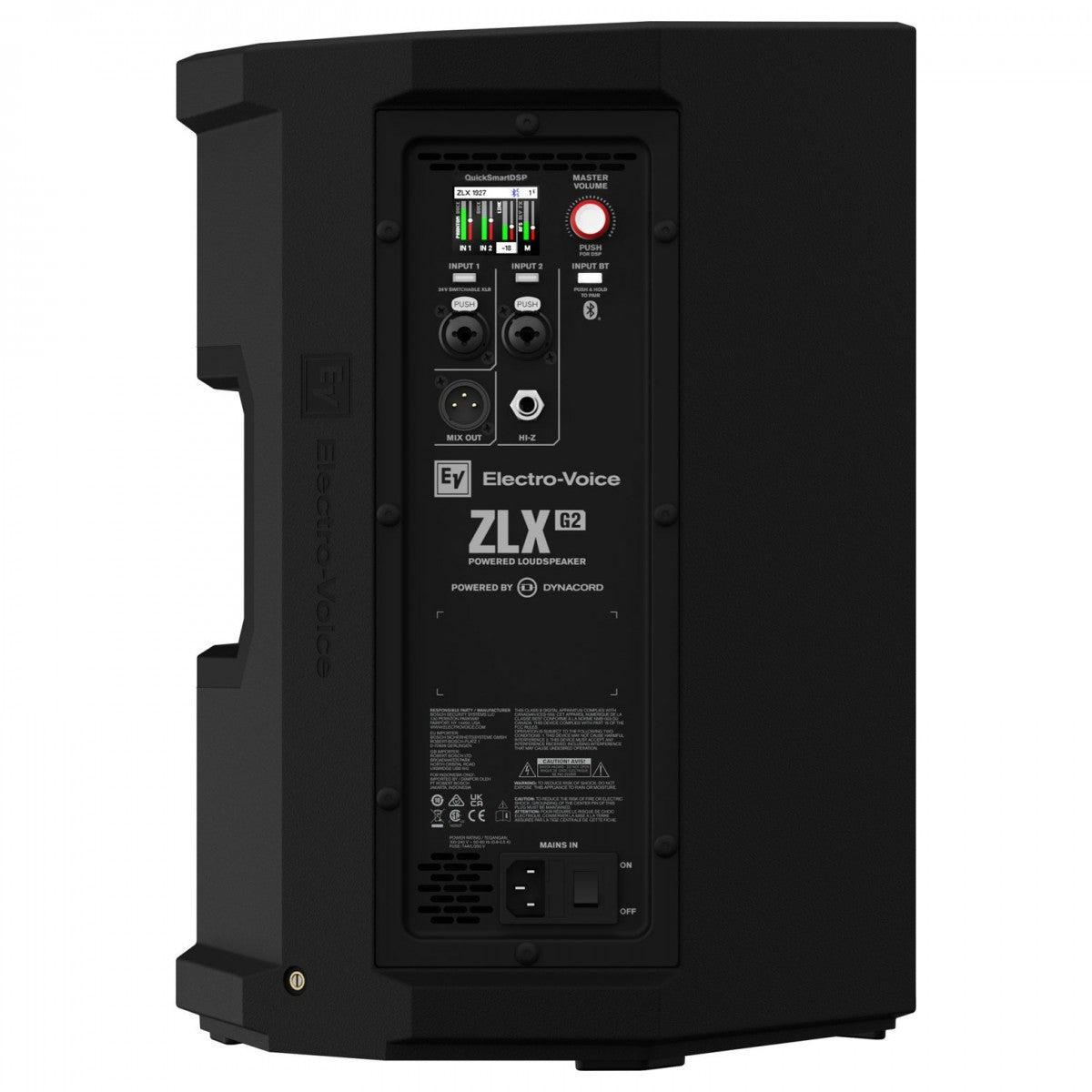

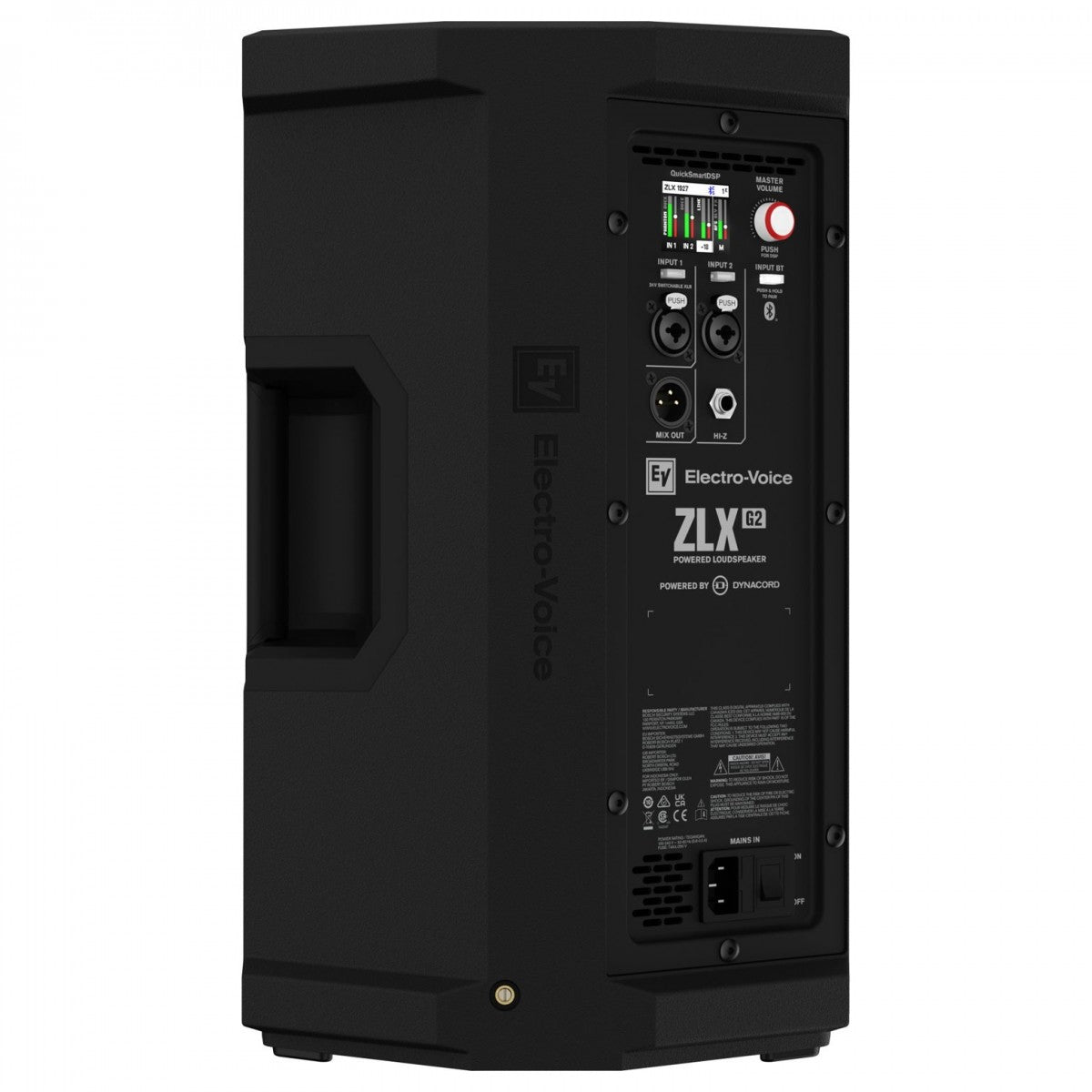

• The mixer also features two XLR/TRS combo jacks with 24V phantom power and Hi-Z compatibility.
• Thanks to advanced connectivity, the ZLX-8P G2 allows for wireless stereo streaming and linking on Bluetooth, making it easy to create a true wireless stereo setup.
• You can easily control all speaker functions and mixer settings via the Electro-Voice QuickSmart Mobile app, which allows you to pair and group up to six speakers.
• With its larger color LCD display and easy-to-use sound card, the ZLX-8P G2 provides quick setup and improved control.
• In addition, this speaker comes with Electro-Voice-specific subwoofer presets for optimal gain and time alignment as well as high-pass filtering for adjustable crossovers with subwoofers.

Frequency response (-3 dB) (Hz) 1 : 58 Hz - 20,000 Hz
Frequency range (-10 dB) (Hz) 1,2 50 Hz - 20,000 Hz
Maximum sound pressure level at a distance of 1 m (dB) 3 126 dB
Coverage angle HxV (°) 90° x 60°
Crossover frequency (kHz) 1.40 kHz
Power rating (W) 1000 W
Power consumption (V, Hz) 4 100 - 240 V~, 50 - 60 Hz
LF transducer WECA2088
LF transducer size (in) 8 in
LF transducer magnet material Ferrite
HF transducer DECA2516
HF transducer type Compression driver
HF transducer size (in) 1.40 in
HF transducer magnet material Ferrite
HF transducer diaphragm material Titanium
Connector type (2) XLR/TRS combo, (1) 1/4-inch TS Hi-Z
Material Polypropylene
Grille material Powder coated steel
Dimensions (H x W x D) (mm) 459.6 mm x 289.9 mm x 280.5 mm
Dimensions (H x W x D) (in) 18.09 in x 11.41 in x 11.04 in
Shipping dimensions (H x W x D)
(mm)
500 mm x 390 mm x 350 mm
Shipping dimensions (H x W x D) (in) 19.69 in x 15.35 in x 13.78 in
Weight (kg) 10.64 kg
Weight (lb) 23.46 lb
