• Fully-featured RGBW LED yoke wash fixture with zoom
• 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
• 7 RGBW LEDs, 40 W each
• 5-pin DMX input/output connections
• Unique lens design for excellent color blending and tight beam effects
• Extremely fast, smooth pan and tilt movement
• RDM enabled for remote addressing and trouble shooting
• Selectable PWM settings for camera operation
• User-selectable calibrated white for 7500 K at full output
• User selectable red shift in all dimming modes to emulate tungsten fixtures
• 6 distinct dimming modes for advanced control
• Omega mounting bracket fits all Rogue and Maverick fixtures
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility

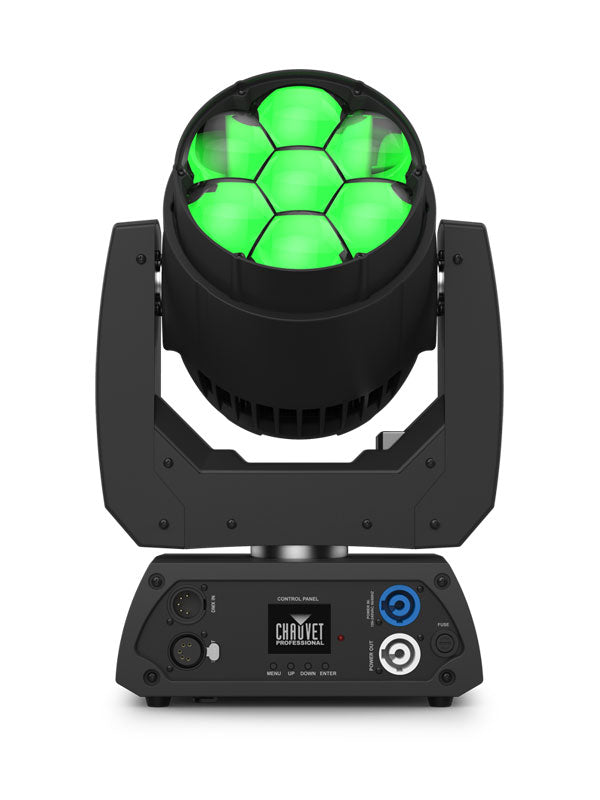

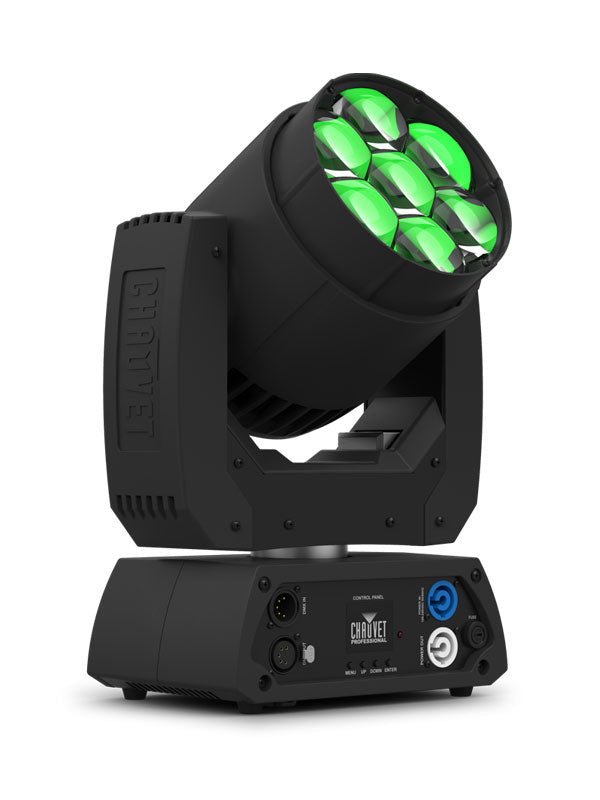

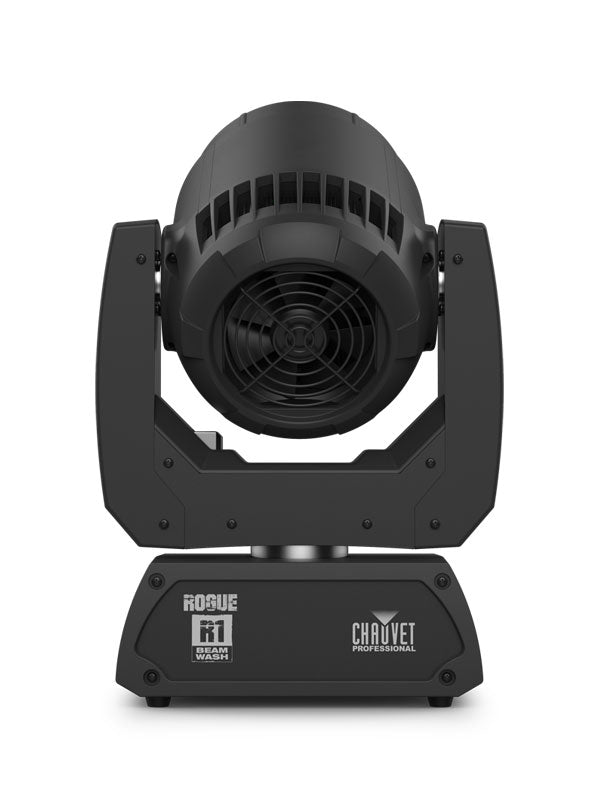

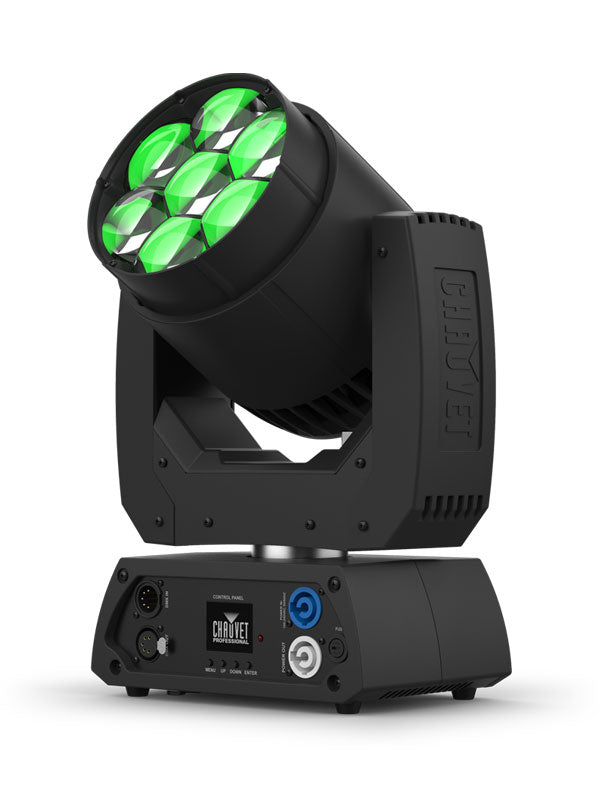

• Rogue R1 BeamWash is a versatile and compact moving head that projects a punchy beam and wash.
• The unit features a custom-designed optical system with seven, 40W RGBW LEDs and an expansive zoom range of 3.4° to 67.7° that allows for it to project tight, solid beam effects at its most narrow and transforms the light source into a nice even wash with excellent color blending as it expands.
• The unit’s small size also allows for a superfast and smooth pan and tilt movement.
• It’s also RDM enabled for remote addressing and is equipped with a selectable PWM setting to maintain flicker free operation on camera.

OPTICAL

• Light Source: 7 LEDs (quad-color RGBW) 40 W, (980 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10000 K
• Beam Angle: 4° to 37.8°
• Field Angle: 5° to 58.2°
• Cutoff Angle: 5.5° to 67.7°
• Zoom Range: 3.4° to 67.7°
• Lumens – Source: 5,400
• Lumens – Output: 3,967 Wide
• Illuminance (5°): 13,939 lux @ 5 m
• Illuminance (55°): 383 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

• Pan and Tilt: 540°/230°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No

CONSTRUCTION / PHYSICAL

• Dimensions: 8.42 x 6.29 x 14.52 in (214 x 160 x 369 mm)
• Weight: 11.8 lb (5.35 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX
• DMX Channels: 14, 15, 19 or 21
• Modes/Personalities: 4 personalities (14, 15, 19, 21)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
• Power and Current: 285 W, 2.38 A @ 120 V, 60 Hz
• Power and Current: 284 W, 1.37 A @ 208 V, 60 Hz
• Power and Current: 284 W, 1.23 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET
• IP Rating: IP20, dry location

WHAT'S INCLUDED

• Rogue R1 BeamWash
• Neutrik® powerCON® power cord
• Omega bracket with mounting hardware
