Chauvet WELL STX360 4-Pack
€4.899,00
Precio por unidad
/
No disponible
Descripción
Descripción
- 16 individual zones of control for pixel mapping effects
- High CRI LEDs for fantastic skin tone rendering
- Simple and complex operational modes
- Built in editable pre-programmed effects that are controllable from the menu and over DMX
- 3, 5, 8, and 12 hour settings for optimizing performance time
- Included accessories for several mounting options
- Included charging flight case for easy transportation and charging of fixtures
- Update software over USB-C connection in flight case (upload all 4 fixtures at once)
- Works in both stand-alone modes as well as under DMX over W-DMX
- Works perfectly with the WELL-COM controller and app

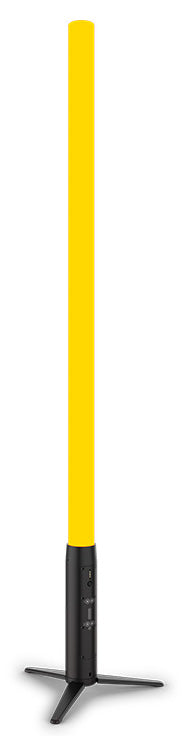

WELL STX 360 4-Pack
- WELL STX 360 is a large freestanding, battery-operated, and outdoor-ready LED tube that emits 360° of ultra-bright, high-quality, pixel-mappable light.
- Wireless control of 16 zones of the RGBWW LED’s produce exceptional eye-candy effects with high CRI – so it will look as great on camera as it does in person.
- In addition to being IP65 rated, WELL STX 360 can also be oriented in any position so you can fully utilize the wireless freedom this fixture is capable of.
- The device is also controllable via W-DMX, which can be used with almost any standard lighting controller, including the WELL COM with its built in W-DMX receiver.
The unit is packaged as part of a complete kit that includes:
- 4 WELL STX 360, 4 eyebolts for suspended hanging options,
- 4 folding floor stands,
- 1 IR Remote, and
- 1 charging flight case.
Especificaciones
Especificaciones
-
Weight (kg)
More specifications
More specifications
OPTICAL
- Light Source: 512 LEDs (256 RGB / 256 WW) SMD 5050, 50,000 hours life expectancy
- Color Temperature (range): 2800 to 8000 K
- Color Temperature (at full): 9670 K
- CRI: 91.9 @ 4000 K
- Beam Angle: 360°
- Field Angle: 360°
- Illuminance (total): 5 lux @ 5 m – 3 hr run time
- Lumens – Output : 1,718 lm – 3 hr run time
- PWM Frequency: Scrambled PWM
DYNAMIC EFFECTS
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 28 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
- Dimensions: 59.09 x 2.75 x 2.75 in (1501 x 70 x 70 mm)
- Dimensions (charging case): 69.8 x 19.5 x 6.4 in (1773 x 495 x 163 mm)
- Weight: 9 lb (4.1 kg)
- Weight (charging case): 85 lb (38.6 kg)
- Threaded Bolt: M12-1.75
- Exterior Color: Black
- Housing Material: Aluminum alloy, Plastic
CONNECTIONS
- Power Connection (single charger): Edison (Local) plug to Seetronic Powerkon IP65
- Power Connection (charging case): Edison (Local) plug to Seetronic Powerkon IP65
- Power Input (single charger): Seetronic Powerkon IP65
- Power Input (charging case): Seetronic Powerkon IP65
- Power Output (charging case): Seetronic Powerkon IP65
- Cable Length power (single charger): 5 ft (1.5 m)
- Cable Length power (charging case): 5 ft (1.5 m)
CONTROL
- Control Protocol: W-DMX
- DMX Channels: 4, 15, 64 or 67
- Modes/Personalities: 4 personalities
ELECTRICAL
- Input Voltage (charging case): 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Input Voltage (single charger): 24 VDC, 2.5 A, 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking (charging case): 8 units @ 100 V; 10 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V; 12 units @ 230 V
- Power and Current (single charger): 67 W, 0.291 A @ 230 V, 50 Hz
- Power and Current (charging case): 268 W, 1.188 A @ 230 V, 50 Hz
- Power and Current (resting w/single charger): 9 W, 0.041 A @ 230 V, 50 Hz
- Power and Current (resting w/charging case): 36 W, 0.164 A @ 230 V, 50 Hz
BATTERY
- Battery type: Lithium Ion
- Quantity of cells: 5 cells
- Rechargeable: Yes
- Watt Hours: 185.9 Wh
- Battery Charge Time: 4 hours
- Battery Life: 3,5,8,12 hours
- Battery Power: 18.5 V, 10.05 Ah
CERTIFICATIONS / QUALIFICATIONS
- CE, FCC
- IP Rating: IP65, for temporary outdoor use
- Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
- Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)
WHAT'S INCLUDED
- (4) WELL STX 360
- True 1 style power cord with Edison plug (EU bare end)
- Charging flight case
- (4) tripod stands
- (4) hanging eye bolts
- (1) IR Remote
- Quick Reference Guide
Brand: Chauvet
SKU: MAT-500018203
