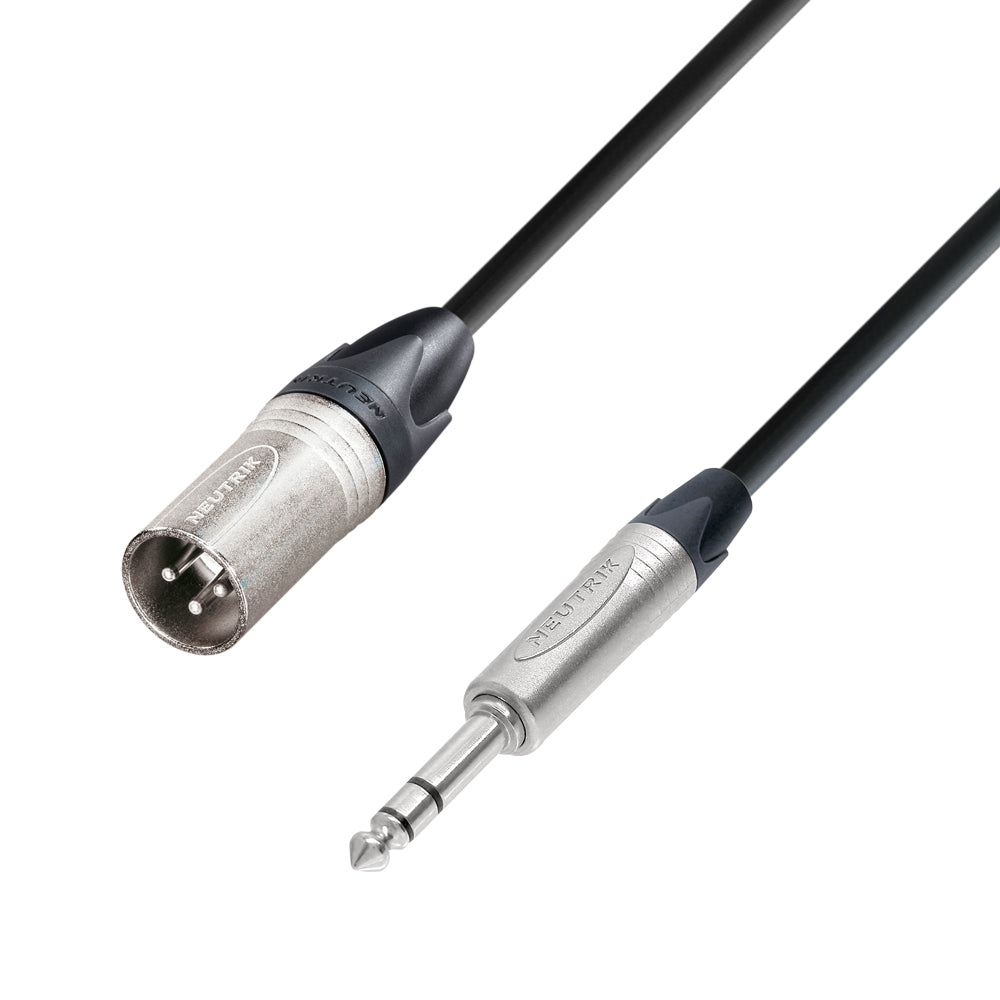

Neutrik Microphone Signal Cable XLR Male to 6.3 mm Jack stereo (3m)

Professional signal microphone cable with Neutrik NC3MXX XLR male connector to Neutrik NP3X 6.3 mm Jack stereo.

• Balanced cable with a male XLR plug and a 6.3 mm stereo TRS plug, developed entirely by NEUTRIK © and manufactured in Europe.
• Like all cables in the 5-Star series, it is manufactured using only 5.9 mm thick and yet extremely durable and highly flexible cable with outstanding audio characteristics.

• Type: Microphone Cable
• Color: black
• Overall diameter: 6.4 mm +/- 0.1 mm
• Conductor area: 0,22 mm²
• AWG (American Wire Gauge): 24
• Conductor material: copper wire screen
• Composition of conductor: 28 x 0,10 mm
• Screen material: bare copper, OFC
• Screen: spiral wound
• Conductor resistance: 87 Ohm / km
• Capacity: < 68 pF/m
• Overall jacket material: PVC

Plugs:

• Model name NC3MXX
• Manufacturer: Neutrik
• Product type: XLR Plug
• Type: straight
• Number of poles: 3
• Gender: male
• Cable diameter: 3.5 - 8 mm
• Colour marking: -
• Contact surface: Silver
• Connection type: Solder contact
• Colour: Silver
• Housing: Cast zinc
• Clamping sleeve: POM
• Dimensions (L x Ø ): 68,1 x 20,4 mm

• Model name NP3X
• Manufacturer: Neutrik
• Product type: 6.3 mm Jack
• Type: straight
• Number of poles: 3
• Gender: male
• Cable diameter: 4 - 7 mm
• Colour marking: -
• Contact surface: Nickel
• Connection type: Solder contact
• Colour: Silver
• Housing: Cast zinc
• Clamping sleeve: Polyoxymethylene
• Dimensions (L x Ø ): 93 x 14.5 mm
