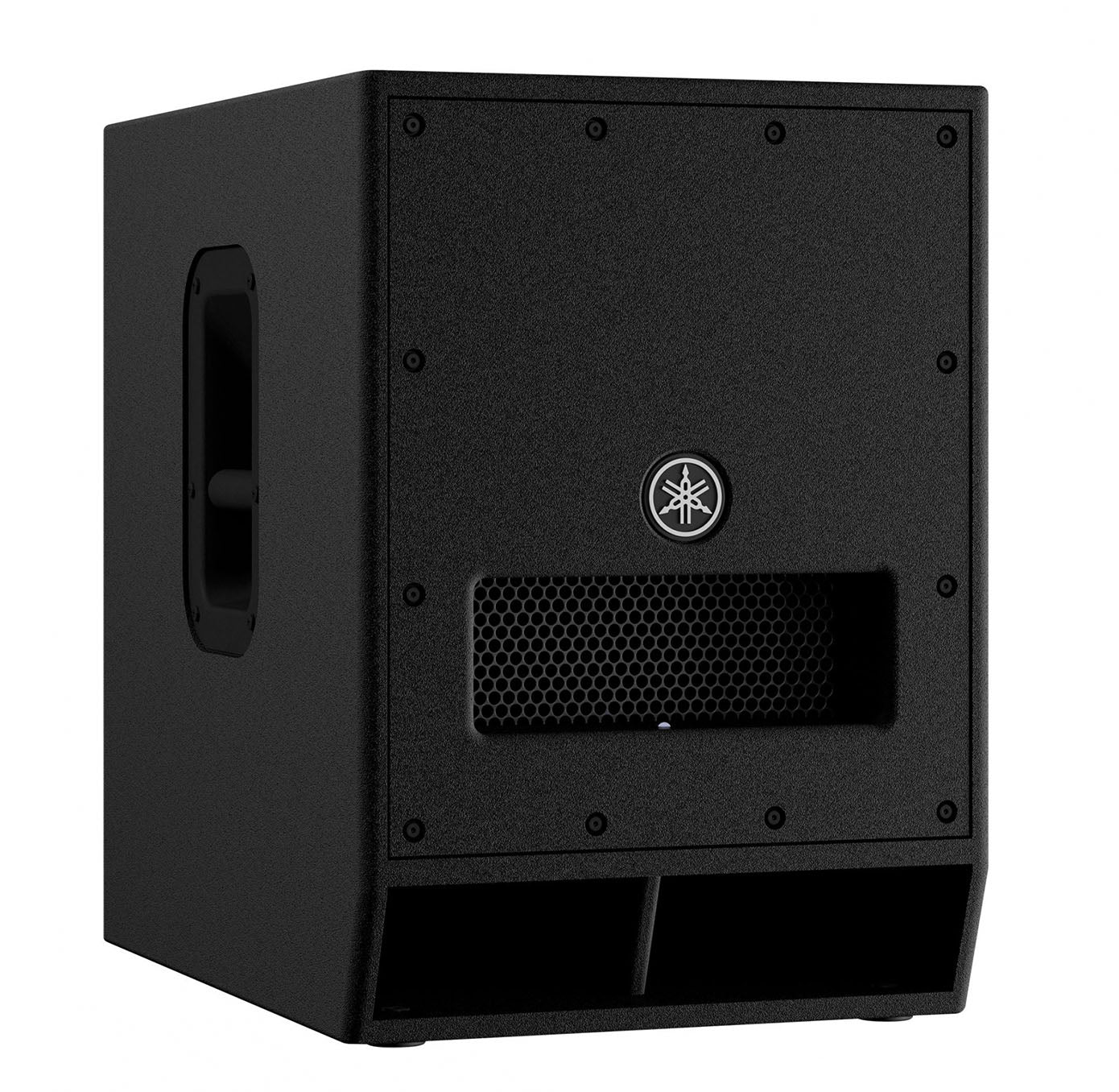

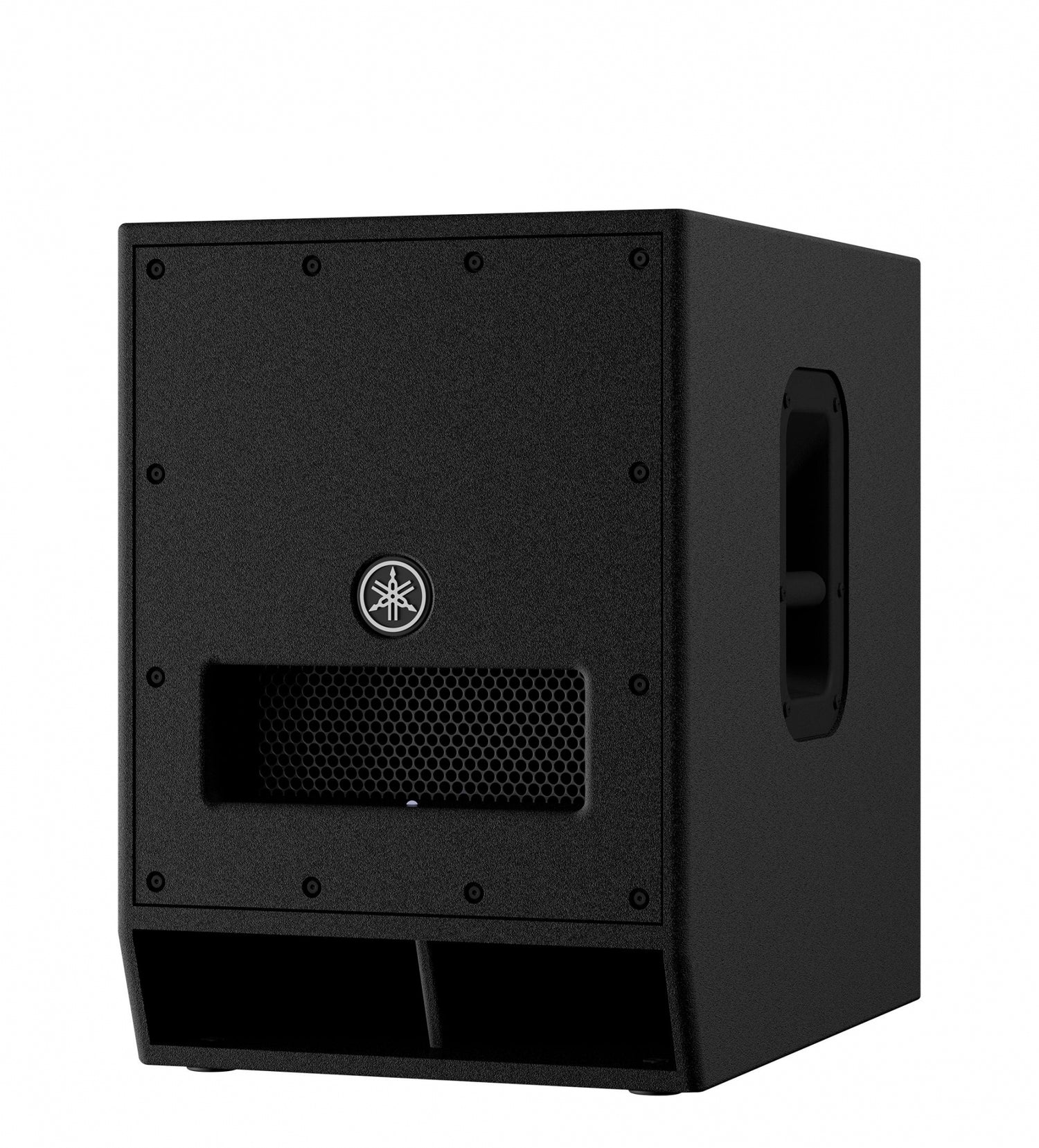

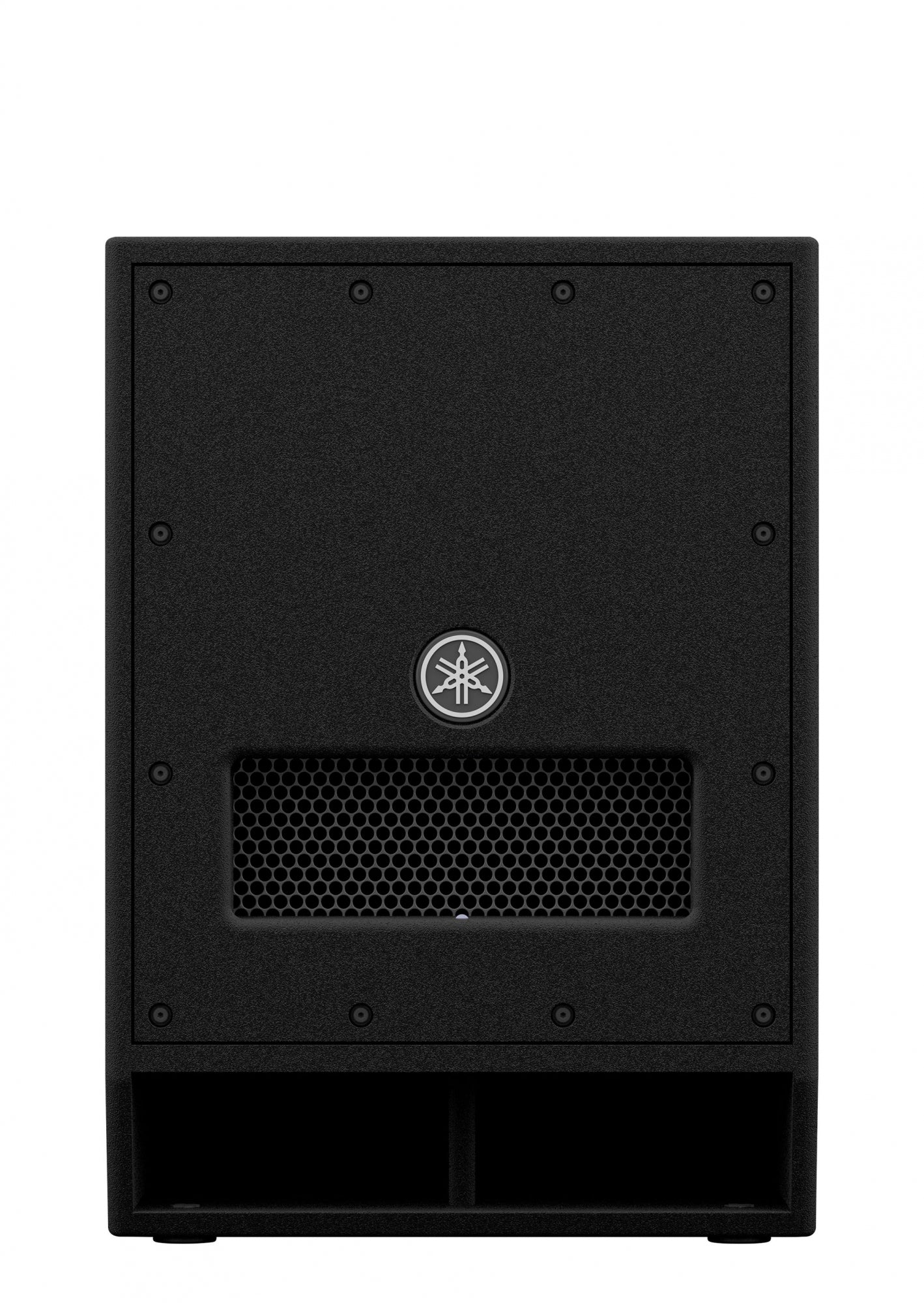

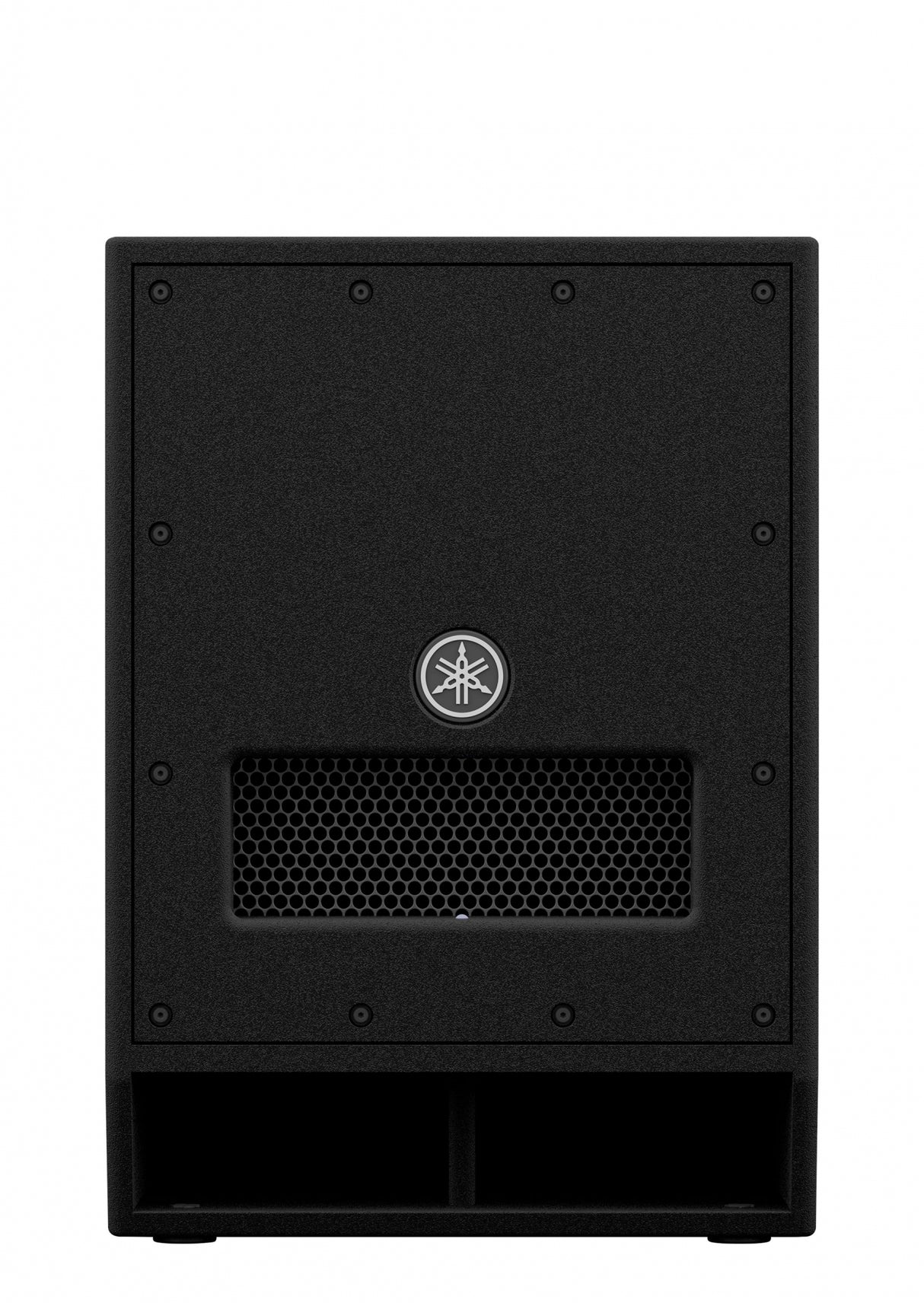

Yamaha DXS12 MKII active subwoofer
€1.166,00
Precio por unidad
/
No disponible
Descripción
Descripción
- Subwoofer that's perfect for smaller venues that require serious power with a professional edge.
- Equipped with an upgraded 1020W amplifier
- Produces an impressive 134dB and reaches as low as 42Hz.
Yamaha DXS12 MKII active subwoofer
- Subwoofer that's perfect for smaller venues that require serious power with a professional edge.
- Equipped with an upgraded 1020W amplifier that produces an impressive 134dB and reaches as low as 42Hz.
- Producing clean, clear, heart-stopping bass.
- Select the D-XSUB "BOOST" or "XTENDED LF" low frequency processing settings, turn up the volume and watch your eyes widen and jaws drop.
- All this in a small, easy-to-install enclosure.
- 12" powered subwoofer with 1020W Class D amplifier
- High-output 12" woofer with a band-pass design enclosure for excellent bass response with a maximum 134dB SPL
- 42Hz-150Hz frequency range is ideal for small and medium-sized applications
- Built-in D-XSUB processing allows the frequency response to extend even lower
- Plywood cabinet is durable and acoustically optimized for minimal distortion
- Cardioid mode for on-stage bass management
- Selectable X-OVER (80/100/120 Hz)

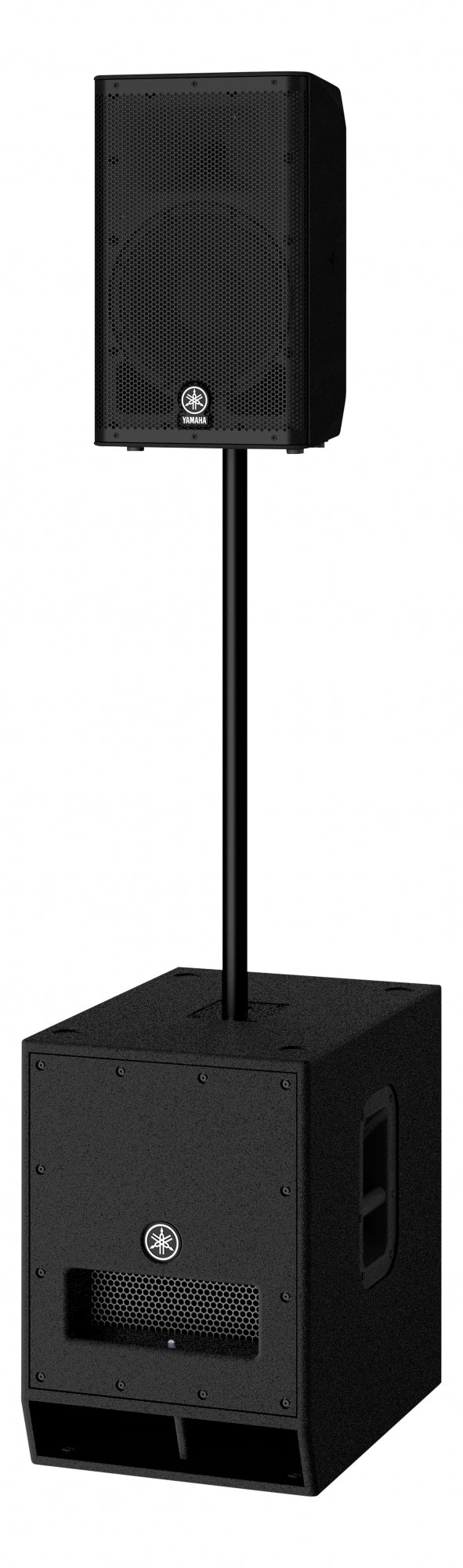

- M20 and Ø35 mm double-pole connector

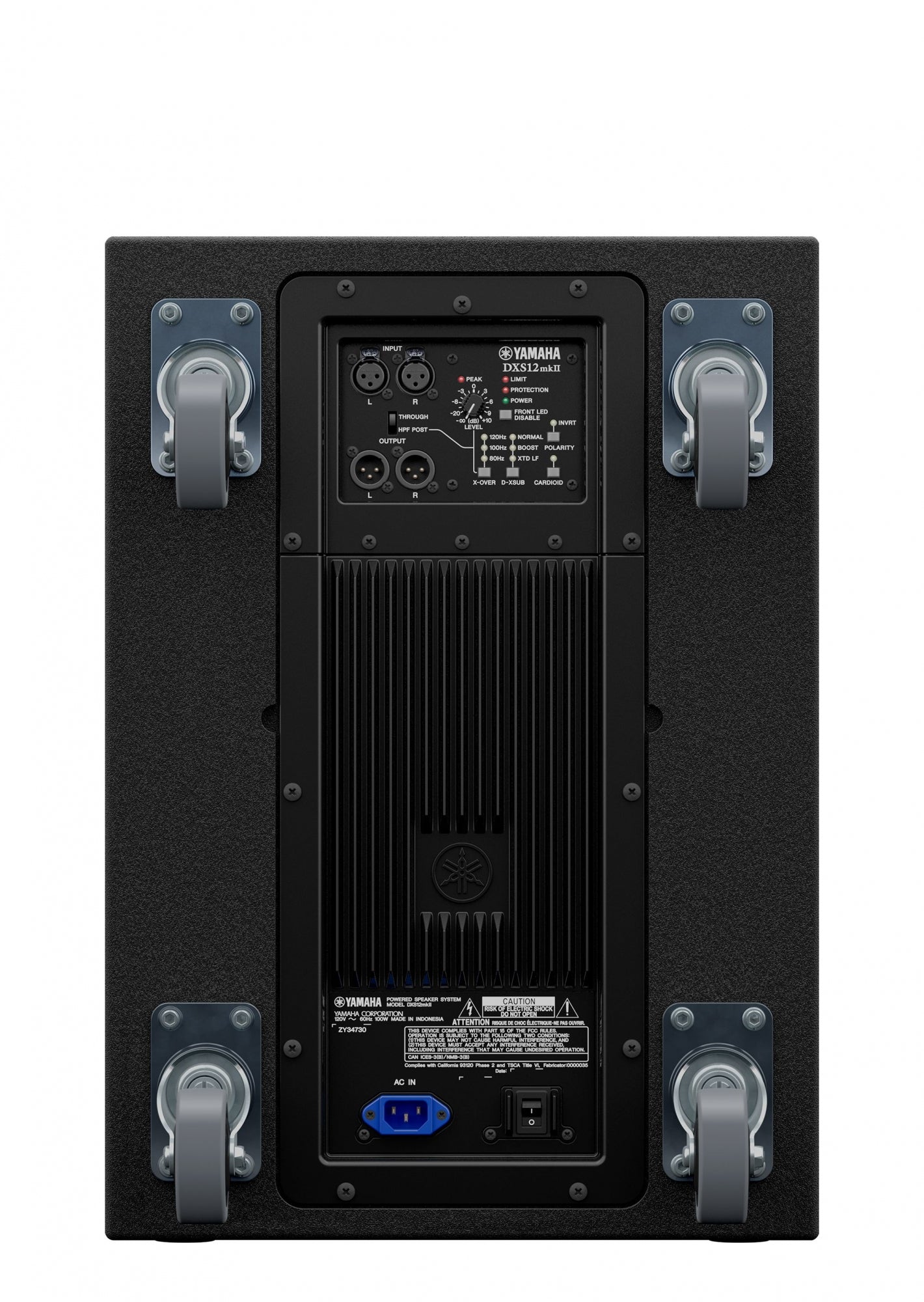

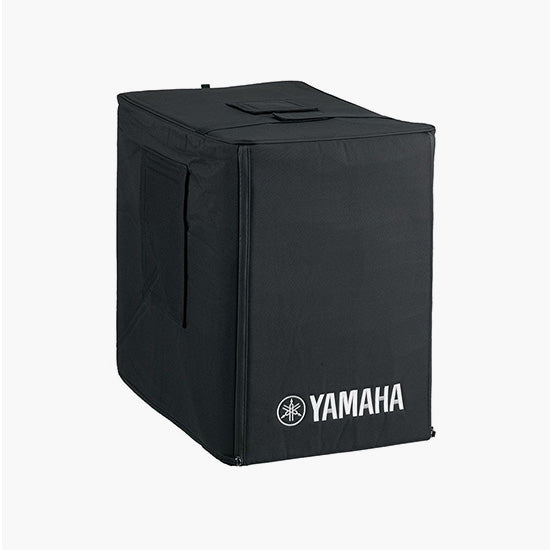

- Accessories: wheels (SPW-1) and Cover (SPCVR-DXS122)
Especificaciones
Especificaciones
-
Weight (kg)
More specifications
More specifications
|
| DXS18 | DXS15mkII | DXS12mkII | |
|---|---|---|---|---|
| Speaker type | 18" Powered subwoofer, Band-pass type | 15" powered subwoofer, Band-pass type | 12" powered subwoofer, Band-pass type | |
| Frequency range (-10dB) | 32Hz - 120Hz | 40 Hz - 150 Hz | 42 Hz - 150 Hz | |
| Components | LF | 18" cone, Voice Coil:4" | 15" cone, 2.5" voice coil | 12" cone, 2.5" voice coil |
| Output power | Dynamic:1020W / Continuous: 800W | Dynamic:1020W / Continuous: 800W | Dynamic:1020W / Continuous: 800W | |
| Maximum output level (1m; on axis) | 136dB SPL | 135 dB SPL | 134 dB SPL | |

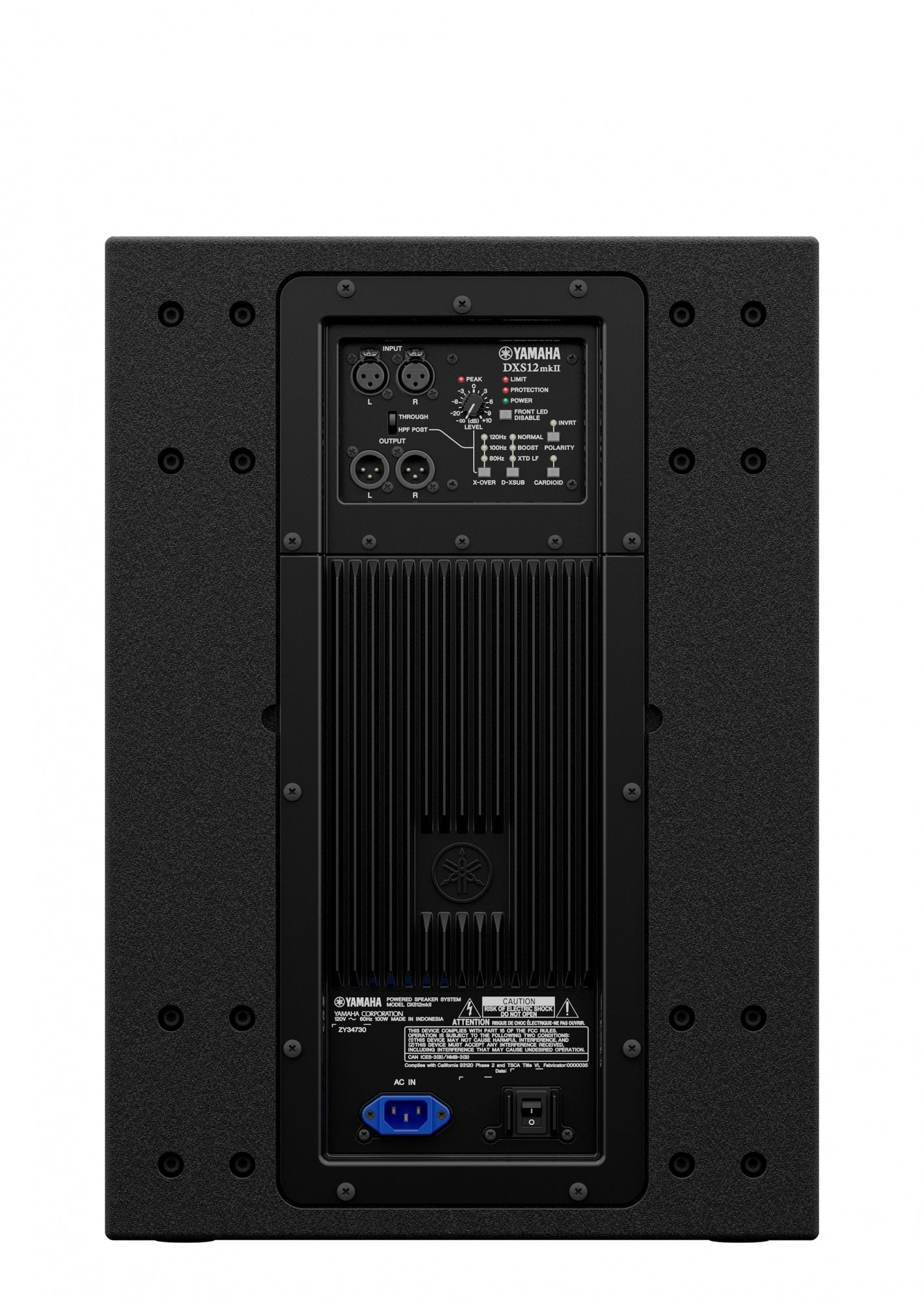

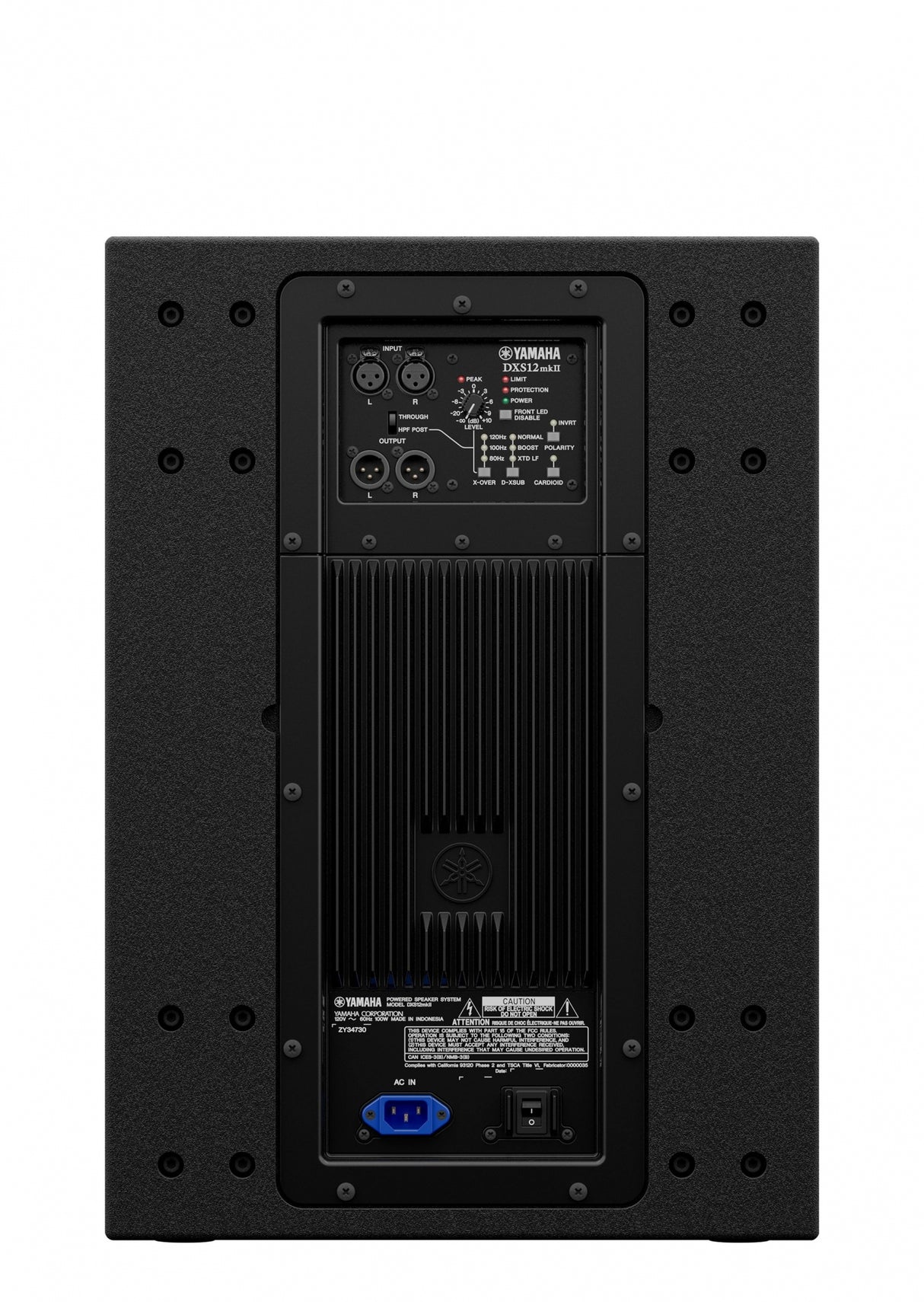

| I/O connectors | INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST) | INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST) | INPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2(Parallel with INPUT) | |
| Processors | D-XSUB: BOOST, XTD LF, NORMAL | D-XSUB: BOOST, XTD LF, NORMAL | D-XSUB: BOOST,XTENDED-LF, OFF | |
| Cooling | Natural convection | Natural convection | Natural convection | |
| Power requirements | 100V - 240V, 50Hz/60Hz | 100V - 240V, 50Hz/60Hz | 100V - 240V, 50Hz/60Hz | |
| Power consumption | 100W | 100W | 100W | |
| Pole socket | 35 mm (depth 80 mm) & M20 (threaded depth 25 mm) | 35 mm (depth 80 mm) & M20 (threaded depth 25 mm) | 35 mm (depth 80 mm) & M20 (threaded depth 25 mm) | |
| Dimensions | W | 563mm (22.2") | 480 mm (18.90") | 400 mm (15.75") |
| H | 683mm (26.8") | 611 mm (24.06") | 567 mm (22.32") | |
| D | 721mm (28.4") | 614 mm (24.17") | 570 mm (22.44") | |
| Net weight | 49.7kg (110lbs) | 36.0 kg (79.4lbs) | 30.0 kg (66.1lbs) | |
| Others | Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black | Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black | Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black | |
Brand: Yamaha
SKU: YAM-DXS12MKII
