Eurolite LED KLS Laser Bar Pro FX-Set

• Complete system with large light output.
• Wireless foot pedal + Alm. remote control
• Strobe
• Flower / Derby Effect
• Laser
• Stand can be purchased

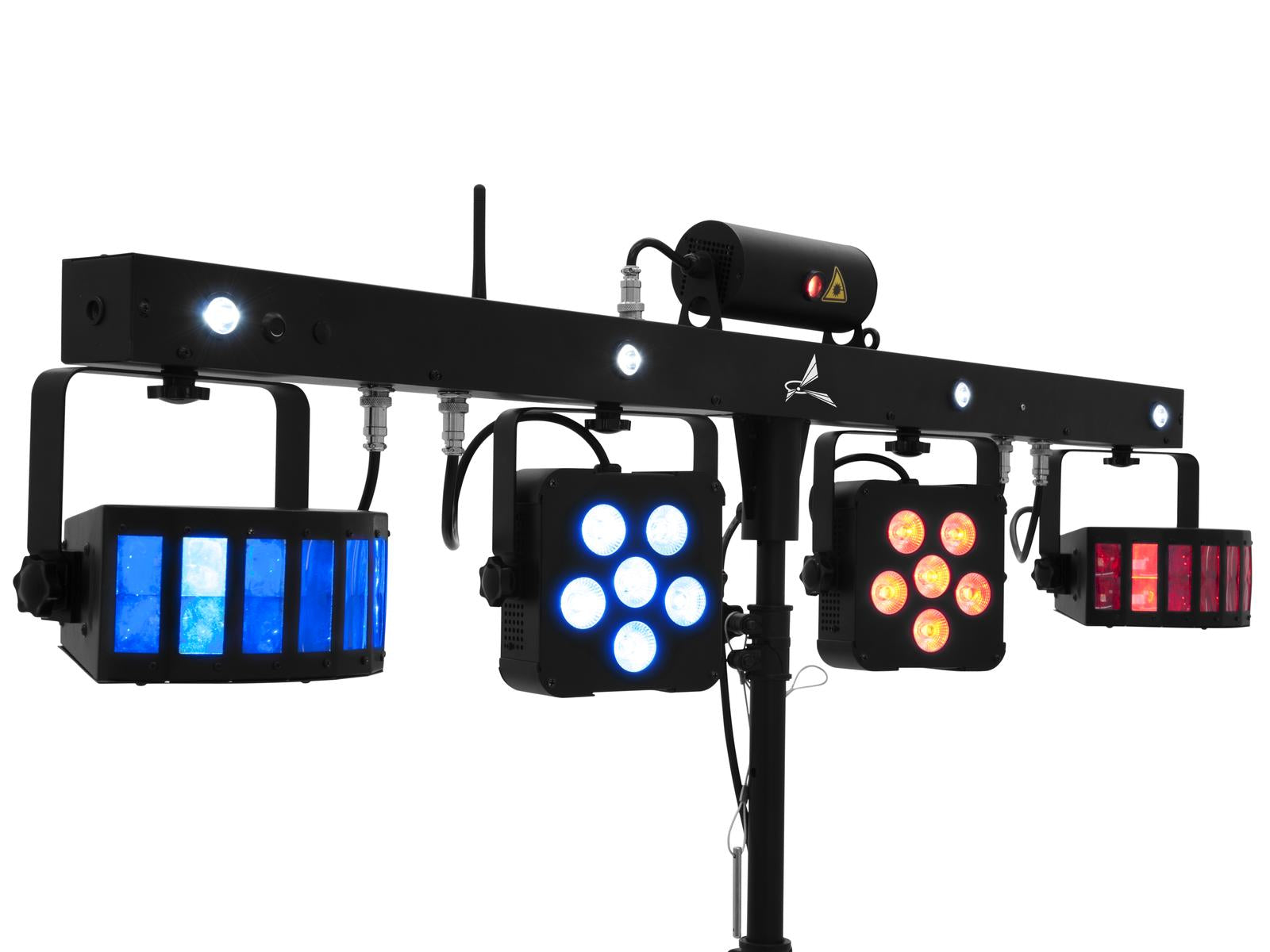

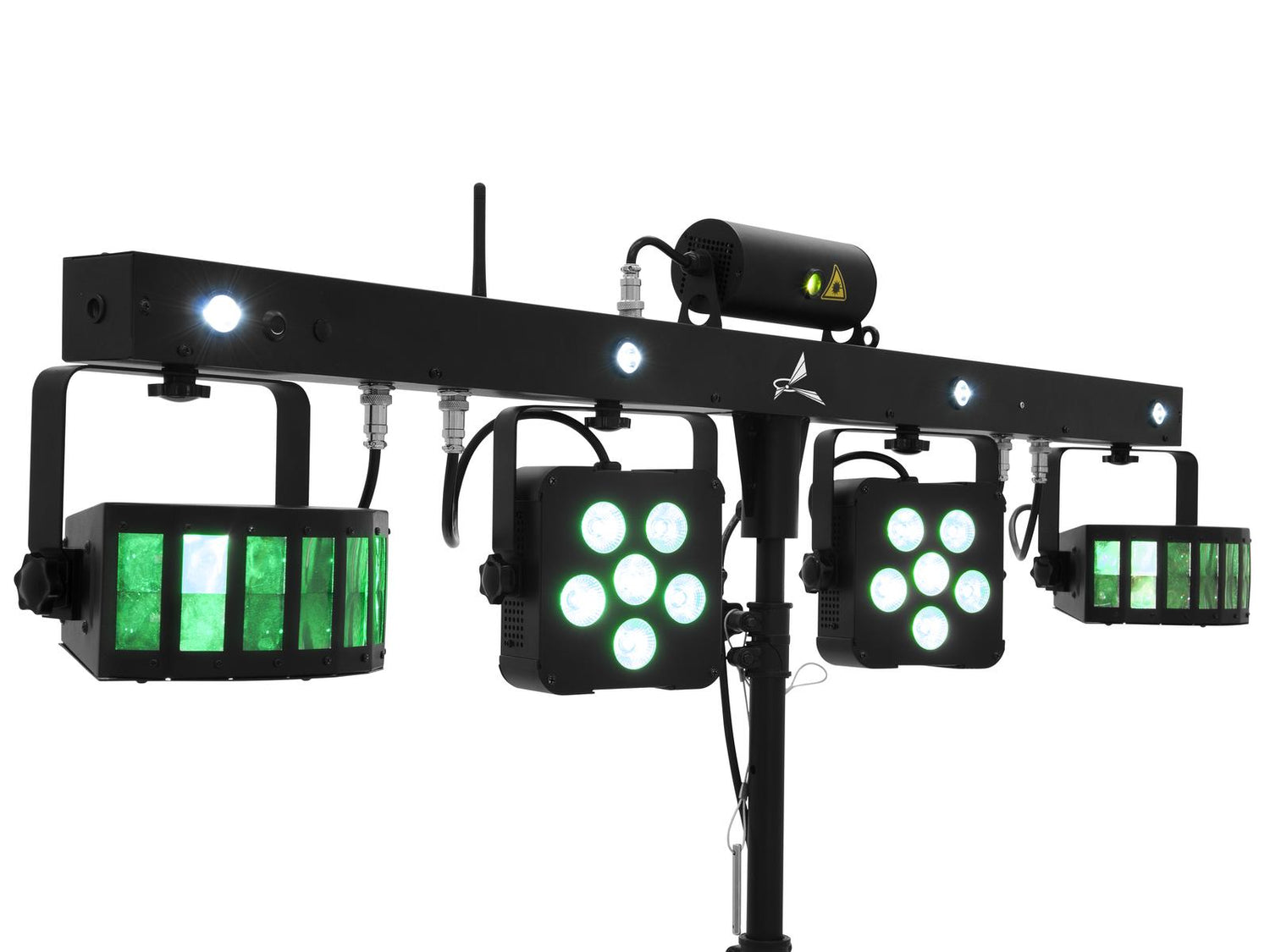

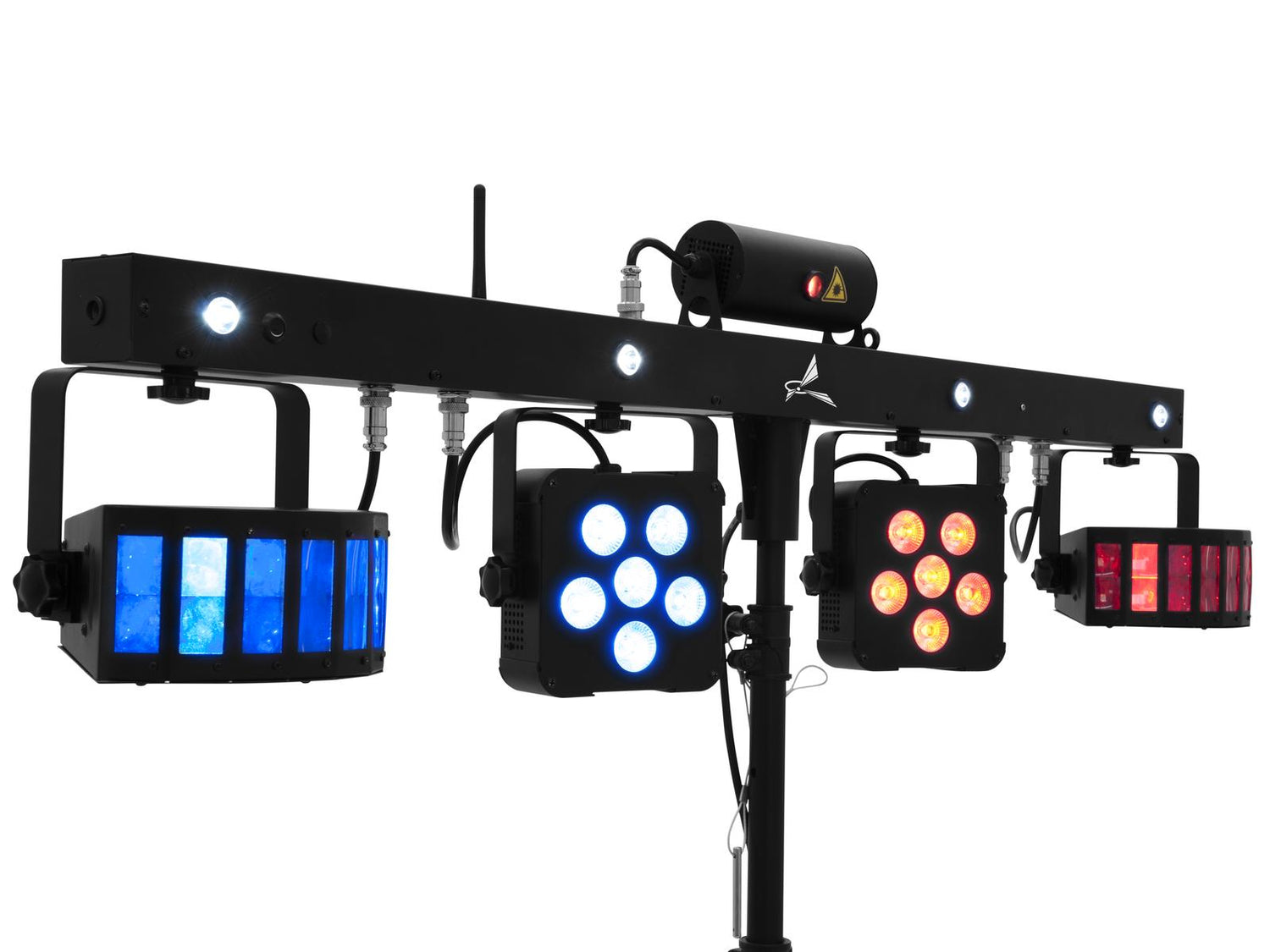

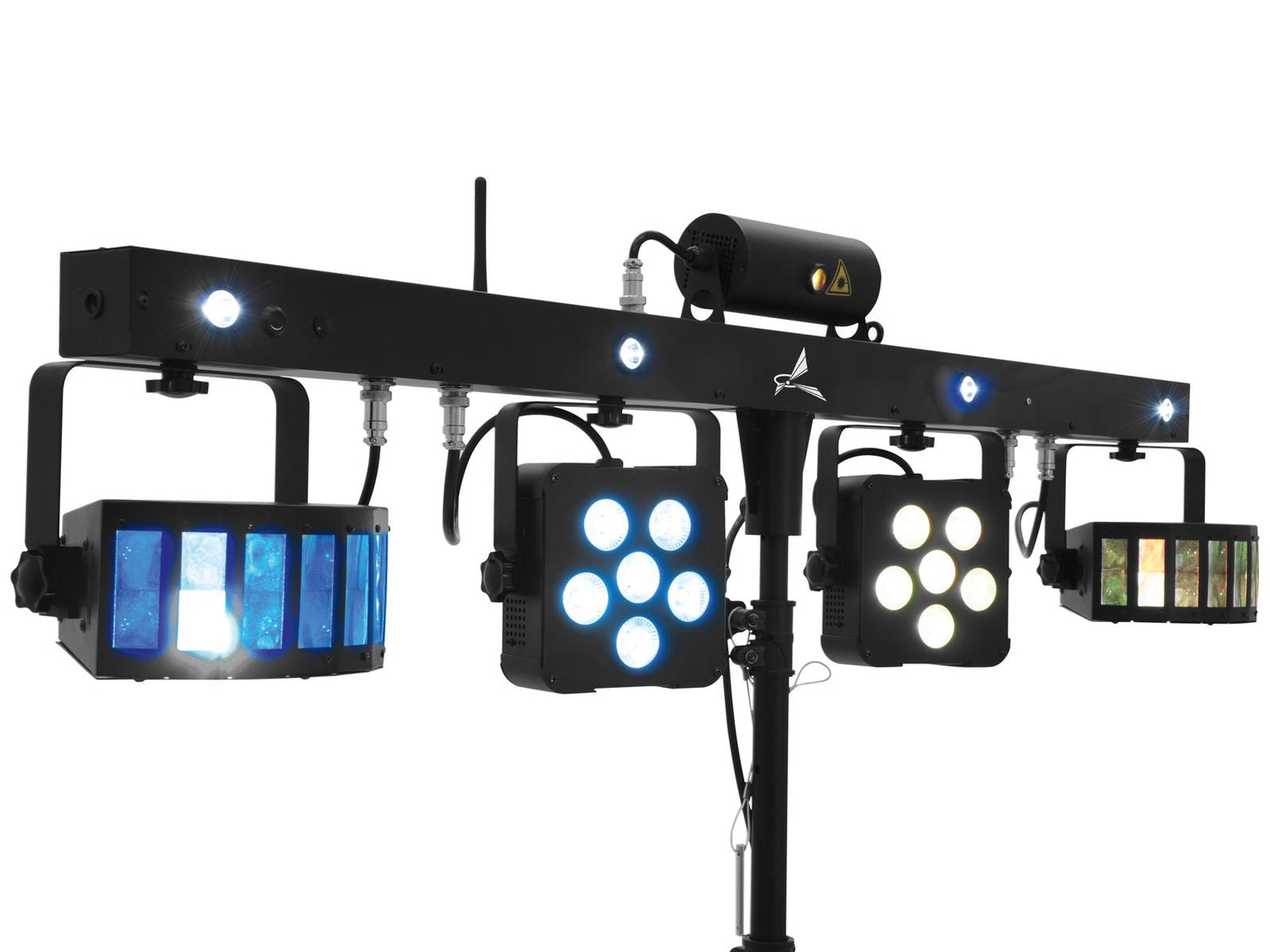

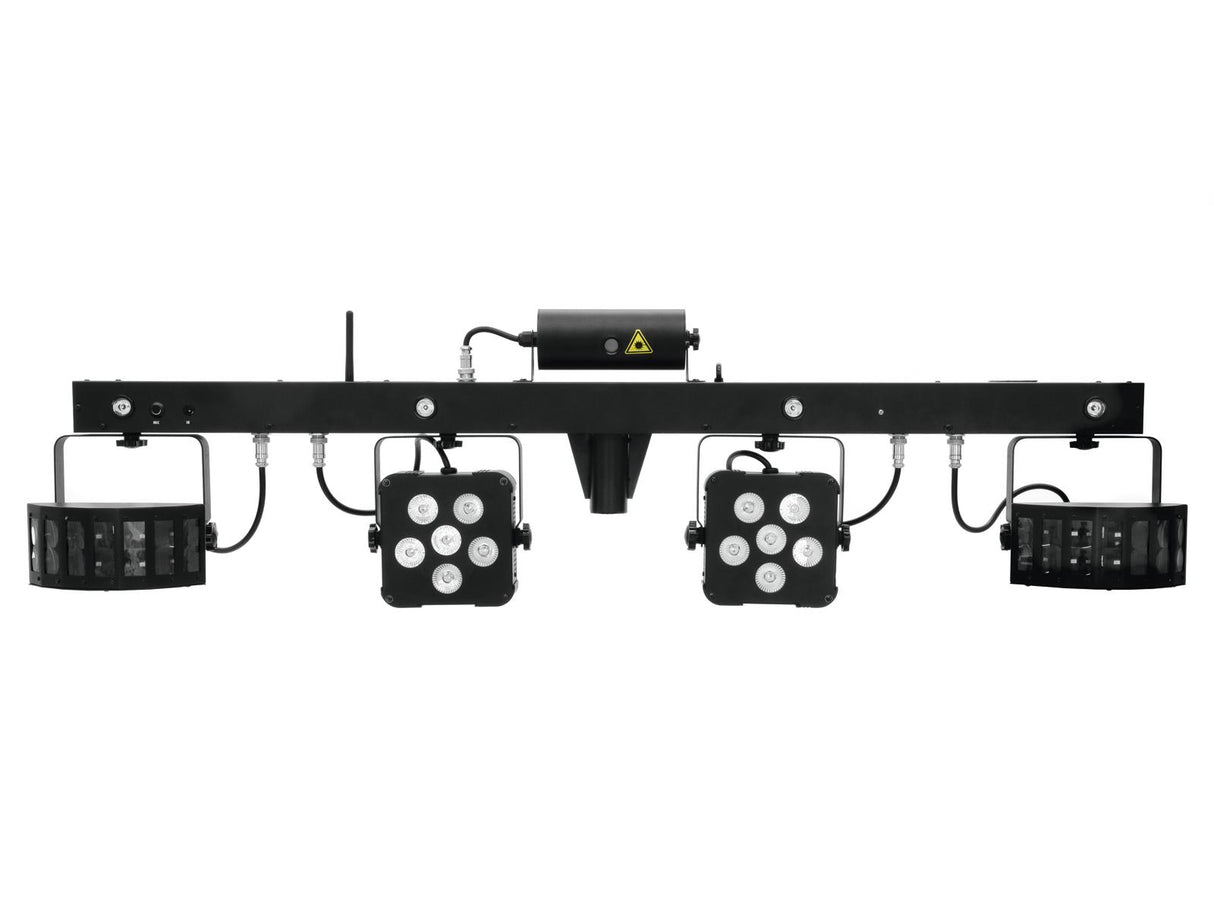

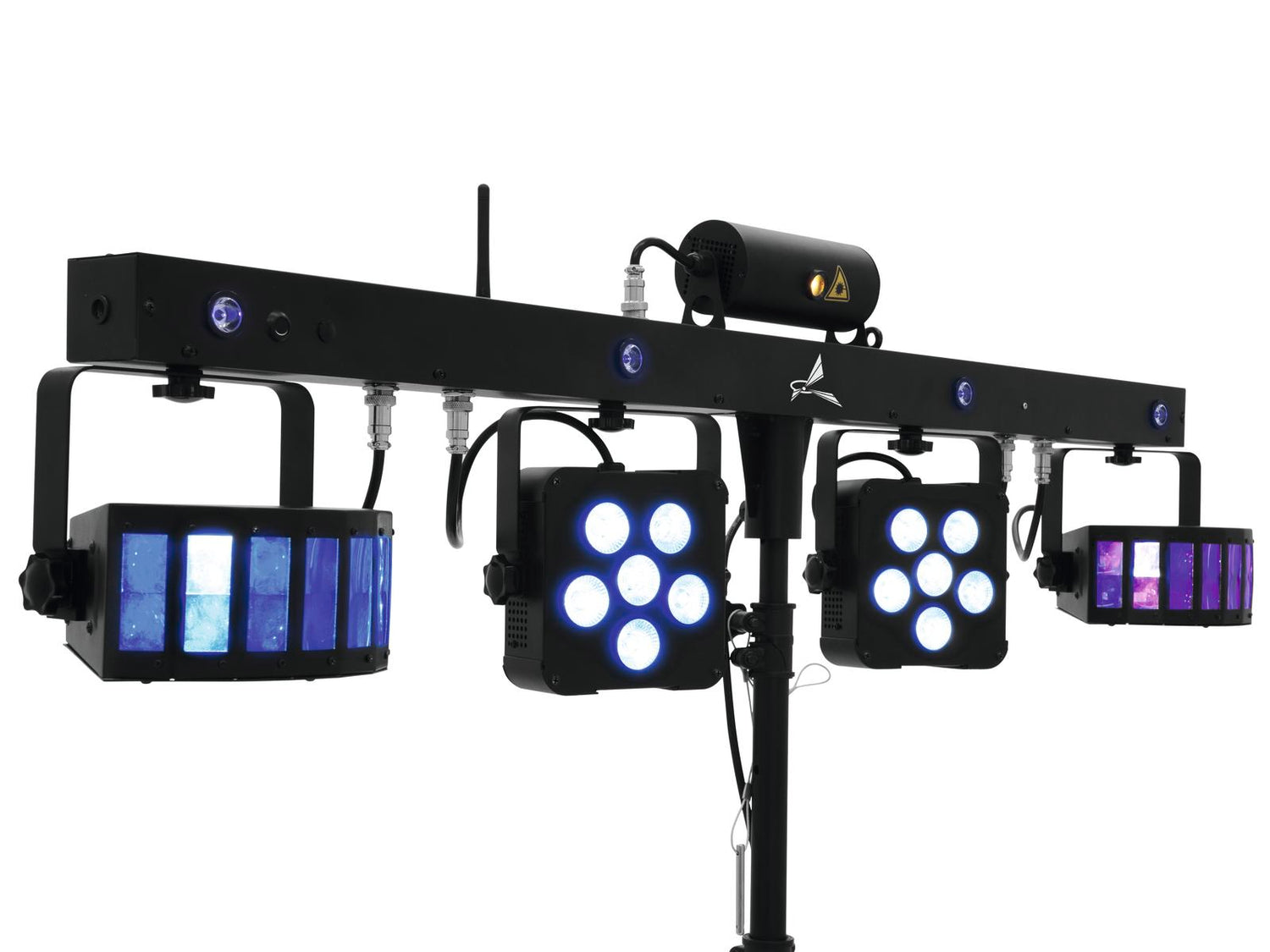

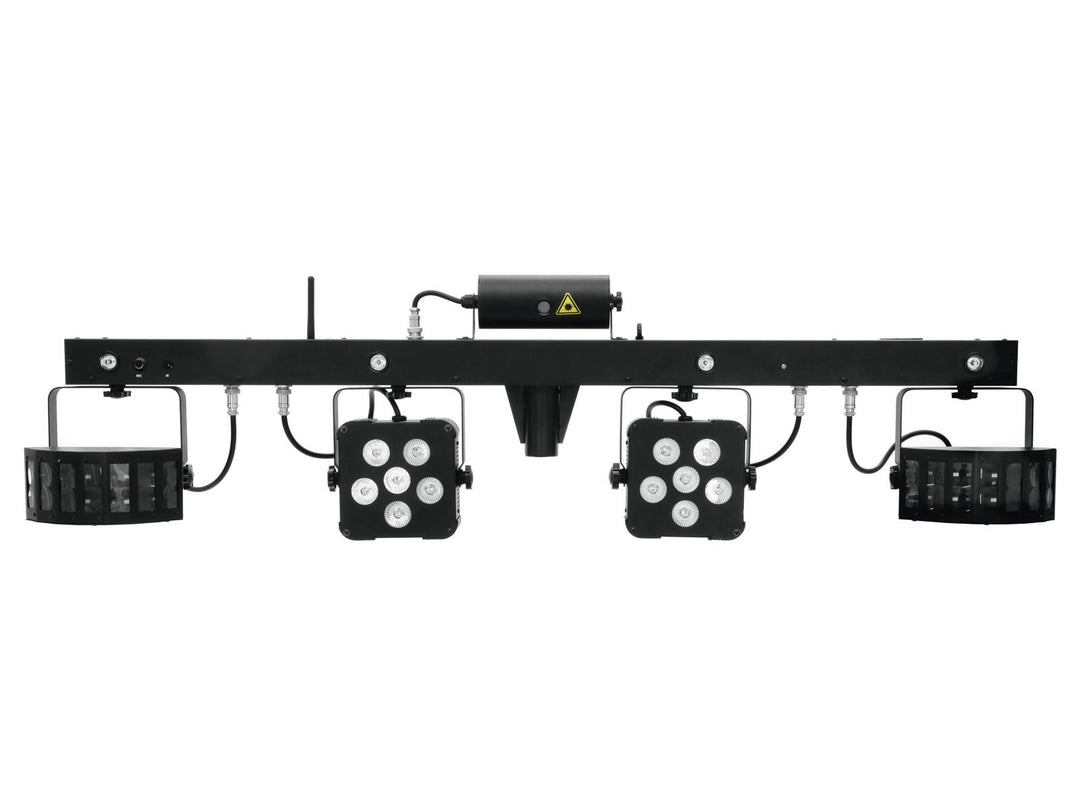

• 4-in-1 DMX light effect bar with laser, 2 rotating LED derby, 2 LED spots and strobe LEDs in white and UV
• Amplified version with very bright light and UV LEDs
• Laser class 2M: requires no additional protection or approval
• Ultra-light ideal for mobile use
• Portable with integrated DMX control unit and safety cover
• Stand not included

• 4-in-1 DMX light effect bar with laser, 2 rotating LED derbies, 2 LED spots and strobe LEDs in white and UV
• Enhanced version with very high brightness and additional UV LEDs
• Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
• Ultra-light ideally suited for mobile use

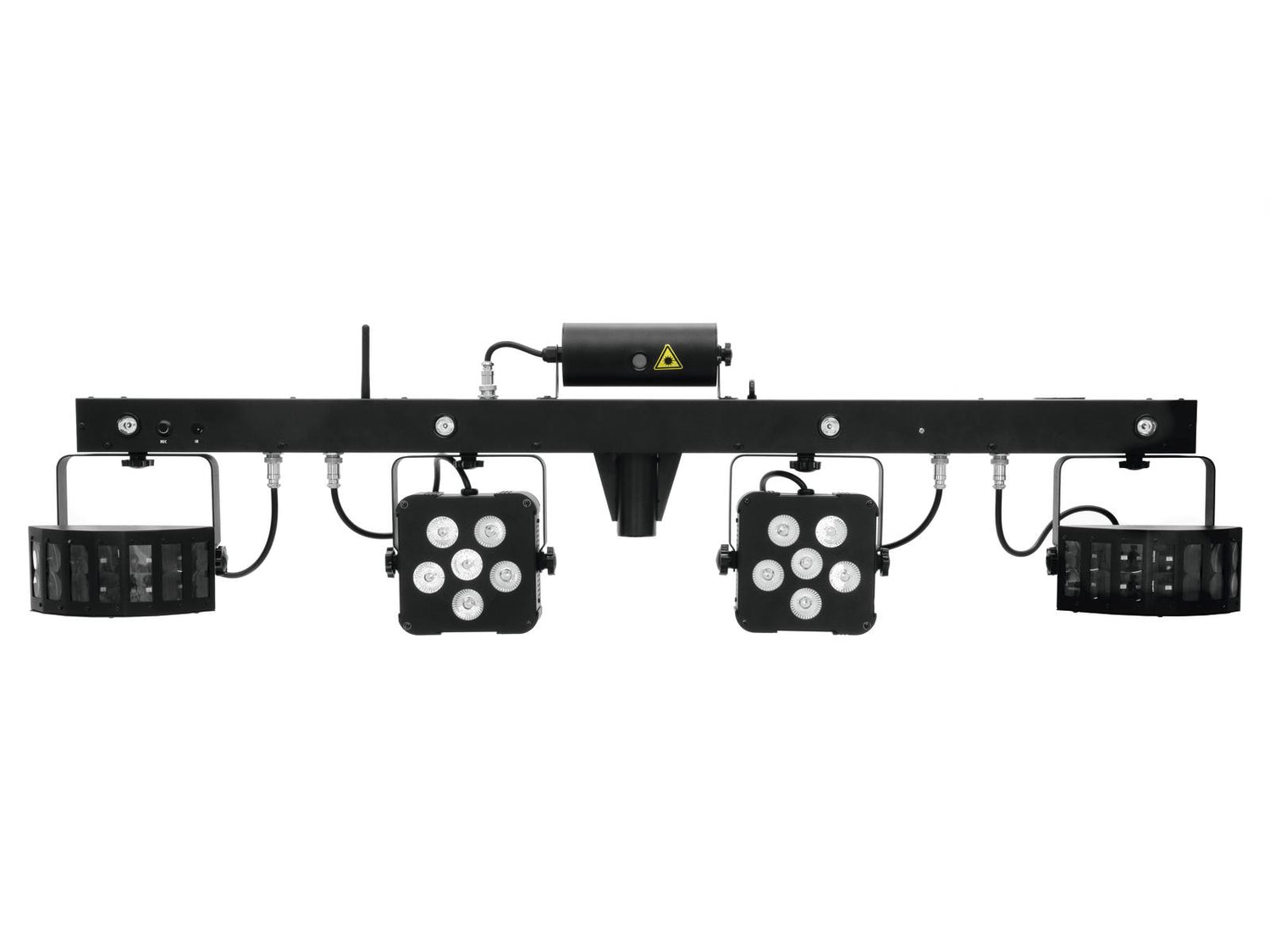

• Crossbar with integrated DMX control unit and stand sleeve

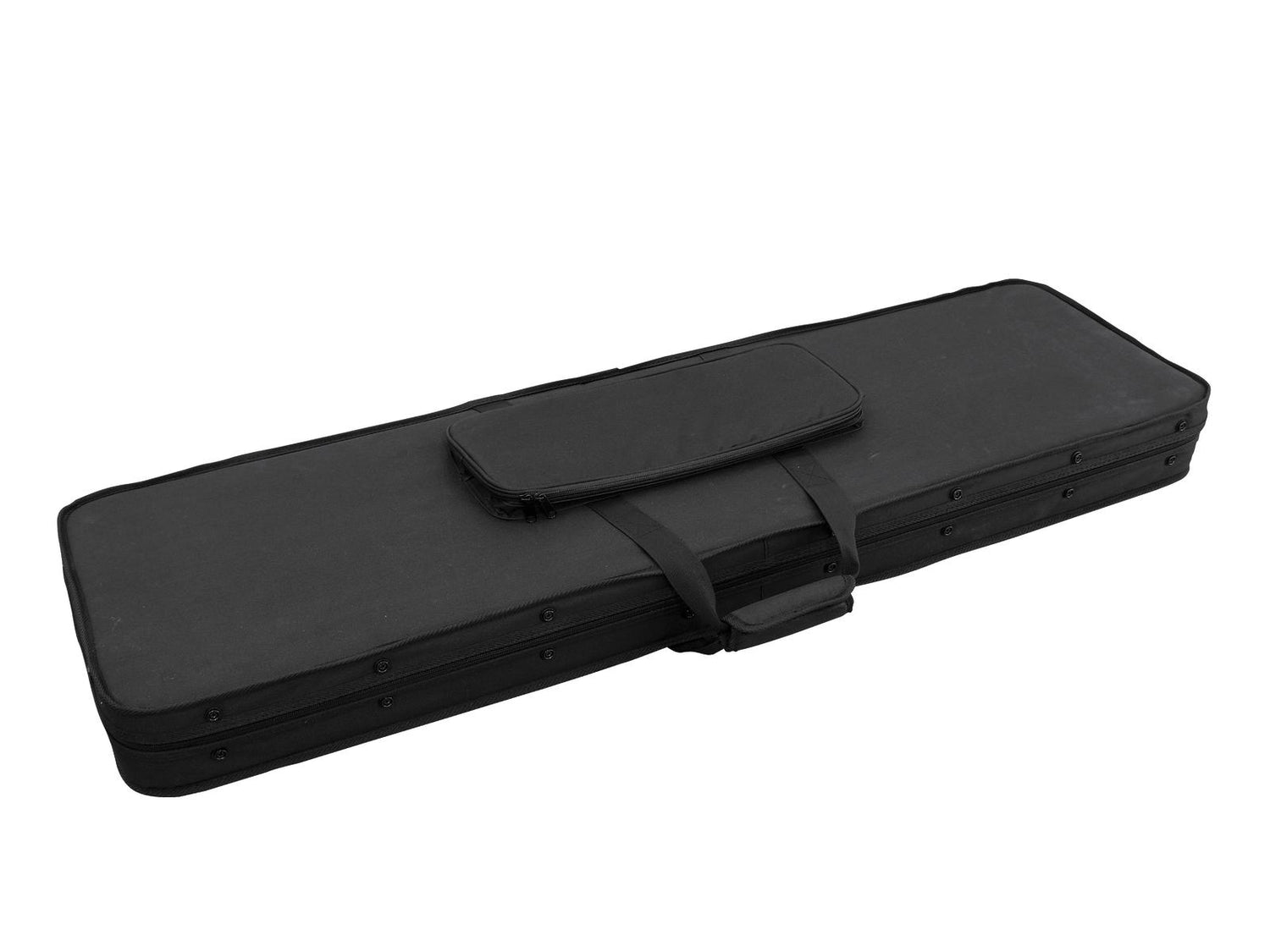

• Comes pre-assembled with practical transport bag
• Convenient control via wireless foot switch and IR remote control
• 2 laser diodes project hundreds of red and green laser beams
• 2 rotating derbies for mirror ball effects with 6 bright LEDs (red, green and blue) each
• 2 spots with 6 bright 3in1 LEDs (red, green and blue) each
• Strobe effect with 4 bright 2in1 LEDs (white and UV )
• Auto, music, master/slave and DMX mode
• 39 built-in auto and music show programs that include all 4 effect units
• Addressing and setting via control panel with 4-digit LED display
• Sound-control via built-in microphone with sensitivity control
• Swivel mounting brackets for truss mounting
• When fog is used, this effect becomes especially attractive
• IEC terminals for power linking up to 8 units
• Switch-mode power supply for operation between 100 and 240 volts
• LED: Spot 2 x separate controlling each with 4 x high-power 2 W 2in1 BCL CW/UV (homogenous color mix)
• LED: Multi beam effect 2 x separate controlling each with 6 x high-power 2 W RGB
• LED: Strobe effect 6 x separate controlling with 6 x high-power 6 W 3in1 TCL RGB (homogenous color mix)
• Can be operated in 3; 5; 10; 28 CH mode
• Control: Sound to light via Microphone; Wireless footswitch; IR remote control; Stand-alone; DMX; preprogrammed in EASY SHOW
• Effect: Multi beam effect; Strobe effect; laser

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 150 W
• IP classification: IP20
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Power output: 1 x IEC connector (F) mounting version
• Fuse: 5 x 20 mm, T 3.15 A
• Lamp type: LED lamp
• DMX channels: 3; 5; 10; 28
• DMX input: 1 x 3-pin XLR (M) mounting version
• DMX output: 1 x 3-pin XLR (F) mounting version
• Cooling: Cooling fan
• Control:
  • Stand-alone
  • DMX
  • IR remote control
  • Sound to light via Microphone
  • Wireless footswitch
  • Master/slave function
• Preprogrammed in:
  • EASY SHOW 1
  • Light´J
  • LED PC-Control 512
  • Light Captain
  • EASY SHOW 2
  • EASY SHOW 3
• Housing color: Black
• Attachment system: 2x Mounting bracket
• Dimensions:
  • Width: 1,030 cm
  • Depth: 6.1 cm
  • Height: 38.7 cm
• Weight: 10.00 kg
• Noise classification: Class 2 (slight noise)
• Power cord length: 3 m

Laser:

• Laser class: 2M
• Laser color: R/G
• Laser module:
  • Red (R) 100 mW 650nm
  • Green (G) 30 mW 532nm

Spotlight:

• LED: 6 x 6 W high-power 3in1 TCL RGB (homogenous color mix)
• Flash rate: 0 - 30 Hz
• Beam angle: 13°
• Beam angle (1/2 peak): 13°
• Beam angle (1/10 peak): 20°

Light effect:

• LED: 6 x 2 W high-power R/G/B
• Flash rate: 0 - 30 Hz

Bar:

• LED: 4 x 2 W high-power 2in1 BCL CW/UV (homogenous color mix)
• Flash rate: 0 - 30 Hz

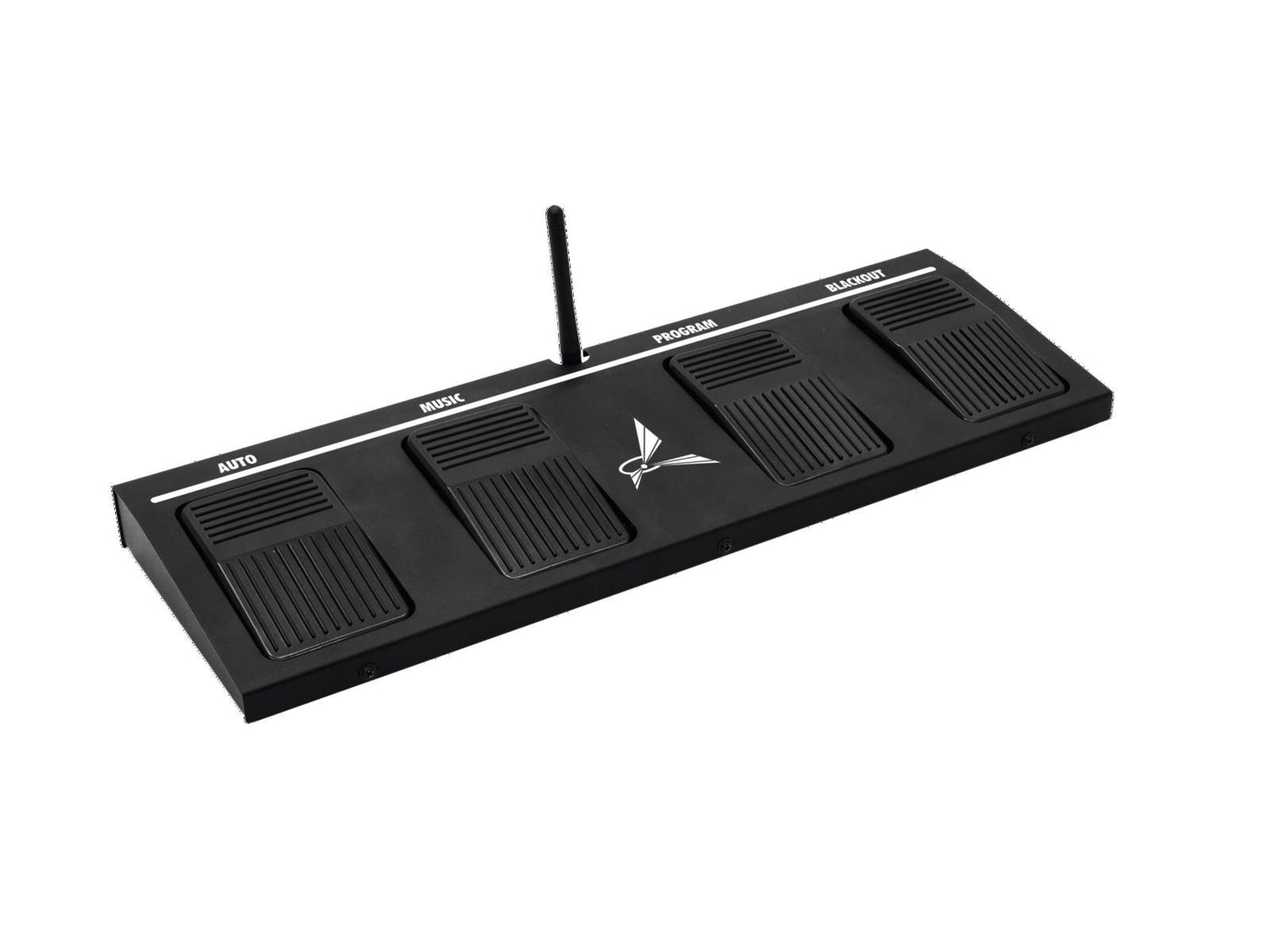

Foot control:

• Battery: 1 x 9.0 V E block 6F22 zinc carbon included

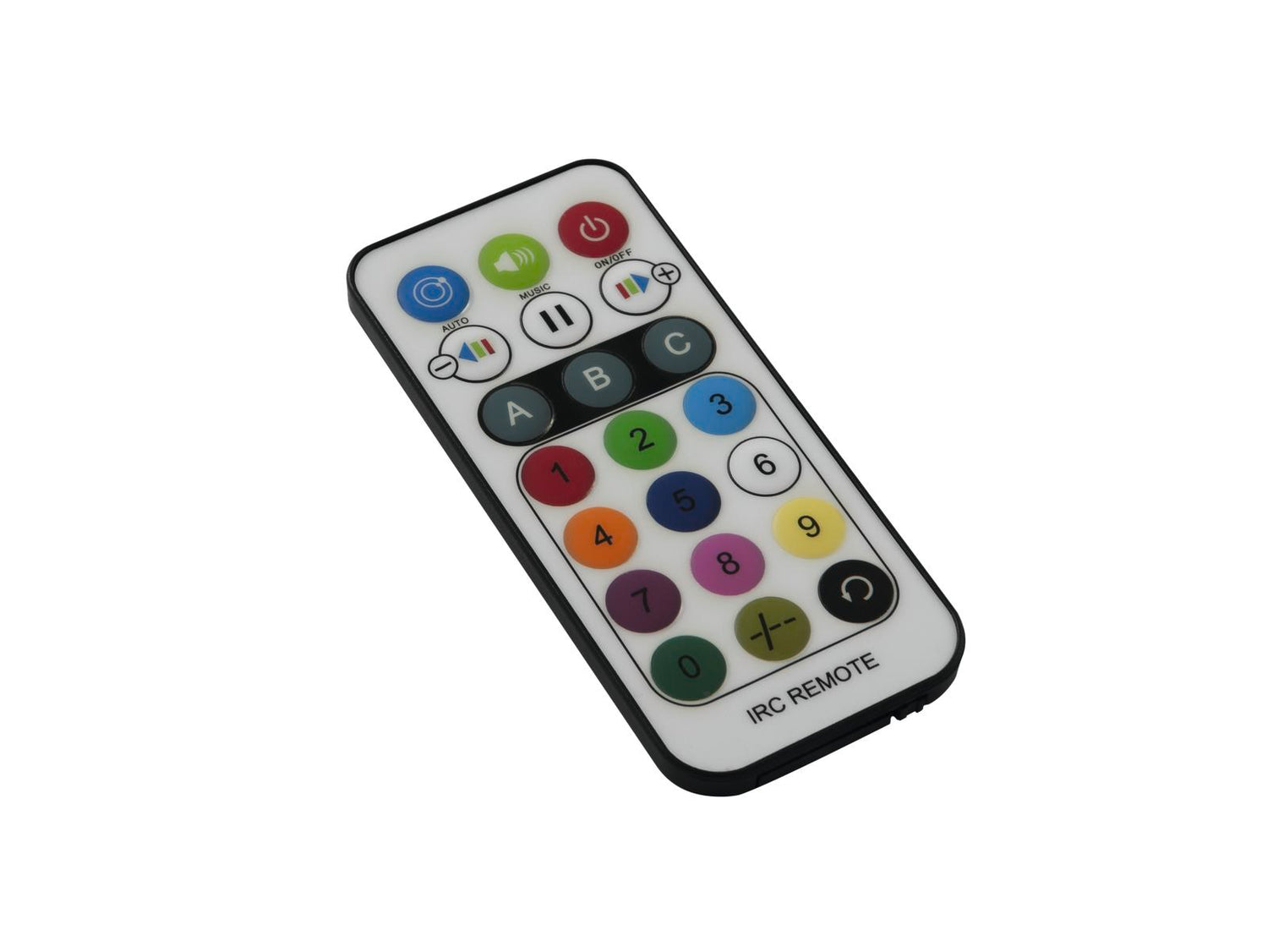

Remote control:

• Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in

Package contents:

• 1 x device
• 1 x power cord
• 1 x user manual
• 1 x declaration of conformity
• 1 x remote control
• 1 x foot control
• 2 x knurled screw
• 2 x washer
• 2 x mounting bracket
• 1 x battery
• 1 x bag
