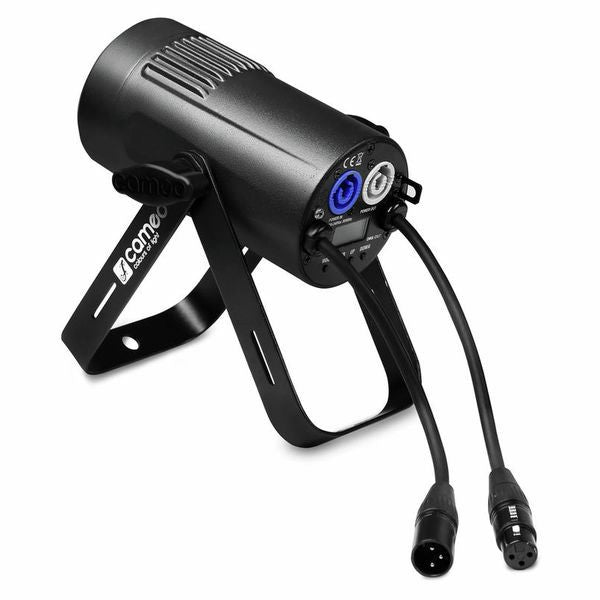

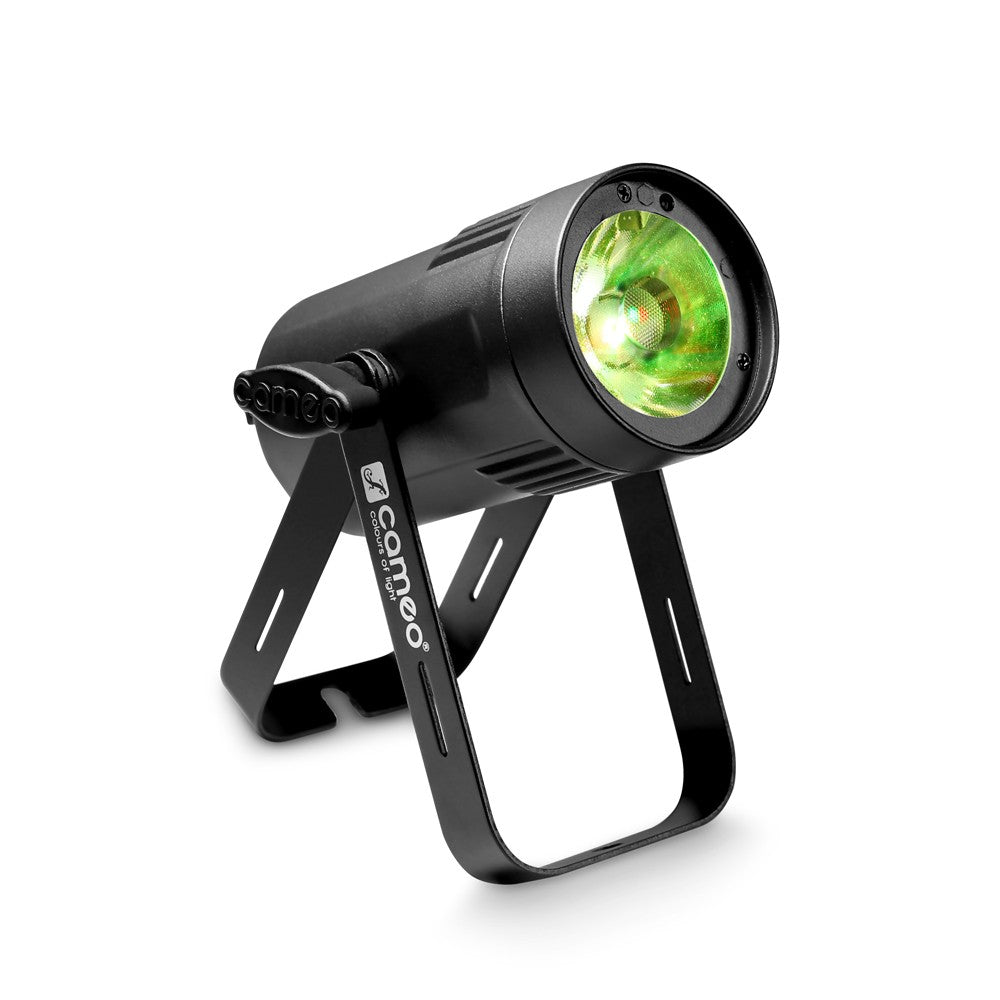

Cameo Q-Spot 15 RGBW

• Compact LED spot light with single 15 watt quad LED
• 2 additional lenses for beam angles of 4.5°, 10° or 25°
• RDM capable
• 16-bit technology for high definition colours and ultra smooth dimming
• Flicker free, ideal for motion picture and TV applications
• Colour temperature correction
• 4 high resolution dimming curves with adjustable response
• 5 modes of DMX control, sound activation plus master, slave and standalone capability
• Infrared remote control included
• 4-button OLED display for easy configuration
• Convection cooling for noise-free performance

Product type

LED PAR Lighting

Type

Indoor

Colour spectrum

RGBW

Number of LEDs

1

LED type

15 W RGBW

Refresh rate

3600 Hz

Dispersion

10 ° , 25 ° , 4.5 °

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

DMX mode

2-channel , 3-channel 1 , 3-channel 2 , 4-channel , 9-channel

DMX Functions

colour jump , colour macro , master dimmer , RGBW , sound control , strobe

High Speed Strobe

20 Hz

Standalone modes

Auto run , colour fade, colour jump , colour macro , slave mode , sound control

Controls

down , Enter , mode , up

Indicators

OLED Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

18 W

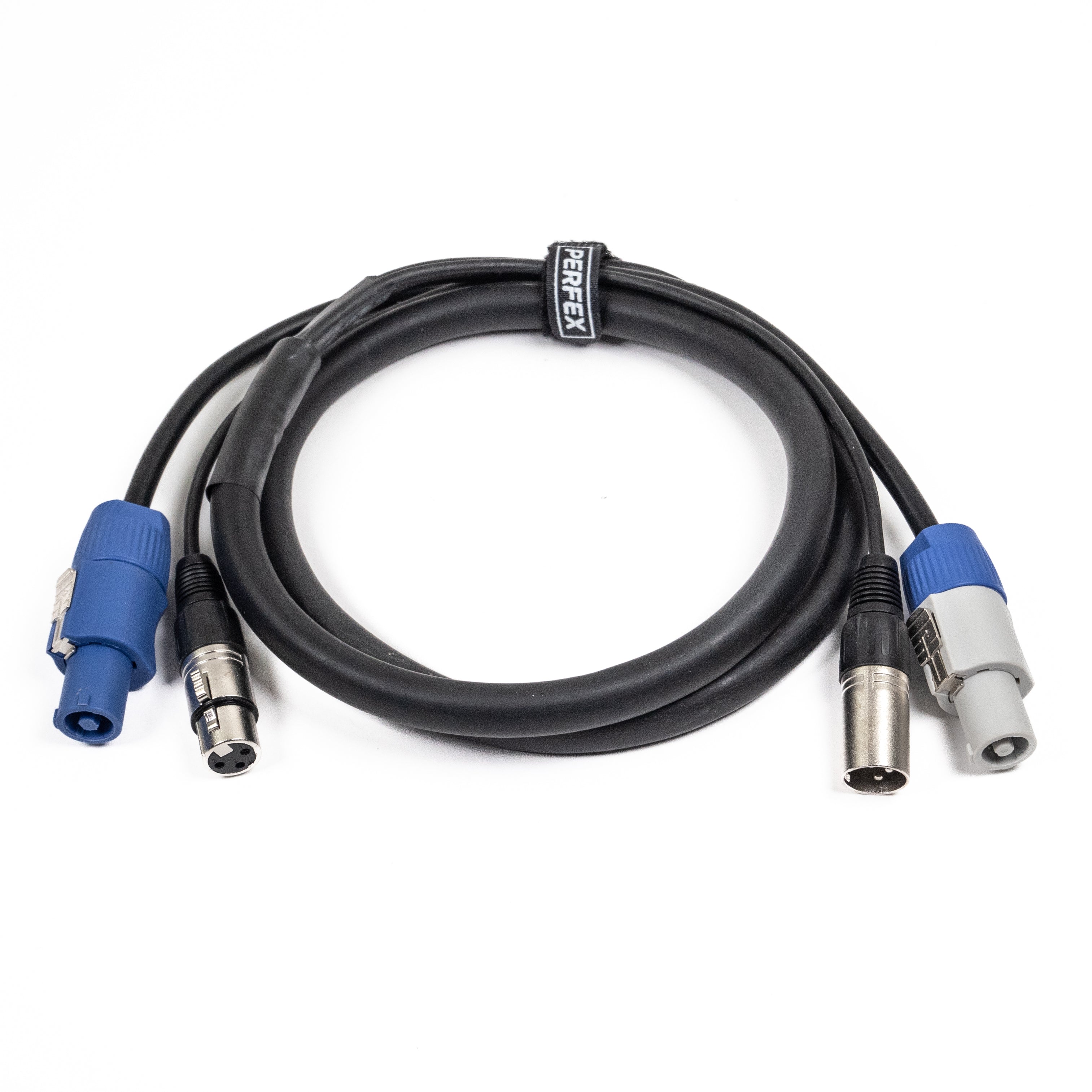

Power connector

Blue and white power I/O

Housing material

metal

Cabinet colour

polished

Cooling

Convection

Illuminance

24000lx @ 1m

Width

89 mm

Height

89 mm

Depth

172 mm

Weight

1,2 kg
