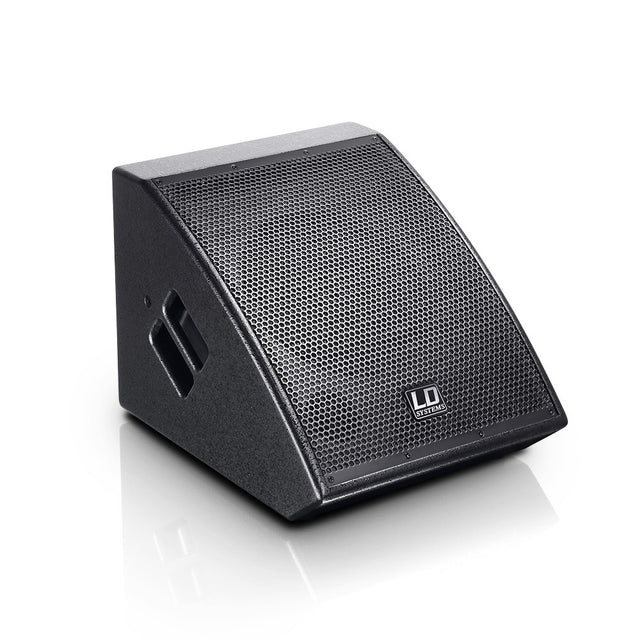

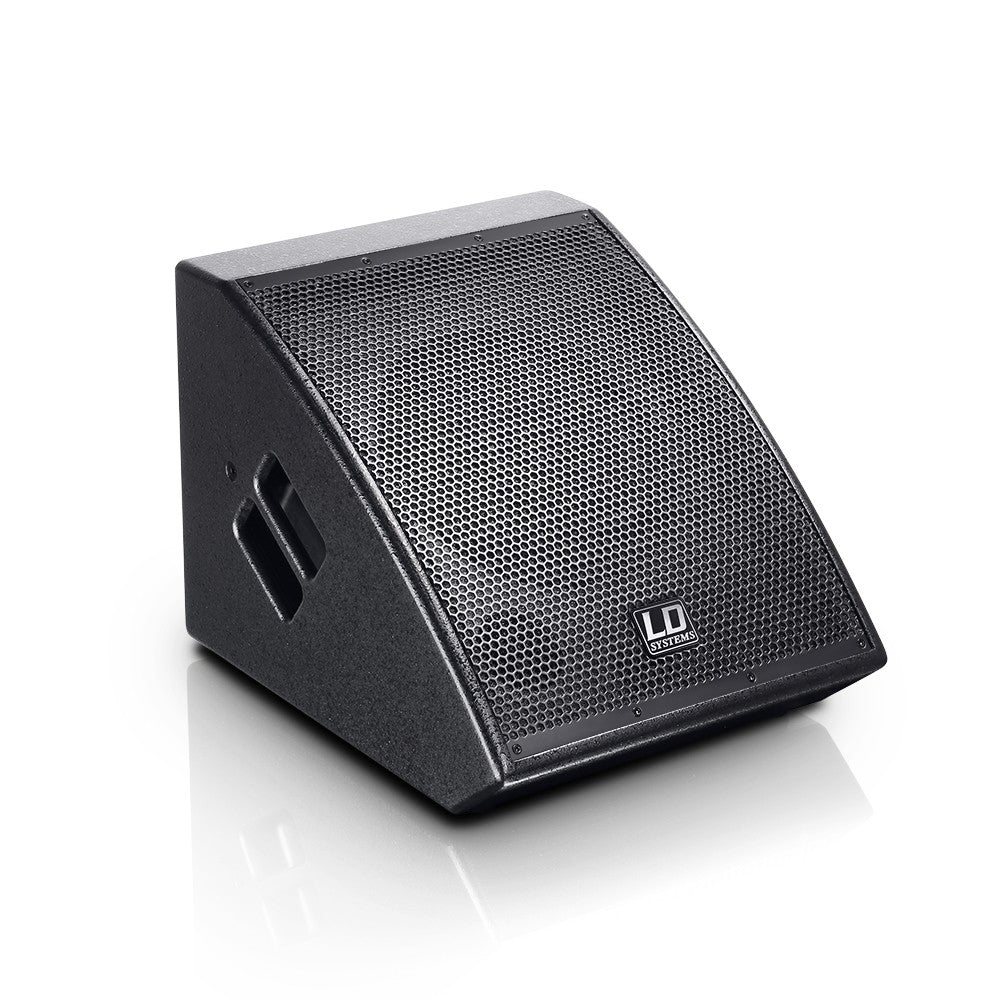

LD Systems MON-101A G2, Active Stage Monitor
Descripción
Descripción
- 150W. RMS.
- 99 SPL (1W/1m)
- 10" Coaxial speaker with an integrated 1" HF driver.
- Dispersion angle of 75° x75°.
- Very low sensitivity for feedback.
- Short circuit protection and Limiter ensure reliable drift.
- Adjustable volume and power switch directly on the monitor.
LD Systems Stinger MON-101A G2
This is an extremely compact active monitor, with a very wide frequency range and a maximum sound level pressure of 121dB.
Especificaciones
Especificaciones
-
ColorBlack
-
Weight (kg)
More specifications
More specifications
Product type
PA loudspeaker
Type
Active
Low/mid driver dimensions
10 "
Woofer size
254 mm
Woofer type
coaxial loudspeaker
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil
2 "
Woofer voice coil (mm)
50.8 mm
HF driver dimensions
1 "
HF Driver Size
25.4 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
HF driver voice coil
1 "
HF Driver Voice Coil
25.4 mm
Amplifier
Class A/B
Dispersion (H x V)
75 x 75 °
RMS
150 W
Peak power
600 W
Frequency response
90 - 20000 Hz
Crossover frequency
3300 Hz
SPL (1W/1m)
99 dB
Max. SPL (continuous)
113 dB
Max. SPL (peak)
121 dB
Protection circuits
limiter , short circuit

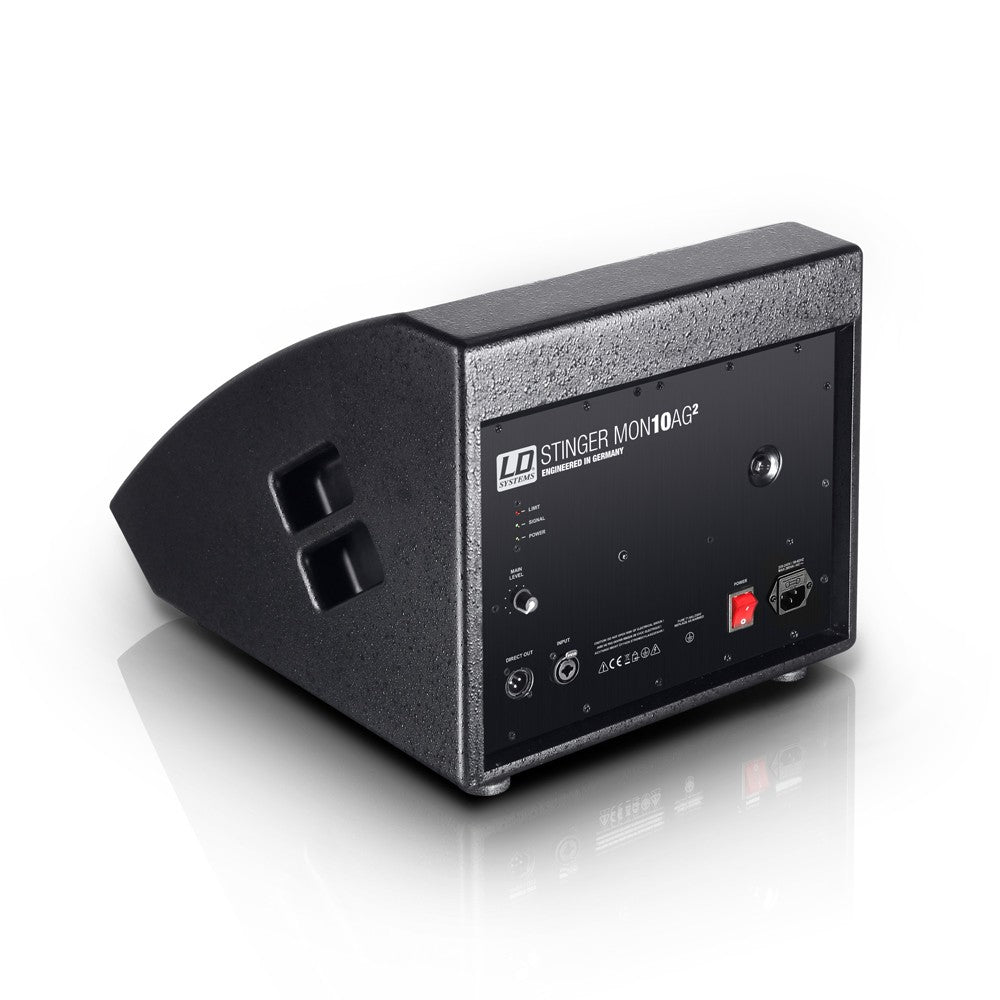

Controls
On / Off , volume
Indicators
Limit , Power , Signal
Line Inputs
1
Line input connectors
6.3 mm jack , XLR
Line Outputs
1
Line output connectors
XLR
Operating voltage
transformer
Operating voltage
230 V AC / 50-60 Hz
Cabinet material
15 mm Plywood
Cabinet construction
vented
Monitor angle
35 °
Width
380 mm
Depth
335 mm
Height
466 mm
Weight
15,3 kg
Features
ergonomically shaped insert handles
