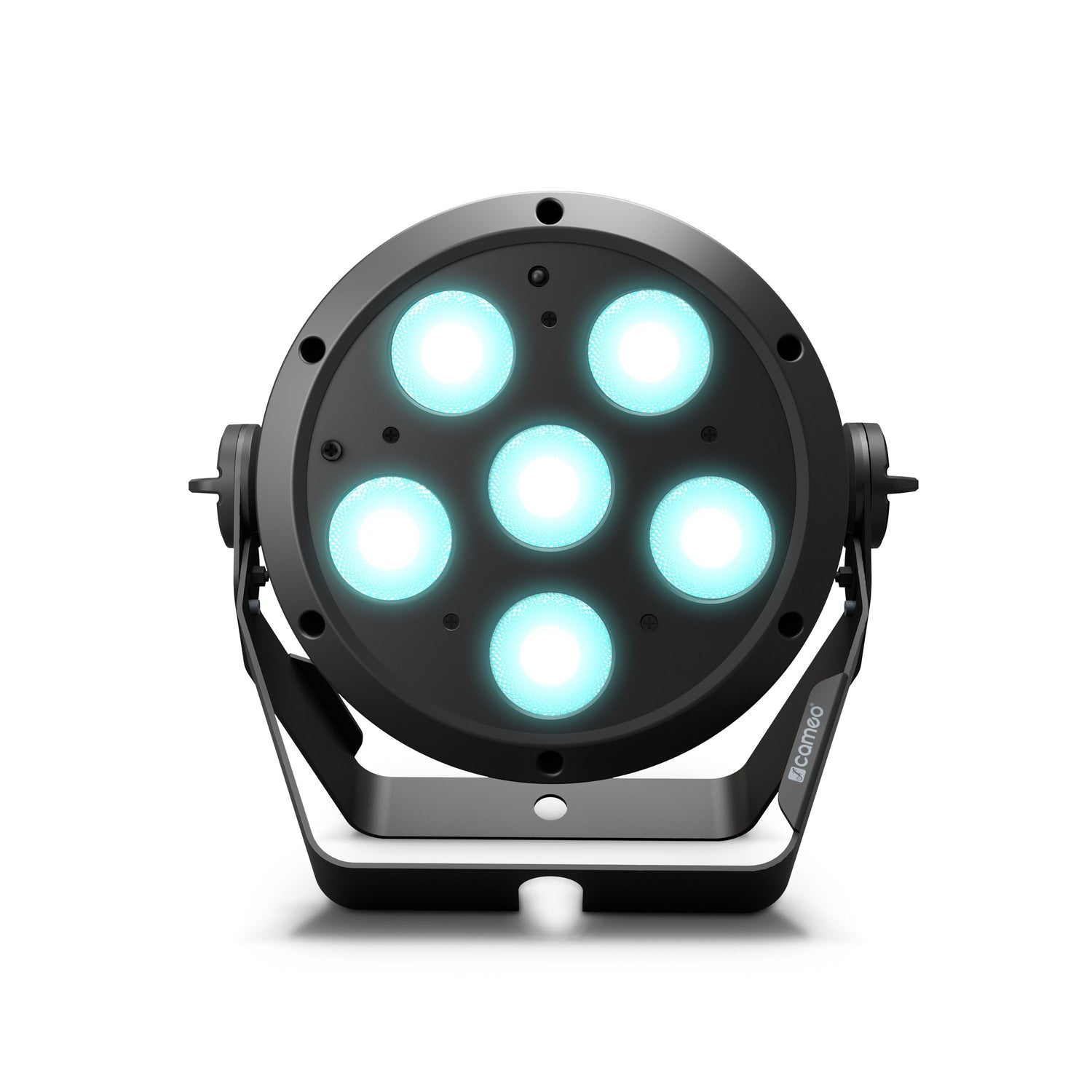

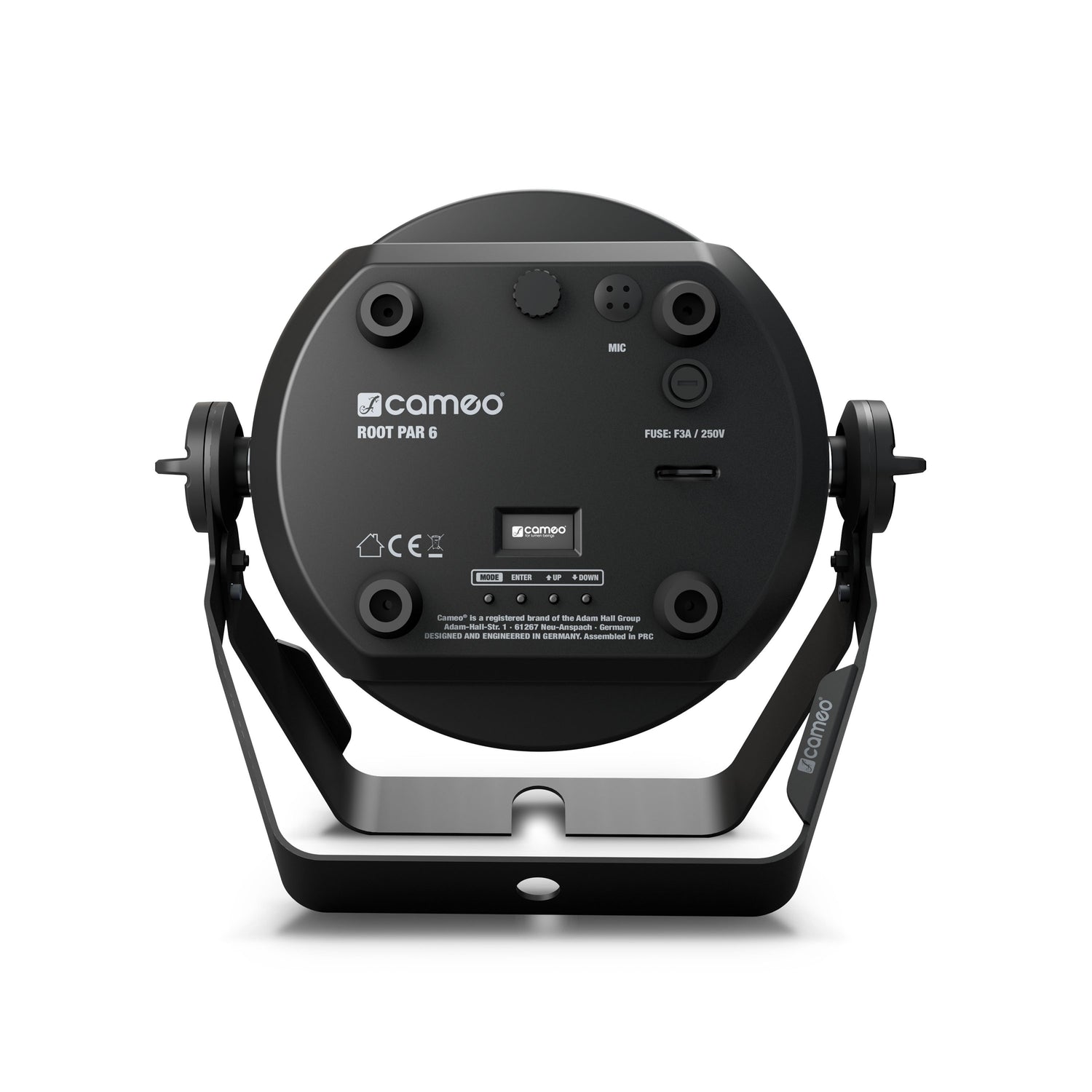

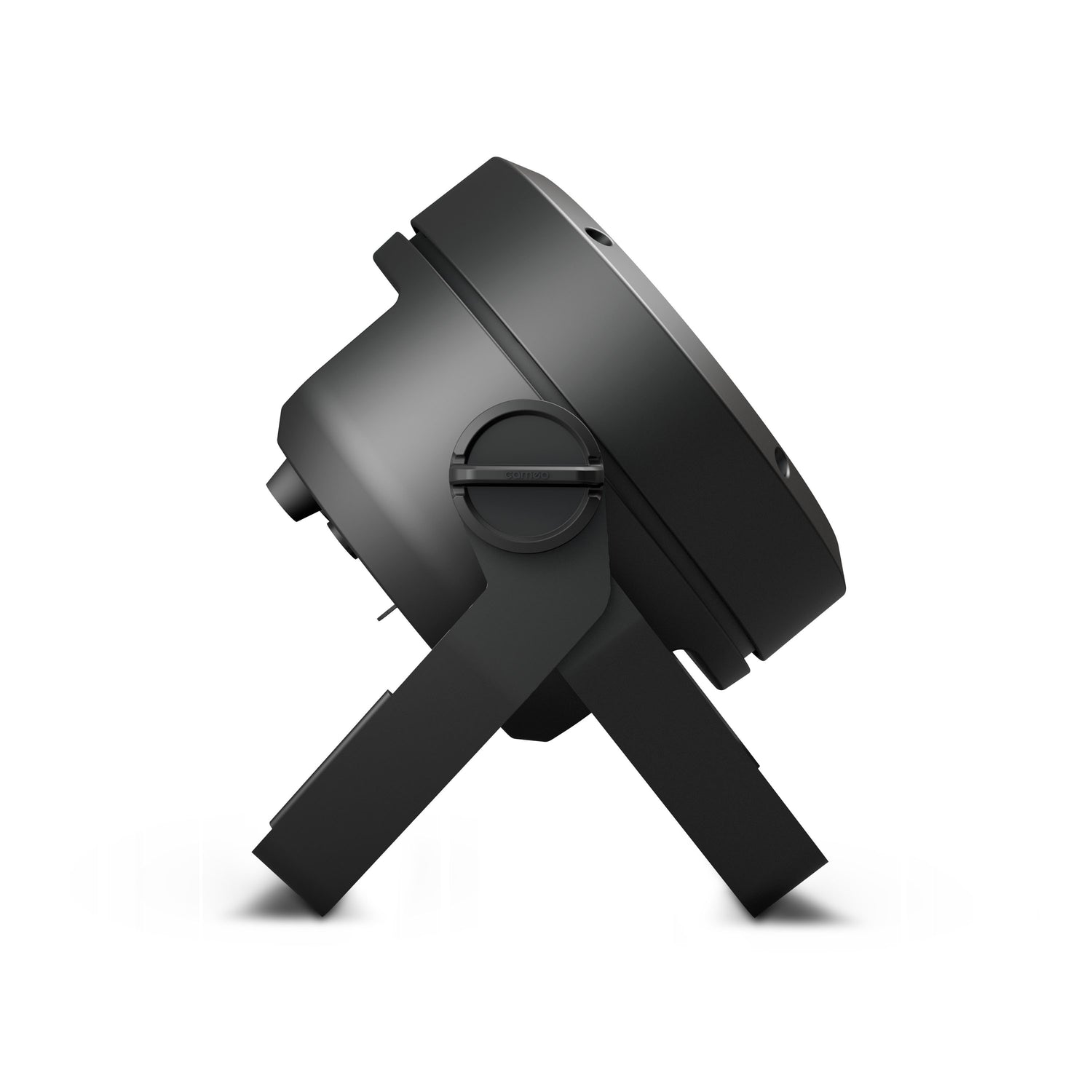

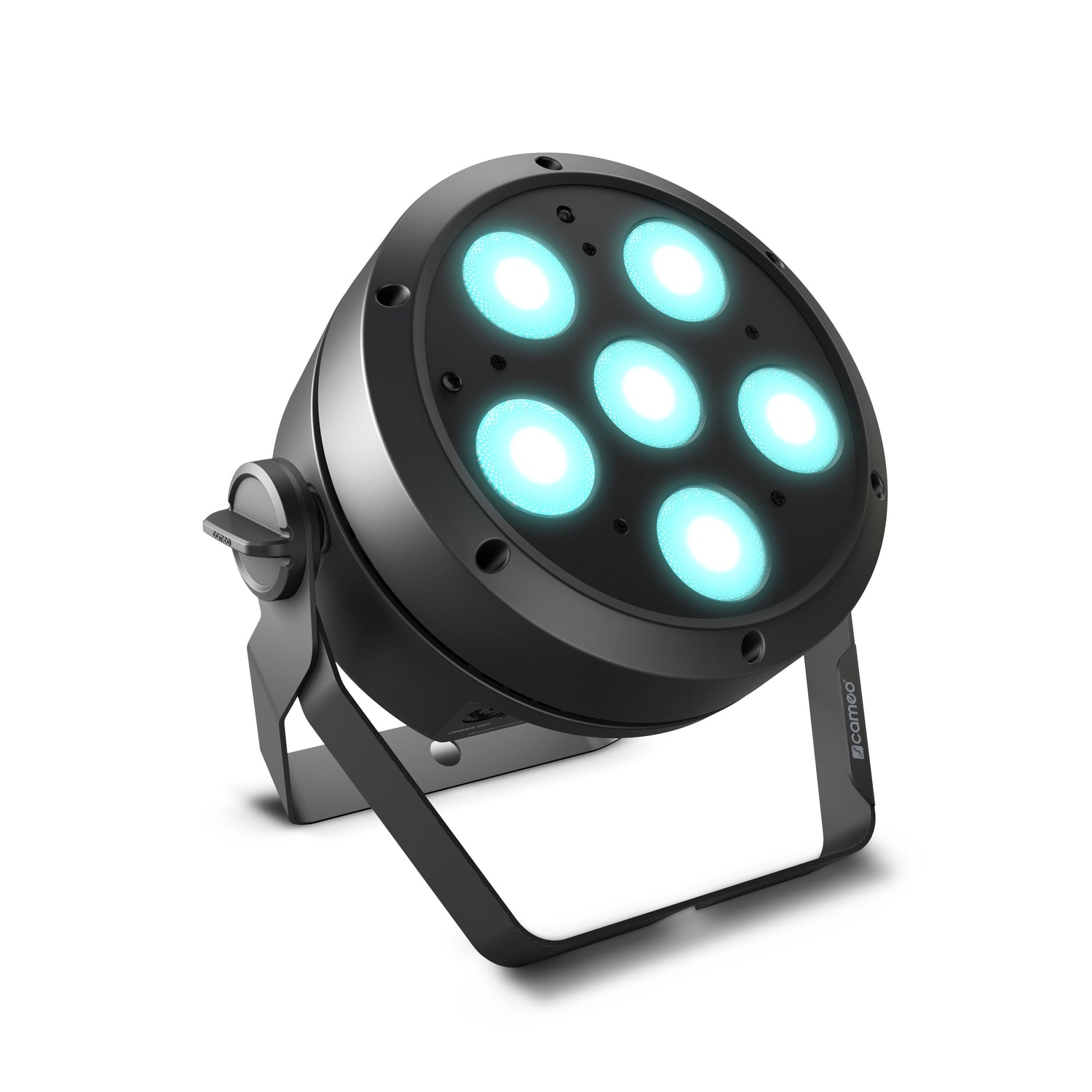

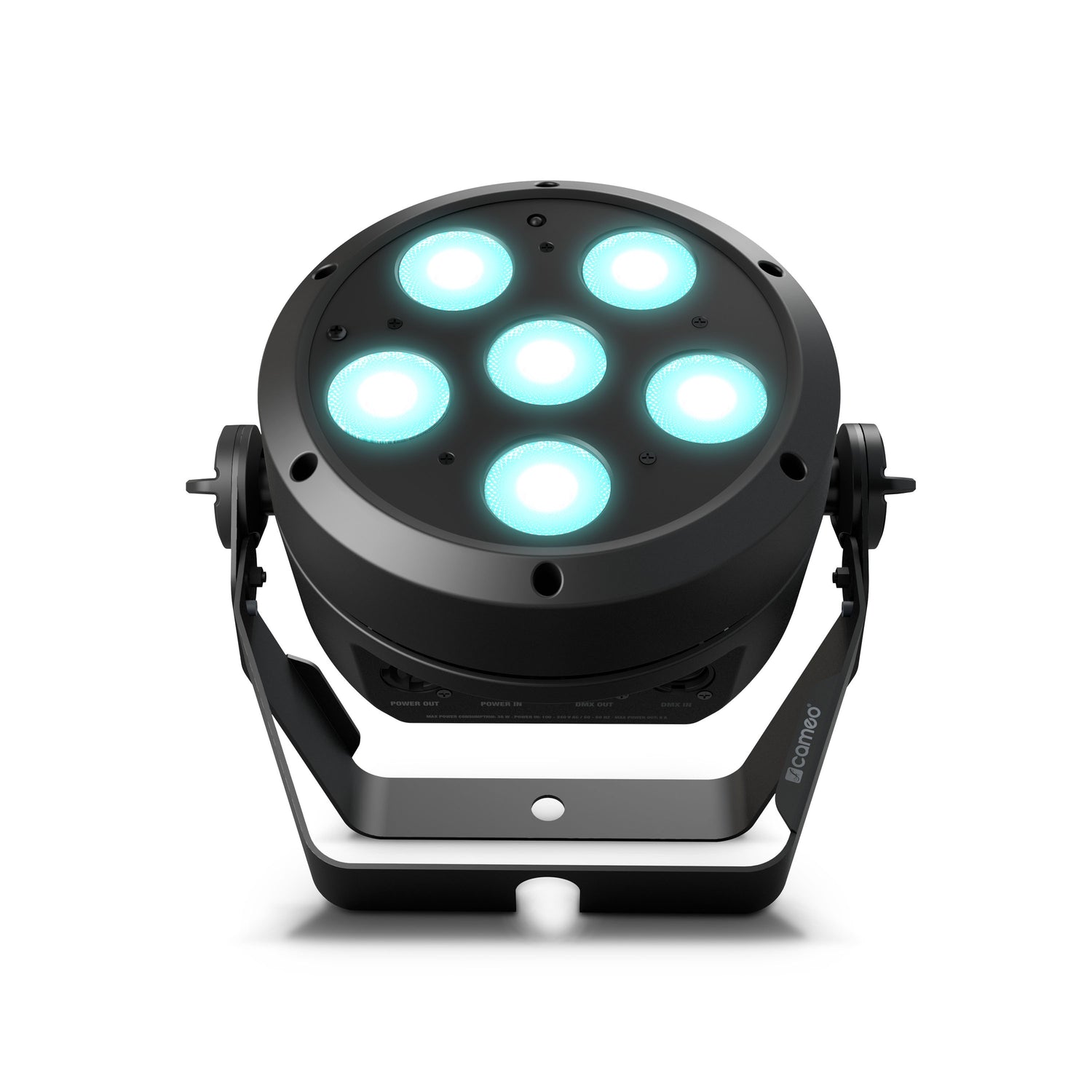

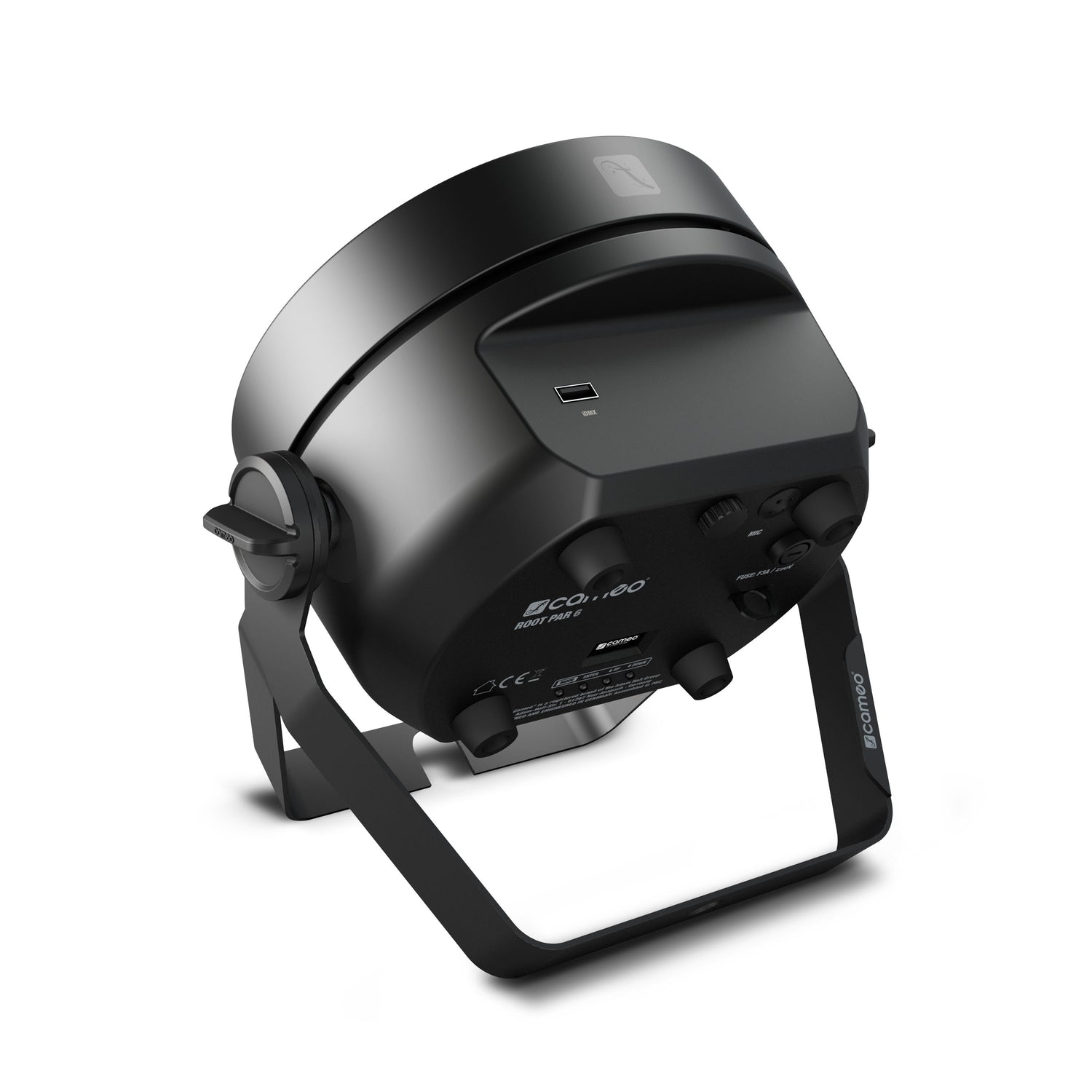

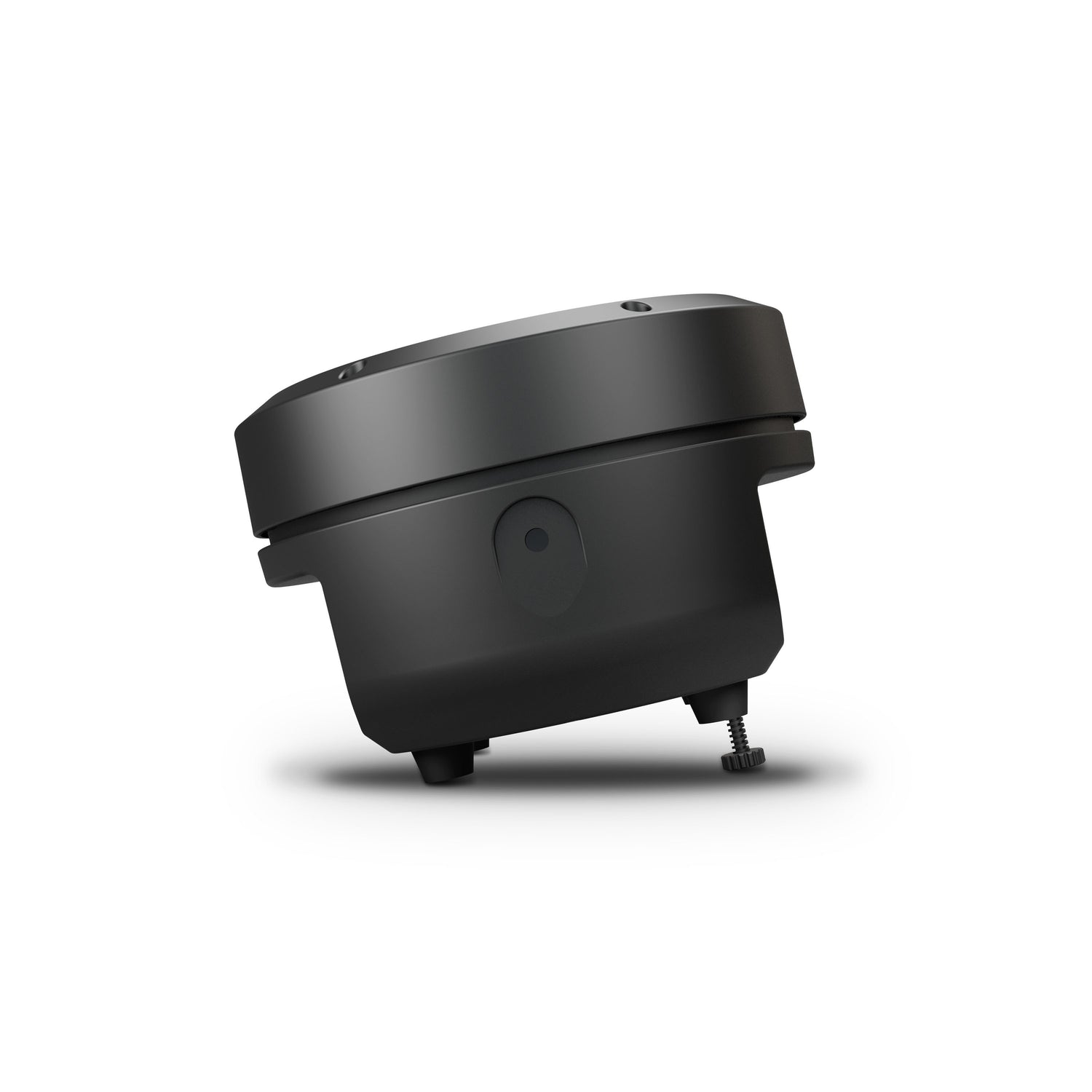

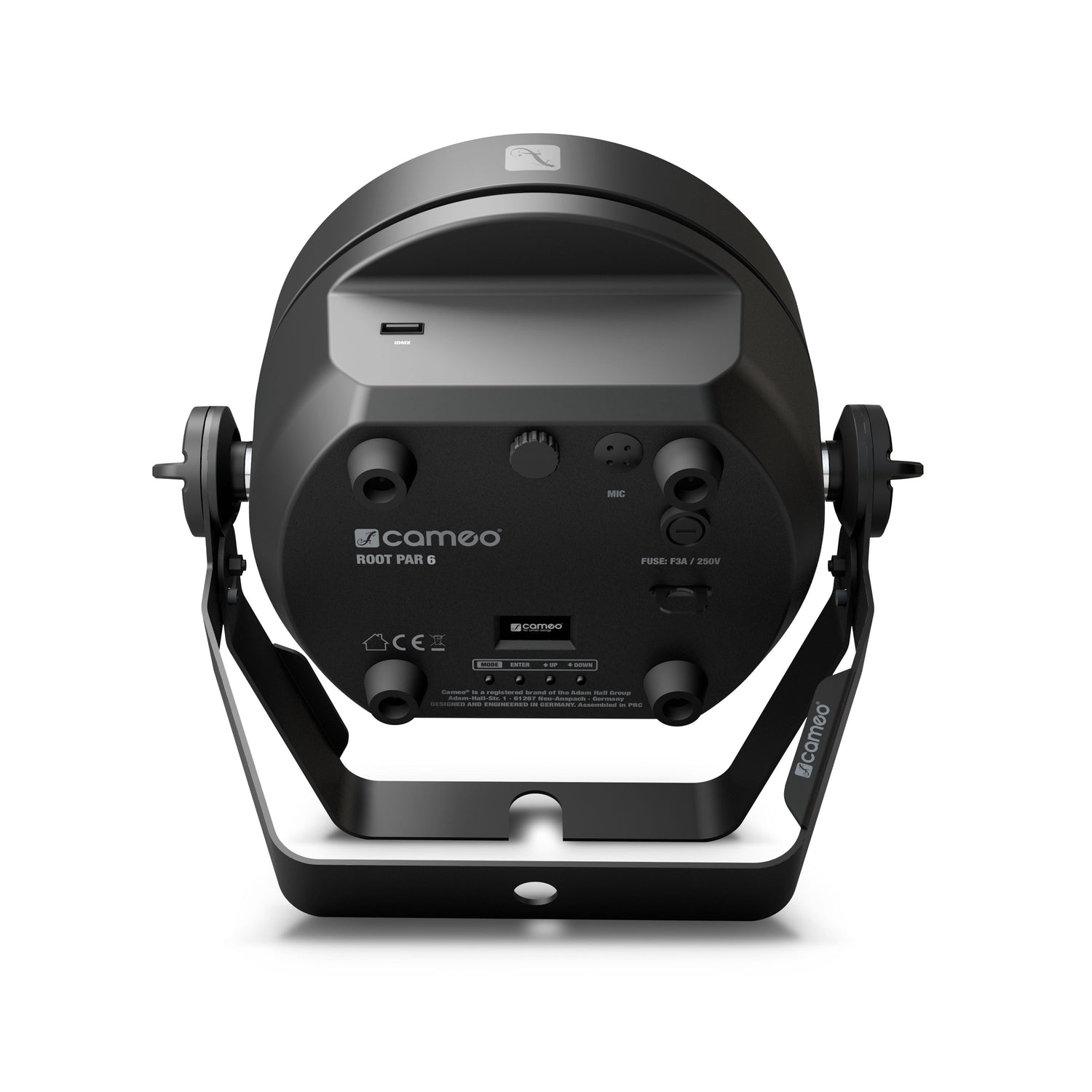

Cameo ROOT PAR 6

• Powerful 6 x 12 W "hex-colour mix" LED PAR-spot with 1800 lm light output
• RGBAW-UV colour mix
• DMX and power input and output for daisy-chaining multiple units
• PowerCON
• Configuration via OLED display
• Built-in microphone for sound control
• USB port for iDMX® stick for wireless DMX connection via W-DMX
• Flat, compact ABS housing with rubber feet
• Double mounting bracket included

Product type

LED PAR Lighting

Colour spectrum

RGBWA + UV

Number of LEDs

6

LED type

12 W

LED PWM Frequency

650 Hz, 1530 Hz, 2150 Hz, 4000 Hz

Dispersion

36 °

DMX input

3-pole male

DMX output

3-pole female

DMX Functions

colour macro , Dimmer , Dimmer Fine , DMX Delay , RGBWA + UV , sound sensitivity , Speed Selection , strobe

Control

DMX512 , IR Remote Control

Standalone modes

Auto programs , Colour presets , Loop , sound programs , Static , User Colours

Controls

Down , Enter , Mode , Up

Indicators

OLED Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

58 W

Power connector

Blue Power Twist , White Power Twist

Housing material

ABS plastic

Cabinet colour

Black

Cooling

Convection

Illuminance

10700 lx @ 1 m

Luminous flux

1800 lm

Fuse

F3AL / 250 V

Operating Temperature

0 - 40 °C

Width

195 mm

Height

133 mm

Length

195 mm

Weight

1,2 kg

Accessories (included)

Mounting bracket , Power cord
