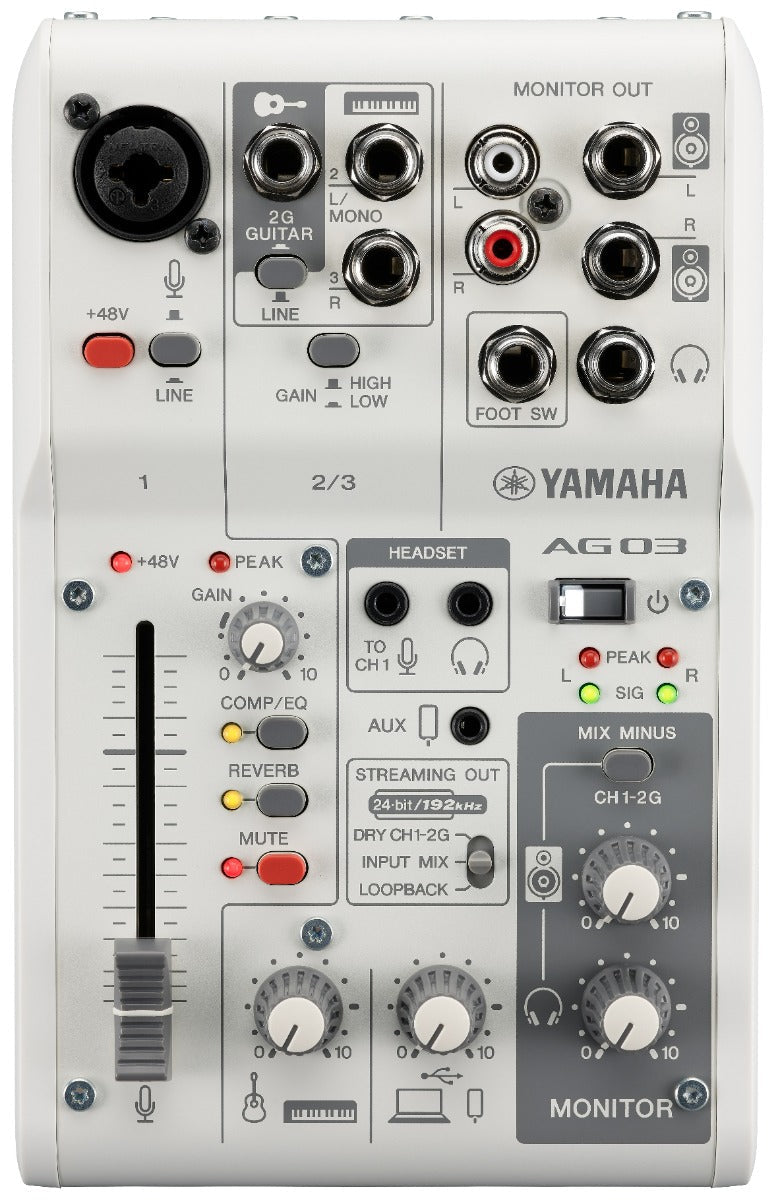

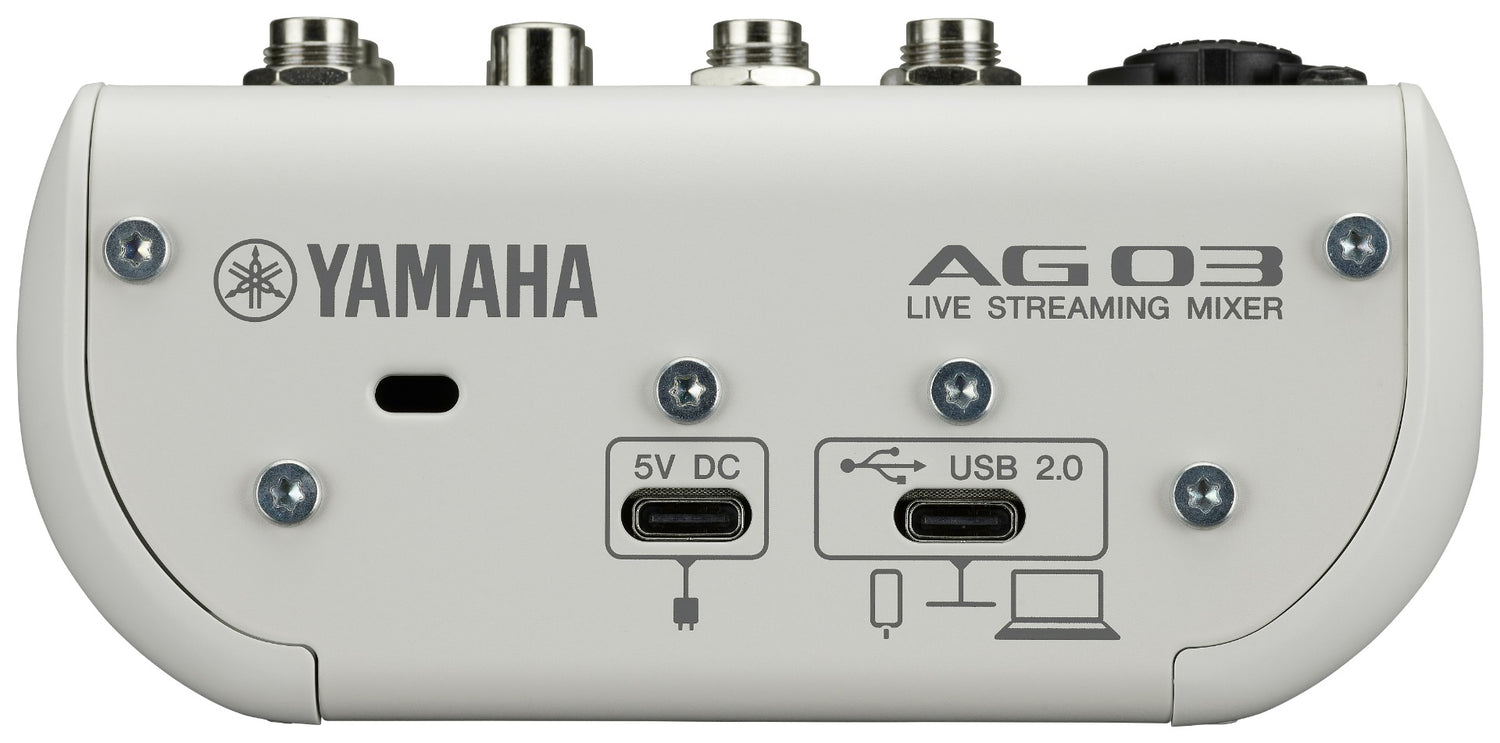

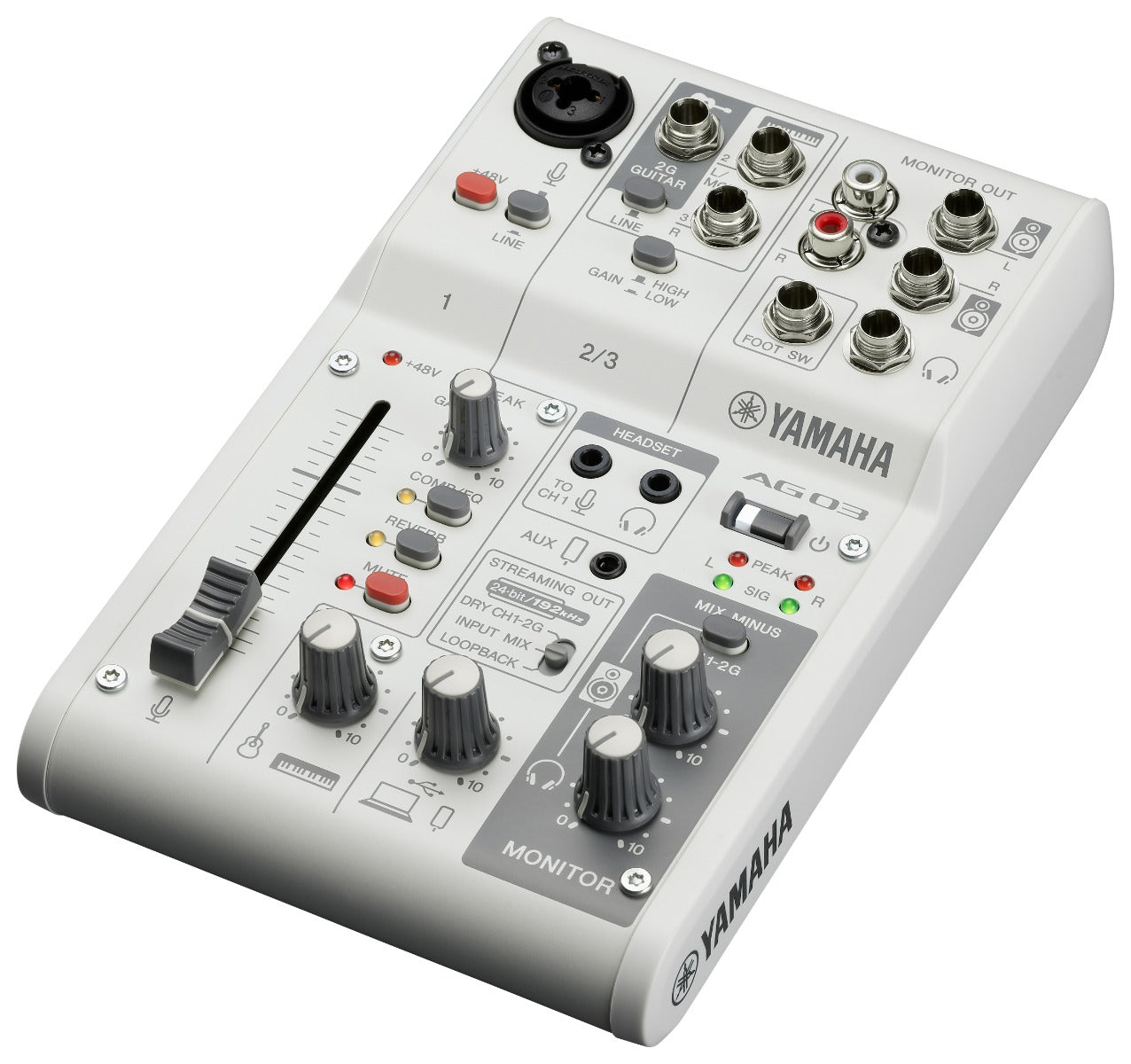

Yamaha AG03 MkII Live Streaming Mixer (White)
Descripción
Descripción
- Infinite live streaming mixer - produced by Yahama
- Easy to use
- Plenty of adjustment options - optimize the sound to your liking simply!
Yamaha AG03 MkII Live Streaming Mixer (White)
- High-quality live streaming mixer
- Comprehensive mixer - still, very user-friendly
- Created by Yahama - sets the industry standard
- 'AG controller' allows you to control the mixer from any connected device
- Compact design
Especificaciones
Especificaciones
-
Weight (kg)
More specifications
More specifications
Input channels:
Mono[MIC/LINE]: 1 - Combo (microphone, +48 V phantom power/line), 3.5 mm (1/8") stereo mini (headset microphone, plug-in power) *CH1 input and headset microphone cannot be used simultaneously
Stereo[LINE]: 1 - Stereo Line/Guitar input (mono)
Smartphone: 1 - 4-pin mini input/output (TRRS)
USB: 1
Output channels:
PHONES: 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
Smartphone: 1 - 4-pin mini input/output (TRRS)
MONITOR OUT: 2 - L/R Stereo: Phone, RCA
USB: 1
Bus: 1 Stereo
Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
Built-in processors
USB
USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 compatible, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
USB DC Power Input: 1 - Type-C, 5 V DC, 900 mA
General Specifications
Power Requirements: 5 V DC, 900 mA
Power Consumption: 4.5 W
Dimensions: W 126 mm (5.0") H 63 mm (2.5") D 201 mm (7.9")
Net Weight: 8 kg (1.8 lbs)
Included Accessories:0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Other: Operating Temperature: 0 to + 40 ?
