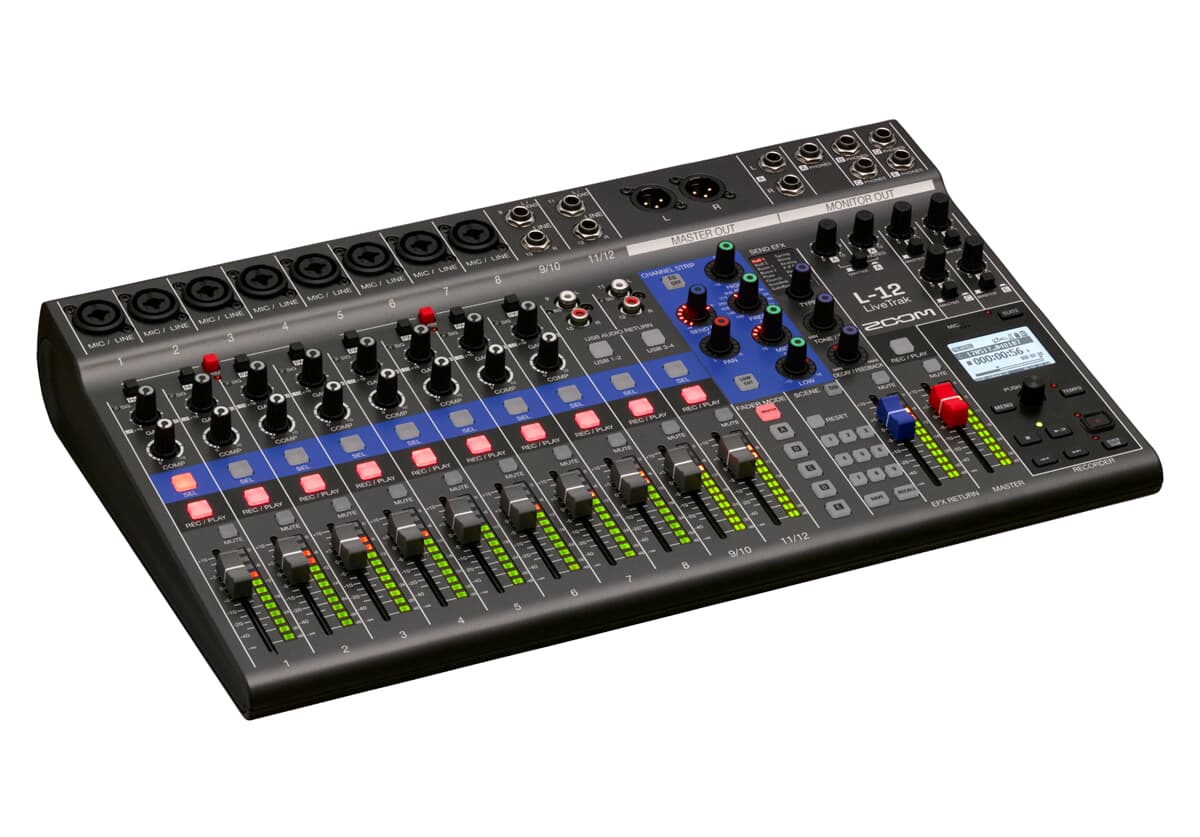

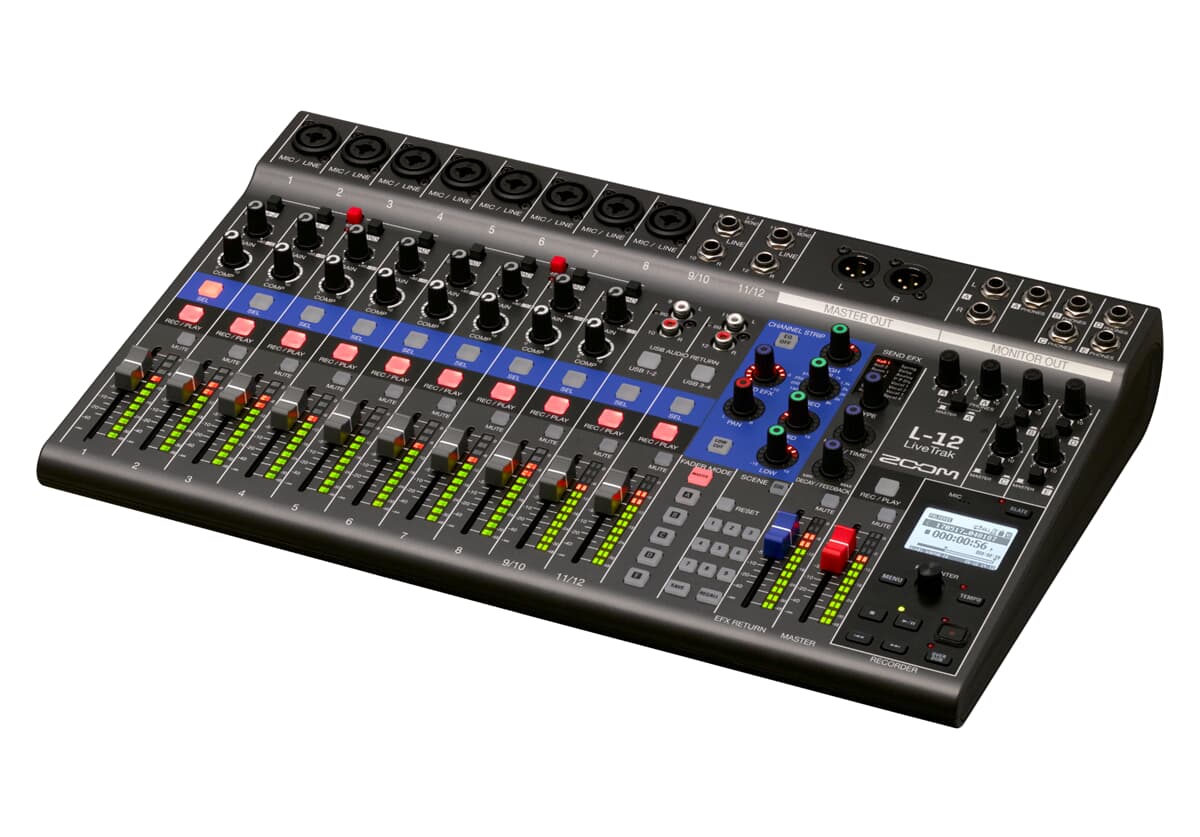

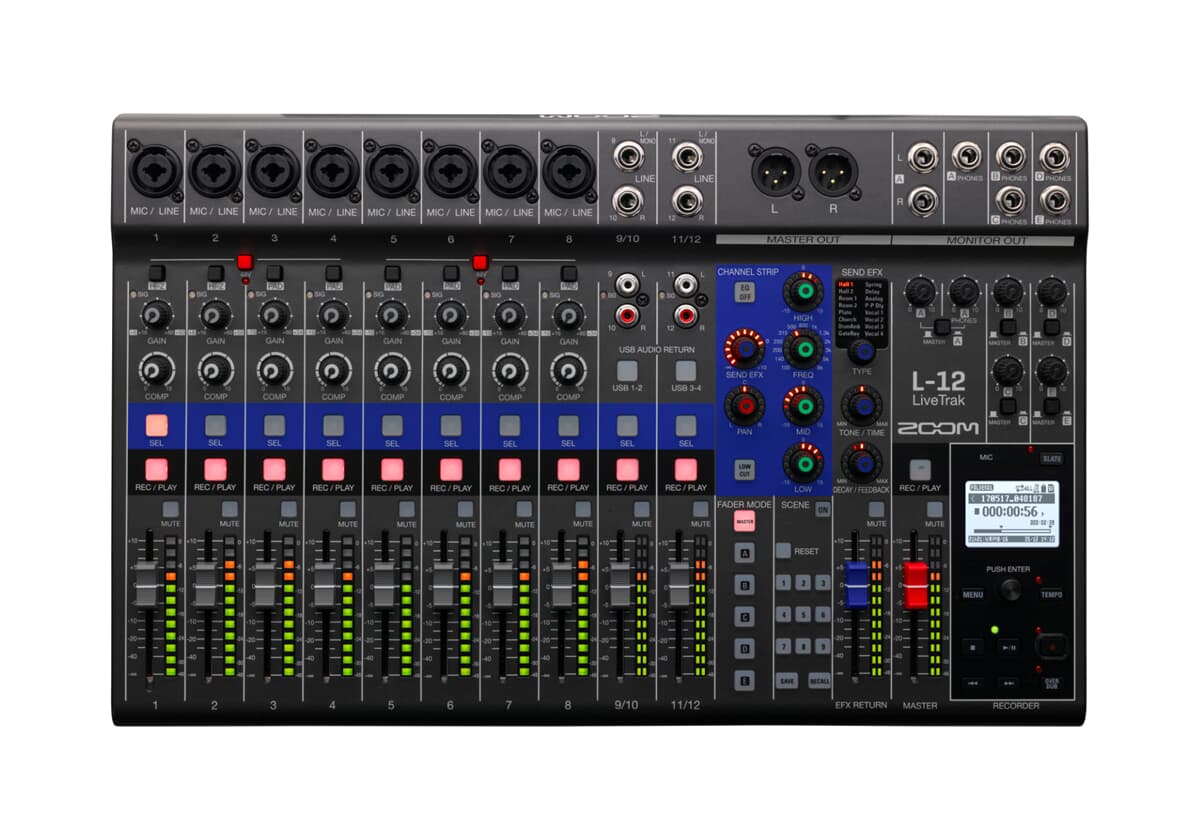

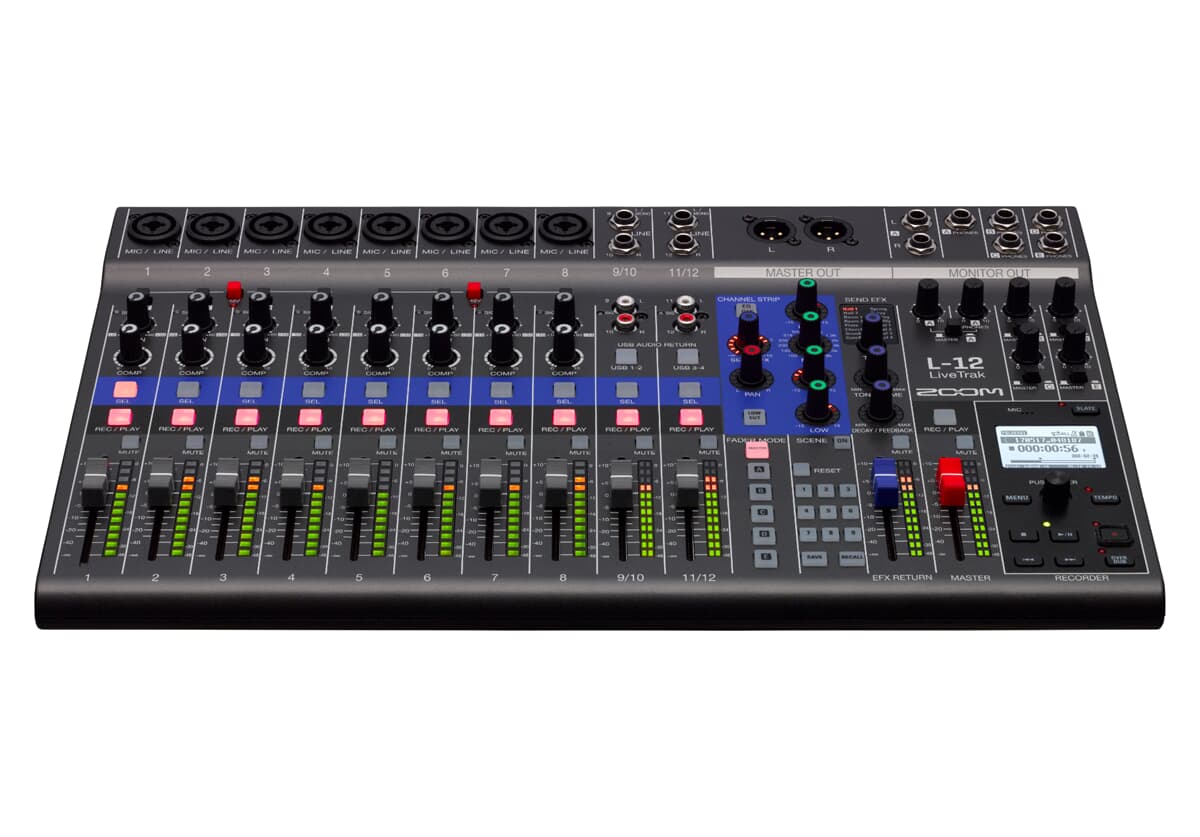

Zoom LiveTrak L-12 Digital Mixer

• LiveTrak L-12 for mixing, recording, monitor mixing, playback, remix and audio interface
• High quality preamps
• 5 individual headphone monitor mixes
• 12 channels: 8 combo xlr/jack and 2 TS line/rca stereo inputs
• Hi-Z function on channels 1 and 2, +48V phantom power on 1-4 and 5-8
• Record up to 14 tracks at once, 12-track playback
• Recording format in 44.1/48/96 kHz, 16/24-bit, mono/stereo Wav format
• Stylish LCD display and user-friendly interface
• Can be connected via USB to computer and used as 14 inputs / 4 outputs audio interface
• Built-in metronome
• Auto-record

Zoom LiveTrak L-12 Digital Mixer

• LiveTrak L-12 is a digital mixer that does it all: mix, record, monitor mix, playback, remix, audio interface.
• Mix and record in high resolution through advanced high-quality preamps, either via LiveTrak as a stand-alone or connected to MAC, Windows or iOS as an audio interface.
• You can mix a live recording while recording it on 12 channels to SD card, and with the option of 5 individual headphone monitor mixes.
• Top shelf mic preamps with -128 dBu EIN and +60 max input gain.
• 12 channels: 8 combo xlr/jack and 2 TS line/rca stereo inputs.
• Hi-Z function on channels 1 and 2, +48V phantom power on 1-4 and 5-8.
• Record up to 14 tracks at once, 12-track playback.
• Recording format in 44.1/48/96 kHz, 16/24-bit, mono/stereo Wav format.
• Recording media: SD, SDHC or SDXC cards up to 512 Gb.
• Via select buttons, each channel can be switched to its own 3-band mid-parametric Eq, low-cut, pan, plus 16 adjustable effects.
• 1-button compressor for each channel strip 1-8
• Stylish LCD display and with user-friendly interface.
• Can be connected via USB to computer and used as 14 inputs/4 outputs audio interface.
• Save/recall functions.
• Built-in slate microphone for talk-back.
• Built-in metronome.
• Auto-record
• Transfer of projects and audio files to a USB flash drive in USB Host mode.

Inputs and outputs

Microphone inputs  8
Input channels 12
Stereo inputs  1to 2
Monitor outputs  4

Tracks

Number of tracks 12
Number of tracks for simultaneous recording 12

Options

Digital outputs None
Phantom power supply Yes
Battery mode possible No
USB Yes
built-in microphone No
Bus-Powered No
19" Design No
Hi-Z connections Yes
integrated metronome Yes
Rhythm machine No
Dynamic processor Yes
Audio-Interface  Yes
incl. DAW software No
Network connection Yes

Memory

Storage mediaSD/ SDHC / SDXC Card
Maximum capacity storage media 512 GB

Version

EU Version
