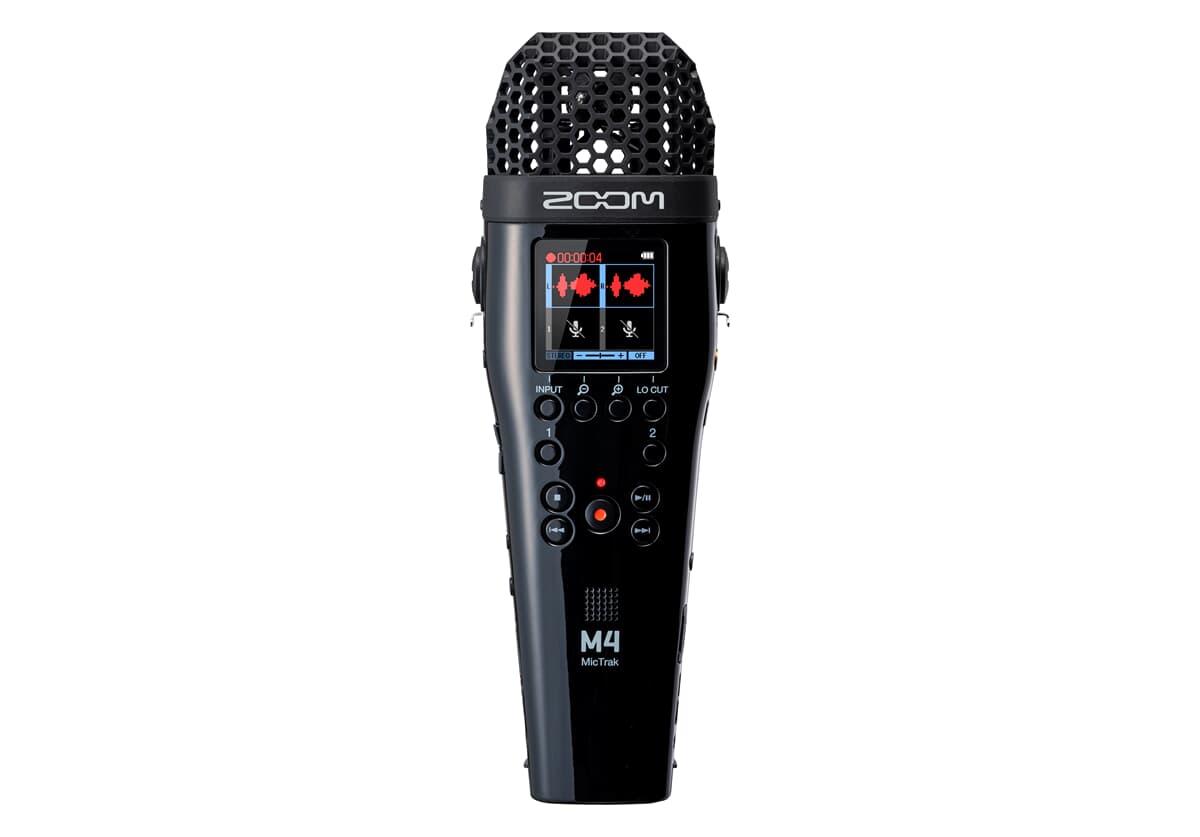

Zoom M4 MikTrak Recorder

• Portable recorder with 32-bit resolution
• Built-in time code generator for synchronization with video
• 4-track recording - perfect for musicians and filmmakers
• X/Y microphone with protective grill
• Stylish colour LCD screen
• Runs on 4 x AA batteries for up to 18 hours of use
• Minimal noise when you hold it while recording
• Normalisation function
• Headphone output for monitoring
• Built-in speaker for playback
• Pre-record function in 6 seconds

Zoom M4 MikTrak Recorder

• Stylish portable recorder with 32-bit resolution and built-in time code generator for easy synchronisation with video.
• Innovative and compact in size with 4-track recording capability - perfect for musicians and filmmakers.
• X/Y microphone with protective grill.
• 4-track recording with L+R and 2 XLR/combo inputs.
• Stylish colour LCD screen.
• Time code generator (in-out) for video synchronisation.
• Runs on 4 x AA batteries up to 18 hours of use.
• 32-bit float USB microphone function for Mac/Windows and iOS/Android.
• Enhanced coating ensures less noise when holding while recording.
• Smart normalize function that automatically adjusts the volume of your recordings to the optimum, so you don't have to spend time on it afterwards.
• Headphone output for monitoring.
• Built-in speaker for playback.
• Pre-record function in 6 seconds.
• RC4 remote control can be used to control M4 up to 5 meters away (purchased separately).
• Power supply can be purchased separately (Zoom AD-17).

• USB-C connector (2.0)
• USB bus power supported
• 2x XLR/jack combo sockets with 48V phantom power
• Recording media
  • 4GB-32GB microSDHC cards
  • 64GB-1TB microSDXC cards
• Built-in loudspeaker
• Headphone jack
• Line-out
• Time code in/out
• Connection for Zoom RC4 remote control (not included)
• Recording format
  • 44.1/47.952/48/48.048/96/192kHz (48kHz in audio interface mode)
  • 32-bit float mono/stereo BWF and iXML

• Quick Guide
• Windscreen

In- and outputs
Microphone inputs 2
Digital inputs None
Analog inputs 4
Analog outputs 1
Headphone outputs 1
Digital outputs None
Tracks
Number of tracks 4
Number of tracks for simultaneous recording 4
Options
built-in speaker Yes
Phantom power supply Yes
Limiter No
Battery mode possible Yes
Effects No
Auto-Gain No
Voice Guide No
Internal rechargeable battery No
Touchscreen No
USB Yes
built-in microphone Yes
Display Yes
Memory
Storage media Micro SD / SDHC / SDXC Card
Maximum capacity storage media 1 TB
Other
Max. Sampling rate 192 kHz
