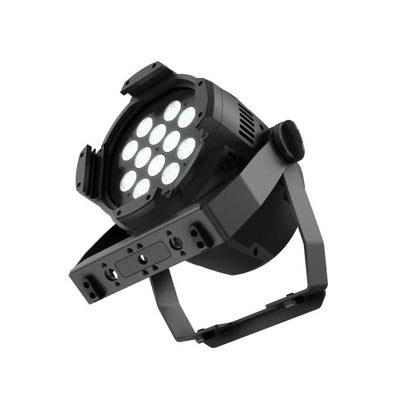

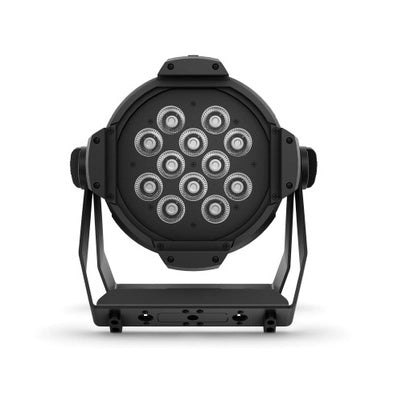

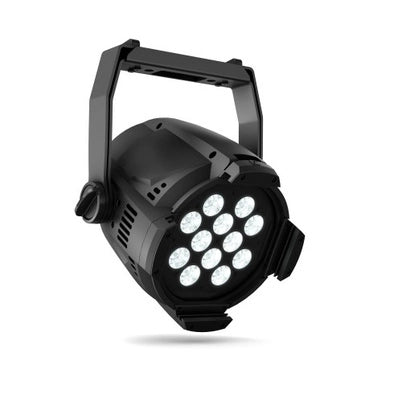

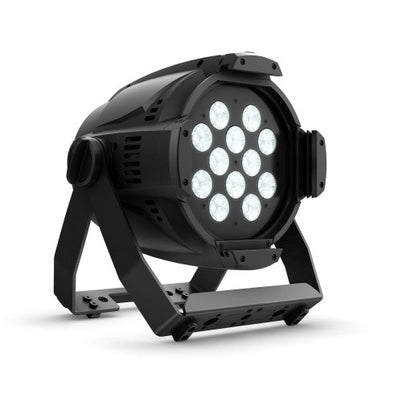

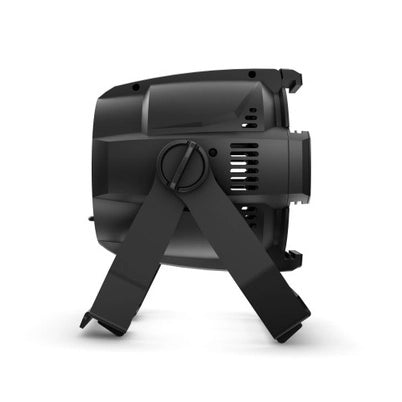

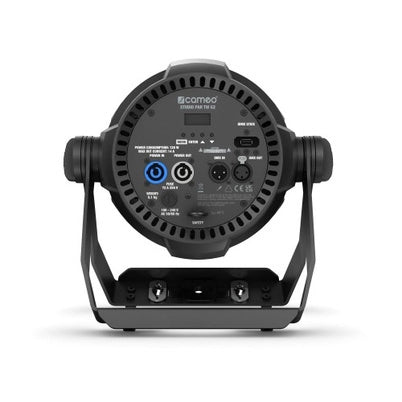

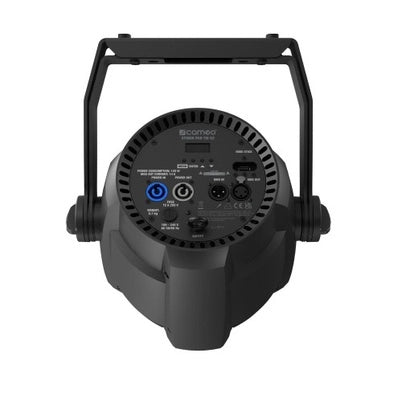

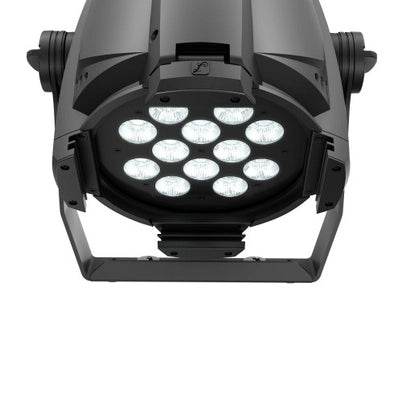

Cameo STUDIO PAR TW G2

• Cameo Studio PAR G2 LED is a versatile parlamp
• Great user experience - easy to connect and adjust
• Clean and bright light without complications

Cameo STUDIO PAR TW G2 LED Lamp

• Cameo W-DMX 3-in-1 Tunable White LED is a compact and powerful LED lamp that provides a brightness of 4,150 lumens
• Variable white light colour (2,800-6,800 K) and a high colour rendering (CRI> 95).
• Many working optimisations, including selectable pulse width modulation (up to 25 kHz) for flicker-free drift
• Colour filter settings can be easily mounted with the intuitive hold-down mechanism.
• Control and configuration is easy via the OLED display,
• PowerCON compatible power connector

Product type: LED PAR lighting
Type: Studio PAR
Colour spectrum: Tunable White, Warm White/Cold White
Number of LEDs: 12
LED type: 3i1 WW/CW/A 10 W SMD LED
Colour temperature: 2800 - 6800 K
Luminous flux: 4150 lm
Spread: Beam angle: 18°, Field angle: 35°
Lens: 12 x acrylic lens
LED PWM frequency: 650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 18900 Hz, 25000 Hz
Dimmer resolution: 16 bit
Dimming curves: exponential, linear, logarithmic, quadratic
Strobe: 0 - 20 Hz
CRI: >95 Ra
DMX input: 3-Pin, iDMX slot
DMX output: 3-Pin
DMX mode: 1-channel, 11-channel, 2-channel, 3-channel, 4-channel, 5-channel, 8-channel
DMX functions: CW, Device Settings, Dimmer, Dimmer Curve, EZ-Chase, Strobe, WW
Standalone Modes: Auto Mode, Static
System Settings: Defaults, Dimmer, Dimmer Response, Display, Fan Mode, LED PWM Frequency, Signal Error, Wireless
Controls: 4 x buttons, down, enter, menu, up
Indicators: OLED display
Relative humidity: < 80%, non-condensing
Protection class IP: IP20
Ambient temperature (drift): -10 - 40 °C
Cooling: Convection, low-noise fan
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power connector: PowerCon Blue I/O
Fuse: T2A
Max. Power consumption: 115 W
Housing: Die-cast aluminium
Cabinet finish: Powder coated
Cabinet colour: Black
Height: 360 mm
Width: 310 mm
Depth: 250 mm
Weight: 5.1 kg
