Cameo PHANTOM H2

• Compact Hazer with 0.8 L tank and 2-colour level indicator.
• Highly efficient heating element (600 w)
• Fast heating (approx. 2 minutes)
• Output volume: 226 m³/min (max)
• Uses only 3.5 ml of smoke fluid per minute at 100% output performance
• Easy setting via LED display
• DMX or standalone
• Compatible with water-based hazer fluid
• Built-in over-heating protection

Cameo PHANTOM H2 Hazer

• Compact Hazer with 0.8 L tank and 2-colour level indicator.
• Highly efficient heating element (600 w).
• Fast heating (approx. 2 minutes).
• 0.8 L tank with 2-colour level indicator.
• Output volume: 226 m³/min (max).
• Uses only 3.5 ml of smoke fluid per minute at 100% output performance.
• Easy setting via LED display.
• DMX or standalone.
• Compatible with water-based hazer fluid.
• Tank can be removed, making refilling easy.
• Built-in over-heating protection.
• Adjustable output angle with deflector.
• Includes mounting bracket and remote control.

• Product Type: Hazer
• Type: Hazer
• Power: 600 W
• Output Volume: Approx. 226 m³/min
• Warm-up Time: Approx. 2 min
• Fluid Tank Capacity: 0.8 l
• Fluid Consumption: Approx. 3.5 ml/min

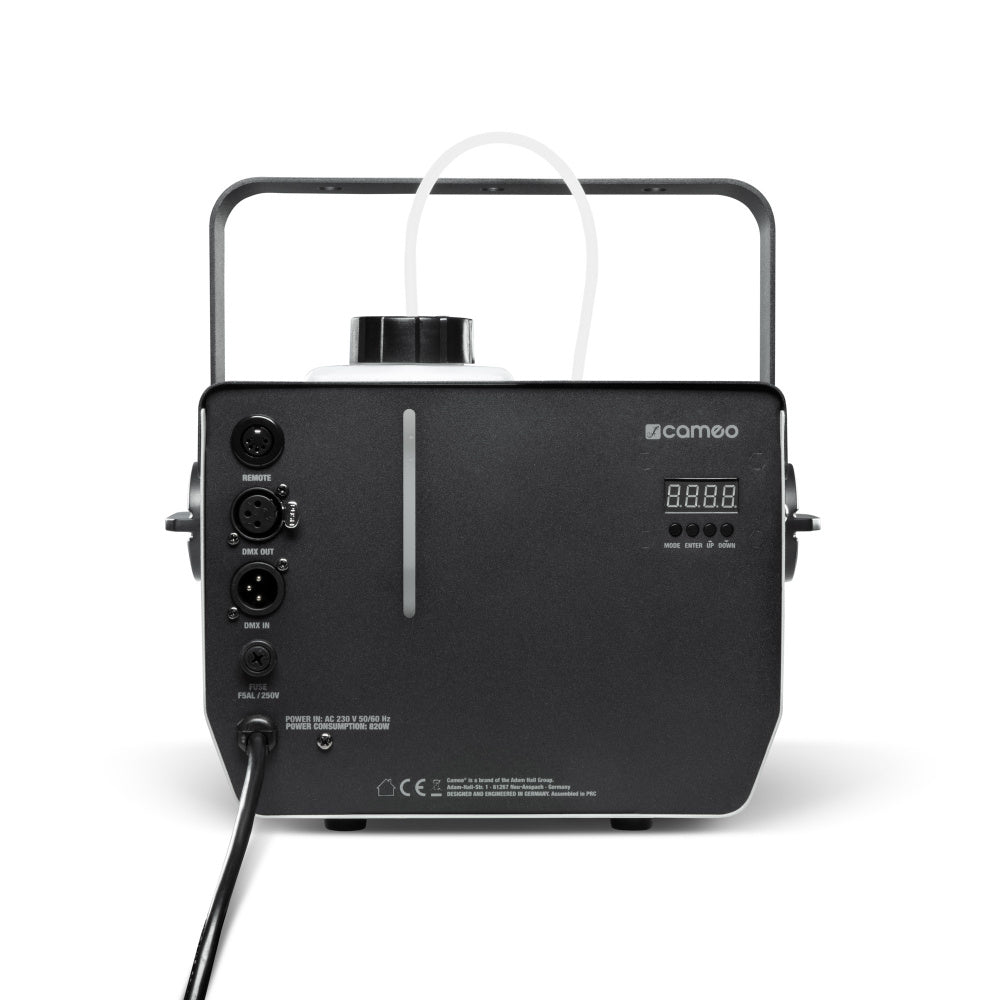

• Remote Connection: DIN 5-Pol male
• Remote Cable Length: 10 m
• Remote Functions: Interval, Output, Wind set
• DMX Input: XLR 3-pin male
• DMX Output: XLR 3-pin female
• DMX Mode: 2-channel
• DMX Functions: Fan speed, Haze emission
• Controls: Down, Enter, Mode, Up
• Indicators: 4-digit LED display
• Power Supply: 230 V AC / 50-60 Hz
• Fuse: F5AL / 250 V
• Power Consumption: 620 W
• Power Connector: CEE 7/7, Fixed connection cable
• Ambient Temperature (in operation): 5 - 40 °C
• Relative Humidity: < 85 %, not condensing
• Housing Material: Metal
• Cabinet Colour: Black, grey
• Width: 242 mm
• Height: 187 mm
• Depth: 275 mm
• Accessories (included): 4 rubber feet, Cable remote, canister
• Weight: 7.14 kg
