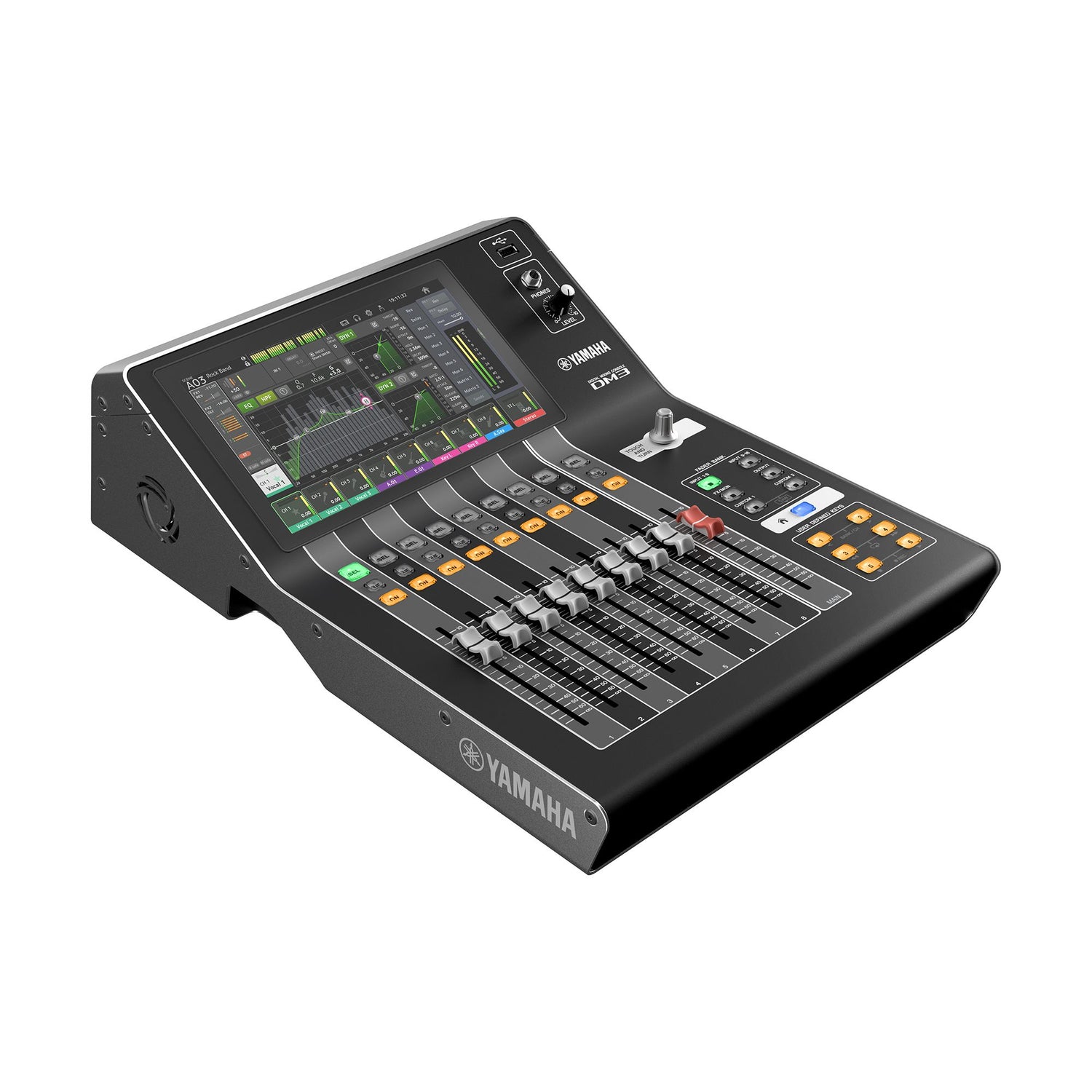

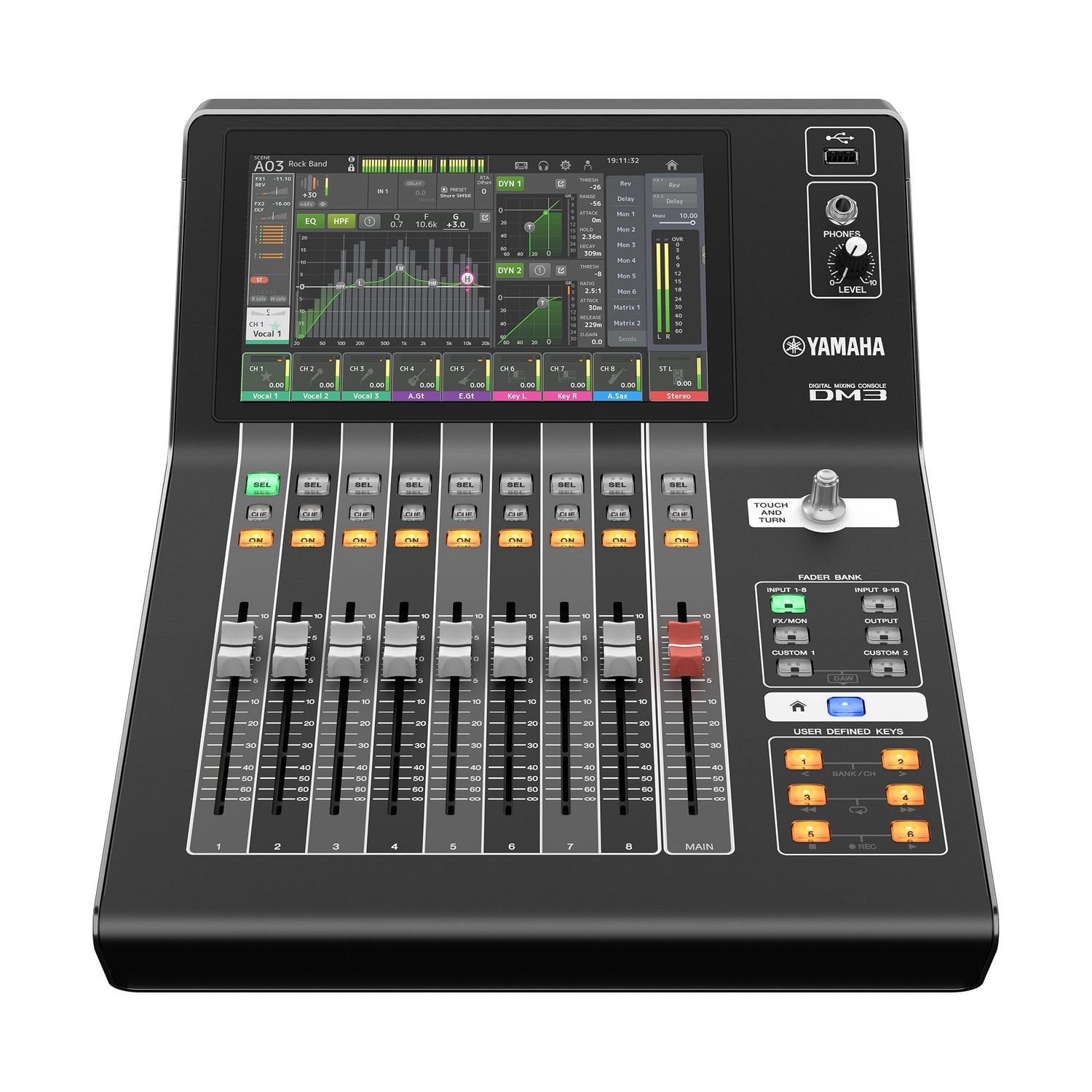

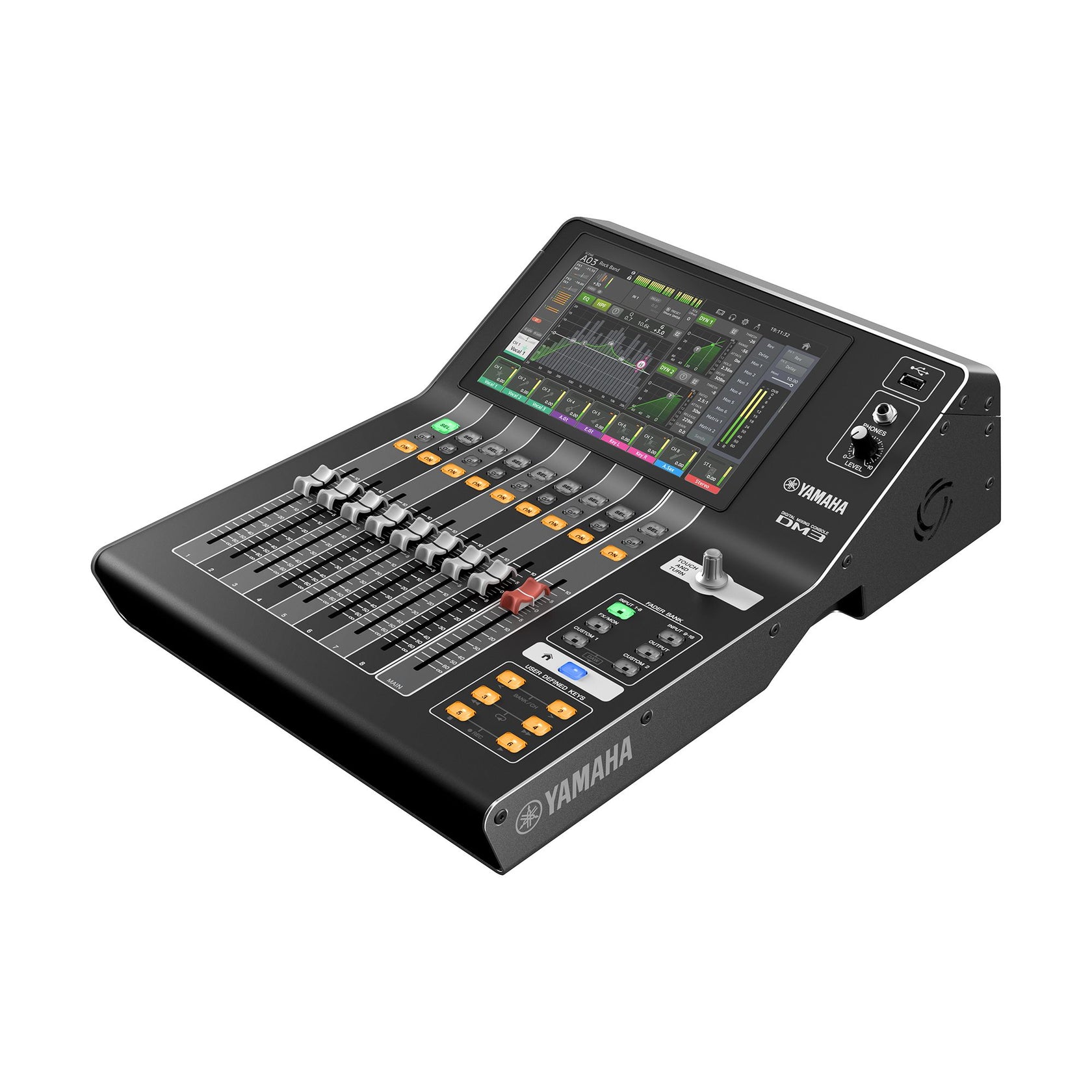

Yamaha DM3 Standard Digital Mixer

• Compact digital mixer with great versatility and many possibilities
• Ideal for a wide range of tasks - live mixing, recording, streaming and more
• Superb sound quality, quick and easy setup and operation
• Can be used as a classic digital mixer and as an audio interface for a wide range of DAWs
• You can also make simple two-track recordings via USB memory stick
• Two high-quality multi-effects processors give you all the effects you need
• QuickPro Presets make it quick and efficient to customize the mixer for a wide range of well-known microphone brands and outboard equipment
• Plenty of mobile apps make settings a breeze
• Cubase AI included
• Lightweight construction - easily transportable
• Available in two versions DM3 Standard and DM3 with Dante compatibility

Yamaha DM3 Standard Digital Mixer

• Compact digital mixer with great versatility and many possibilities.
• Ideal for a wide range of tasks - live mixing, recording, streaming and more.
• Superb sound quality, quick and easy setup and operation.
• Can be used as a classic digital mixer and as an audio interface for a wide range of DAWs, where you can control a wide range of commands in the DAW via the mixer.
• You can also make simple two-track recordings via USB memory stick.
• Two high-quality multi-effects processors give you all the effects you need.
• QuickPro Presets make it quick and efficient to customize the mixer for a wide range of well-known microphone brands and outboard equipment.
• Plenty of mobile apps make settings a breeze: DM3 Editor for making pre-concert settings. DM3 StageMix to remotely control the mixer from the stage and MonitorMix to create monitor mixes from the stage.
• Cubase AI included.
• Lightweight construction - easily transportable.
• Available in two versions DM3 Standard and DM3 with Dante compatibility.

• 8 + 1 fader configuration
• 9-inch multi-touch screen
• Input mixing channels: 16 mono + 1 stereo + 2 FX return
• Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)

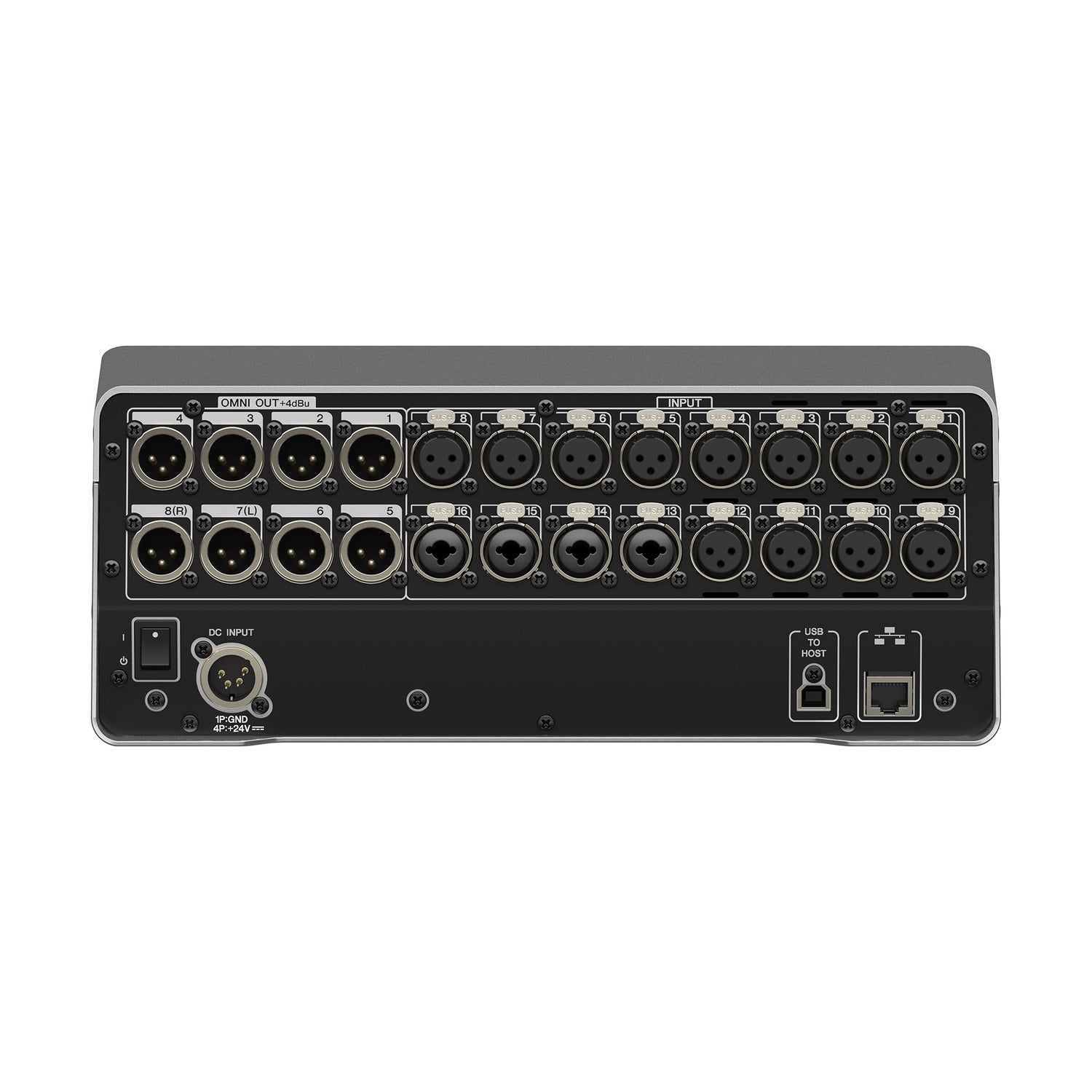

• Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
• USB: 18 inputs, and 18 outputs
• 8 DCA groups with Roll-out
• 18 Effects, and GEQ on Mix 1-6 and Stereo channels
• Sampling rate: 48kHz/96kHz
• Network: 1 (RJ-45)
• USB TO HOST: 1 (USB Type-B, USB2.0)
• USB TO DEVICE: 1 (USB Type-A)
• Phones: 1 (TRS Phones)
• Recording & Playback:
• PC/Mac Recording 18 track, Playback 18 track
• USB storage device Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory)
• Dimensions (W x H x D): 320 mm × 455 mm × 140 mm
• Net weight: 6.5 kg
