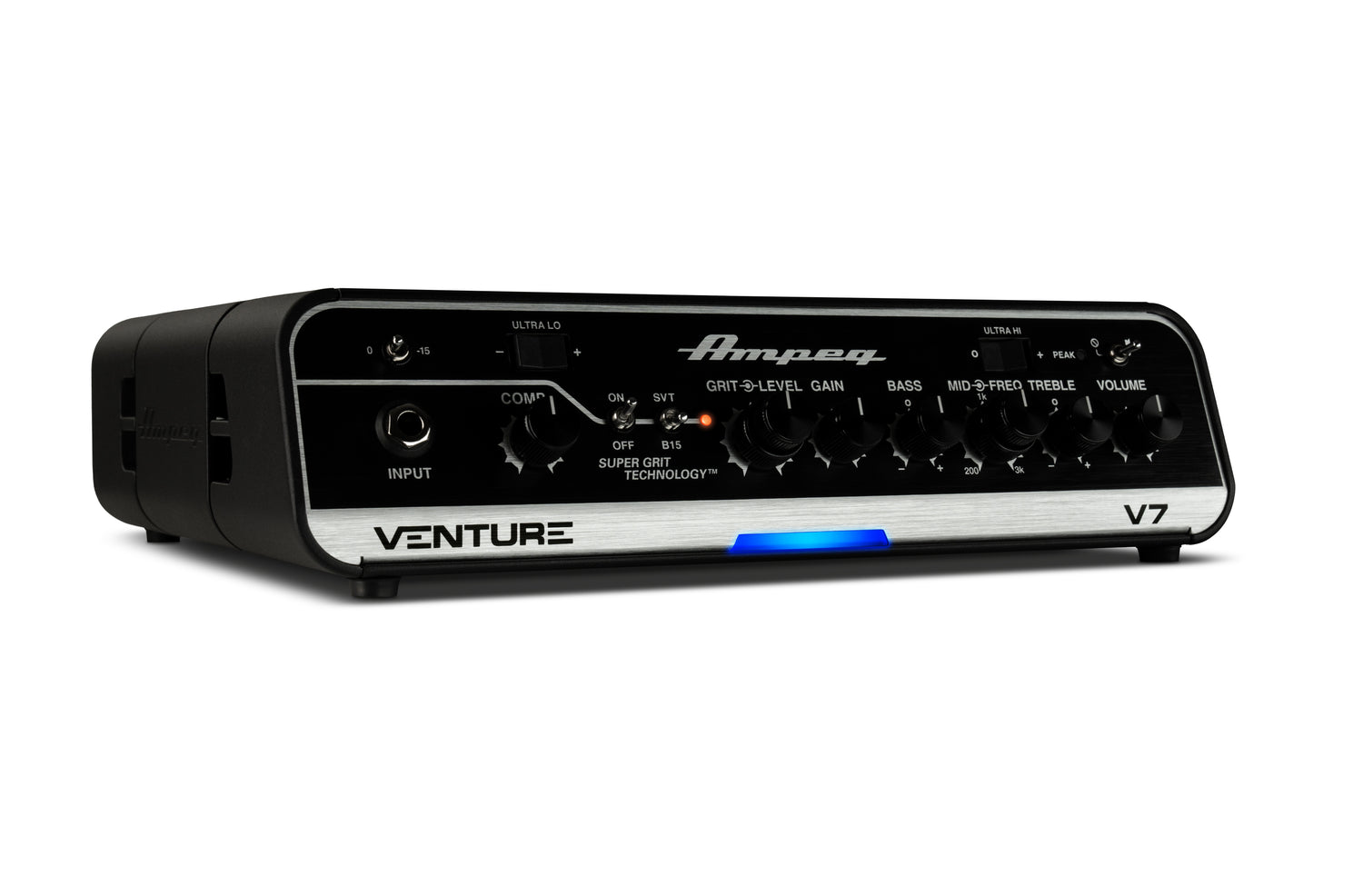

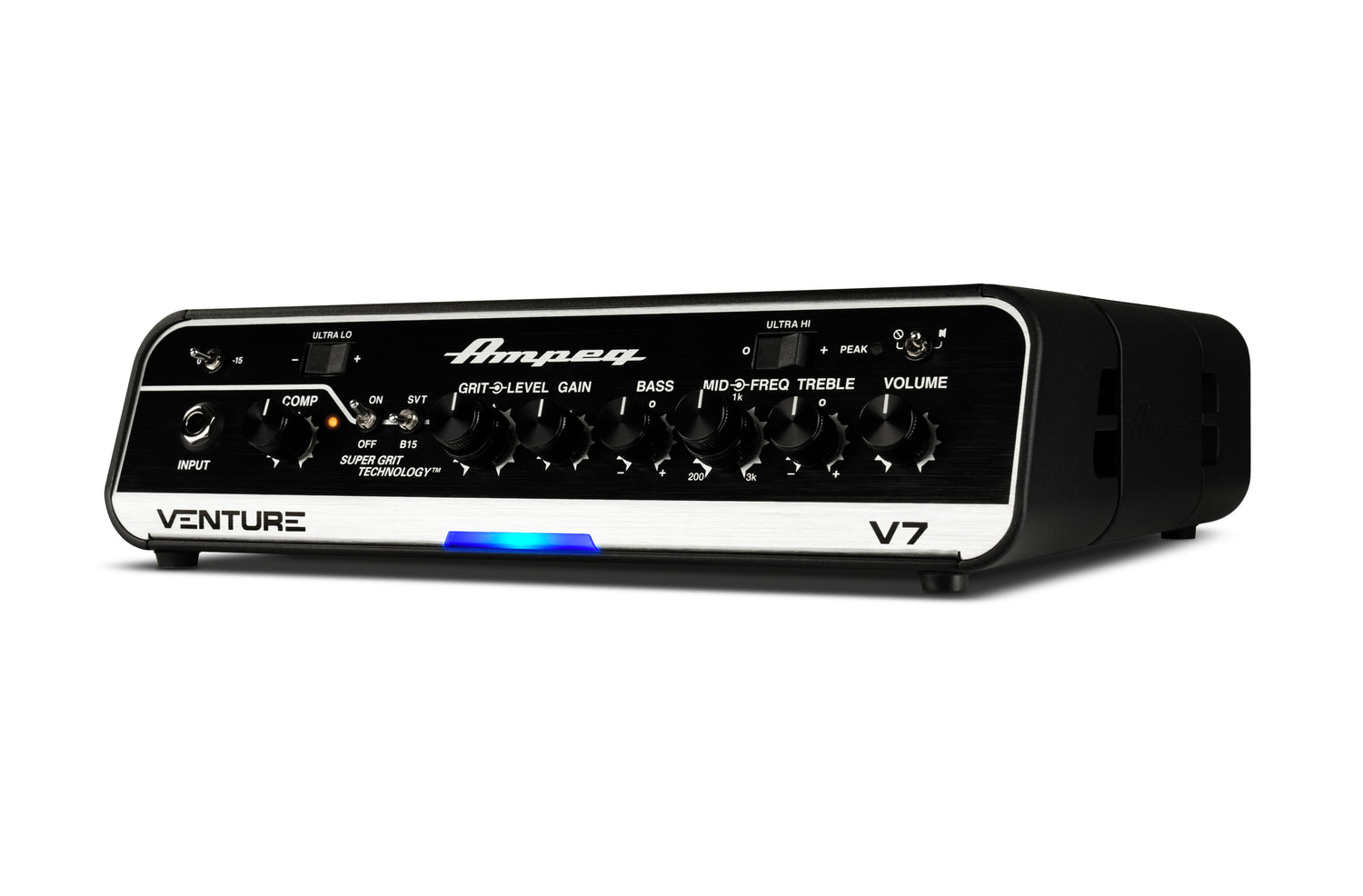

Ampeg Venture V7 Bass Amplifier Top

• Ampeg Venture V7 amplifier top with Legacy Preamp, 3-band EQ and sweepable mids
• 700 Watt @ 4 Ohms, Class D power section
• Ultra Hi/3-way Ultra Lo knobs
• SGT overdrive circuit with SVT and B15 voicings
• Built-in Variable Compressor
• Effects loop, XLR DI output, Auc input, Headphone output
• Preamp Out and Poweramp In

Ampeg Venture V7 Bass Amplifier Top

• Ampeg's Venture Series of amplifier tops and cabinets give you powerful, compact amplifier setups with great features.
• Great ease of use, intuitive controls and wide sonic versatility.
• The V7 top is the middle of the Venture family with the V3, V7 and V12 tops.
• 700 Watt @ 4 Ohms, Class D power section.
• Built-in Legacy Preamp with 3-band EQ and sweepable mids.
• Ultra Hi/3-way Ultra Lo knobs.
• Super Grit Technology (SGT) overdrive circuit with SVT and B15 voicings that can be controlled with AFS2 footswitch (sold separately).
• Built-in Variable Compressor.
• Effects loop, XLR DI output, Auc input, Headphone output.
• Preamp Out and Poweramp In.
• Neutrik speakON speaker outputs.
• Fits perfectly with the various enclosures in the Venture series.

Output Power Rating @ 1% THD (@ 4 Ohm) 100-240 VAC = 700W

Signal-to-Noise Ratio 80 dB (20 Hz-20 kHz unweighted)

Maximum Gain @ 1 kHz 60 dB

Input Impedance 1 Meg

Power Amp Class D - ICE power (switching)

Tone Controls Bass: +/-14 dB @ 40 Hz / Mid: +/-14 dB @ selected frequency / Treble: +17/-14 dB @ 4 kHz

Power Requirements 100-240 VAC, 50-60Hz, 1000W Max

Size (H x W x D) 3.07 x 11.42 x 10.78 in (78.1 x 290 x 273.8 mm)

Weight (approximate) 6.12 lbs, 3.10 kg
